Factory Direct · Est. 2012 · Dongguan, China

M12 5 Pin Connector
Manufacturer & Supplier

Direct from factory: IP67/IP68 rated M12 5-pin connectors for industrial automation, sensors, and PLC systems. Male & female, straight & angled, cable assembly & panel mount -- OEM/ODM welcome.

IP67 / IP68 A / B / D Coded 2 - 17 Pins PVC / PUR Cable CE · RoHS · UL MOQ Flexible
Request Free Quote Chat on WhatsApp
Reply within 12 hrs Free samples available OEM / ODM accepted

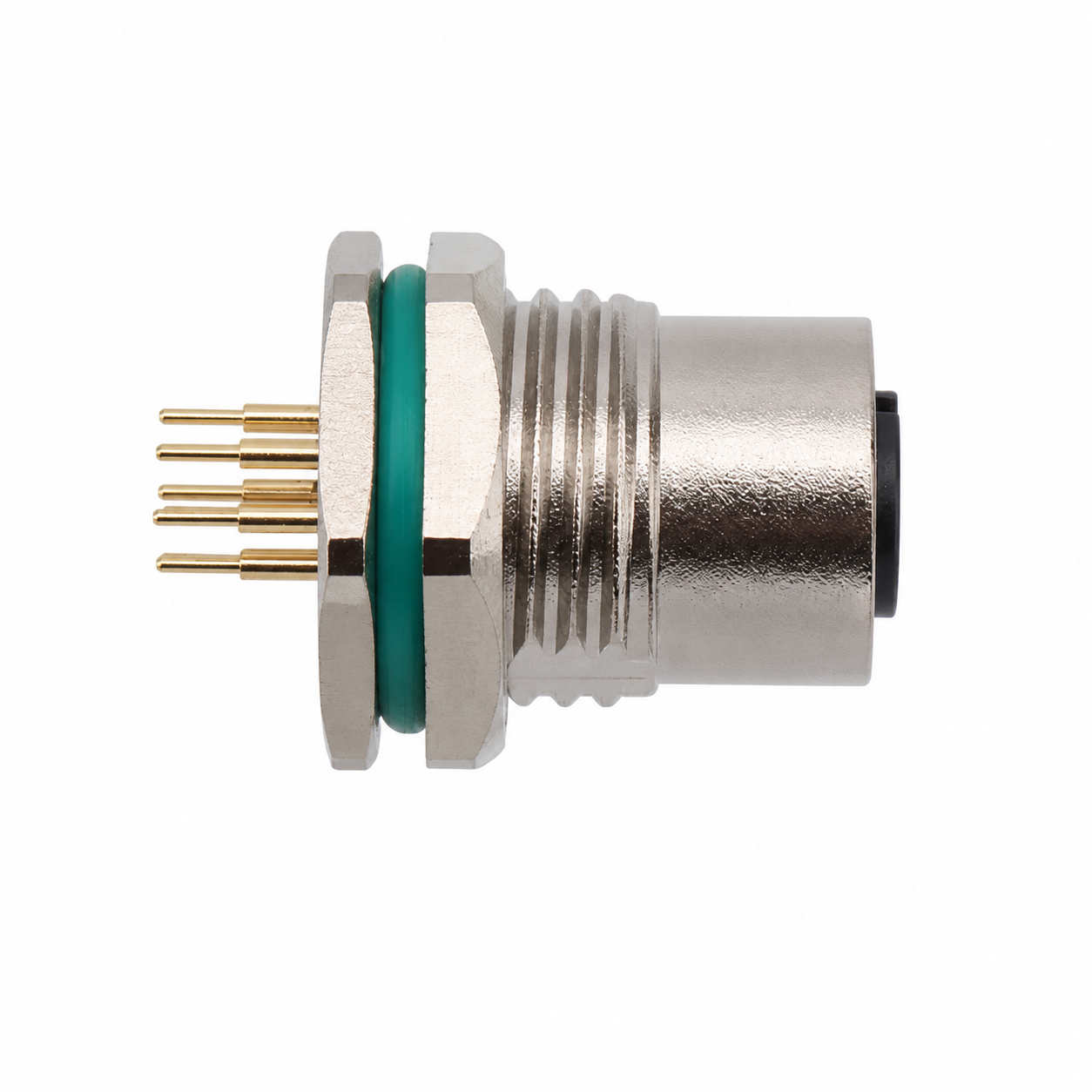

M12 5 Pin Connector - industrial waterproof connector

M12 5-Pin · IP67/IP68 · A/B/D Coded

Protection
IP67 / IP68
Precision
±0.01mm
Everything You Need to Decide

M12 5-Pin Connector -- Key Specifications

All the technical data, pin diagrams, and customization options buyers ask for before placing an order.

Standard Technical Parameters

Series M12
Pins 5 (A-coded / B-coded / D-coded)
Gender Male & Female
Shell Material Zinc alloy / Stainless steel / PA66
Contact Material Brass, Gold-plated
Sealing Material NBR / Silicone
Degree of Protection IP67 / IP68 (3 m / 24 h)
Insulation Resistance ≥ 100 MΩ
Contact Resistance ≤ 3 mΩ
Rated Voltage 250 V AC/DC
Rated Current 4 A per contact
Operating Temperature -25 °C ~ +85 °C
Insertion / Withdrawal Cycles ≥ 500 cycles
Cable Outer Diameter 4 - 8 mm (PVC / PUR)
Thread Specification M12 × 1

5-Pin Layout Diagram

1 2 3 4 5 A-Coded (5-pin)
1 2 3 4 5 B-Coded (5-pin)

Pin numbering follows IEC 61076-2-101. Custom coding and keying available on request.

Customization Options

🔌
Wiring Method
Screw / Spring / Solder / Crimp / PCB
🔩
Orientation
Straight / Angled (90°) / T-Type
🛡️
Shielding
Shielded or Unshielded
🔗
Mounting
Front / Rear / Panel Mount
📏
Cable Length
Custom (0.1 m - 20 m+)
🏷️
Labeling
Private label / OEM branding

Need the Full Technical Drawing?

Dimensional drawings, 3D models, and datasheet PDF available on request.

Request Drawing & Datasheet
Full Product Range

M12 5-Pin Connector Types

From cable plugs to panel receptacles -- we manufacture the complete M12 5-pin connector family.

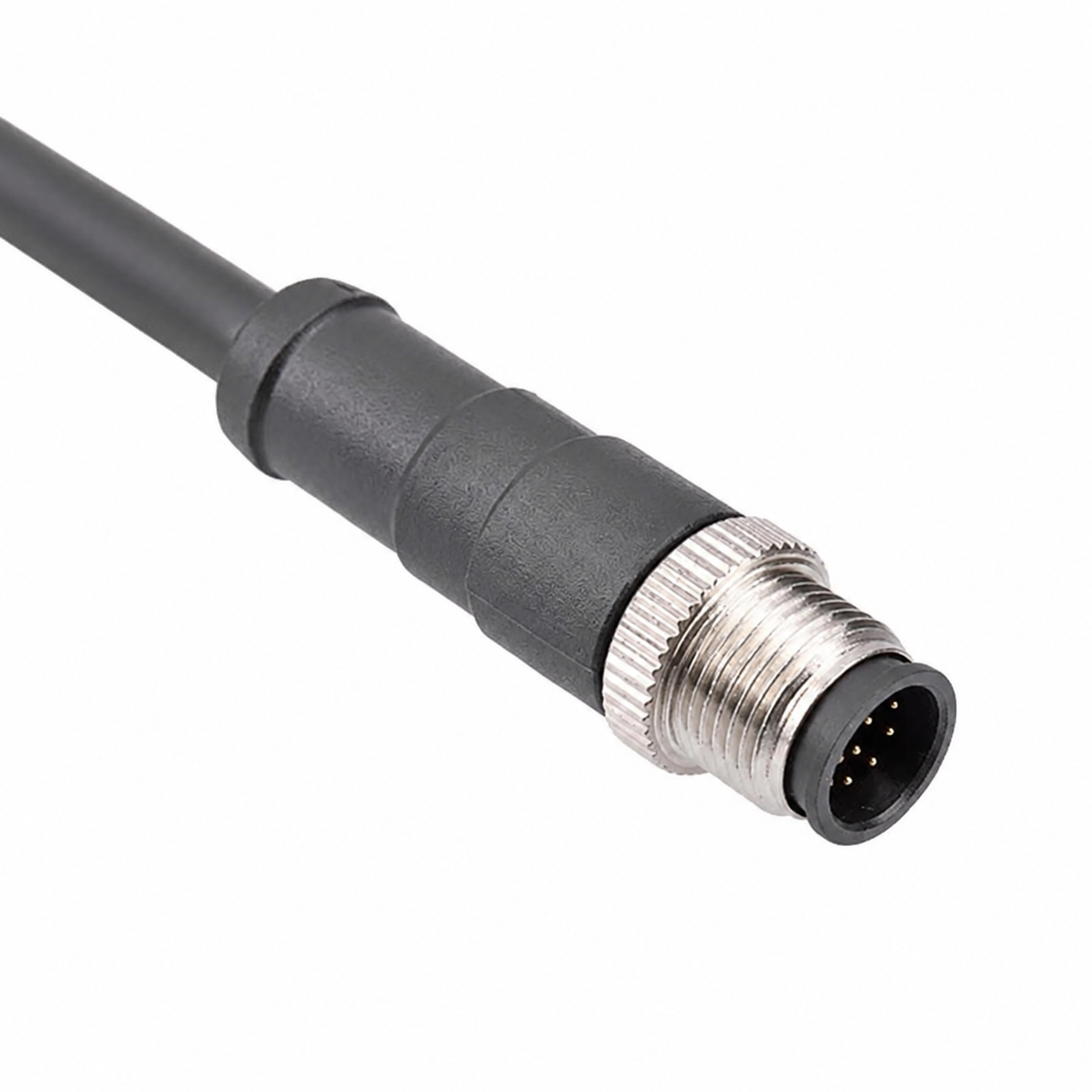

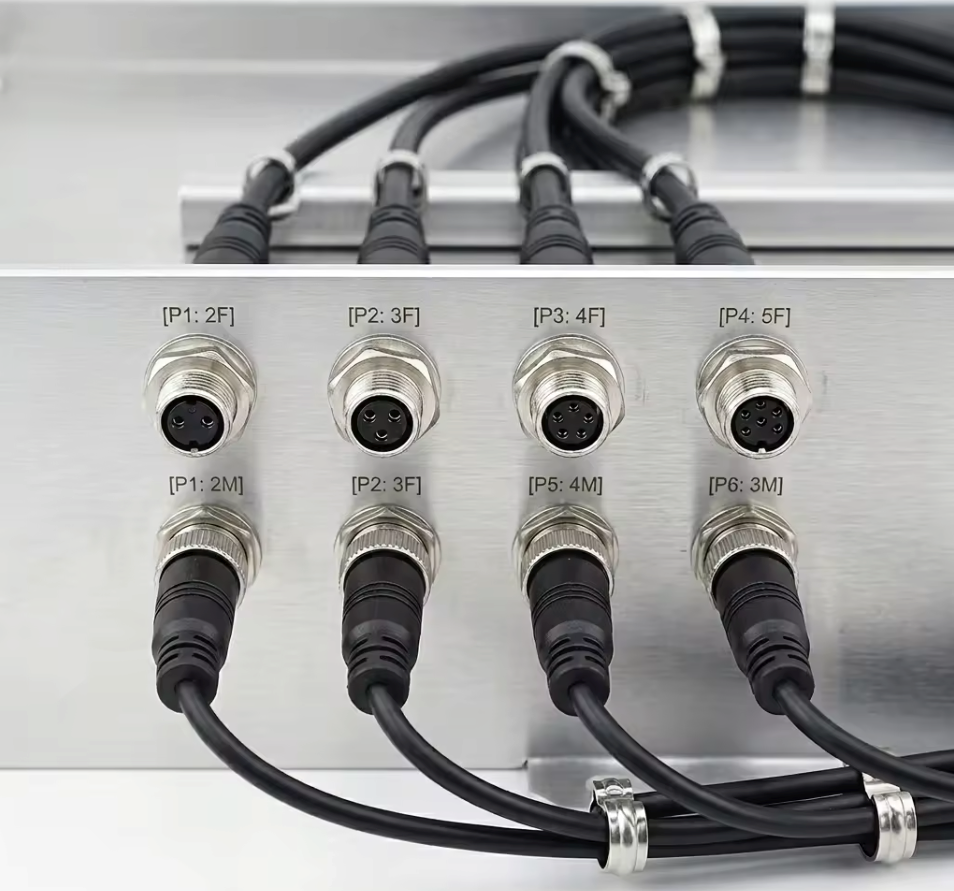

M12 5-pin cable plug connector

M12 5-Pin Cable Plug (Male / Female)

Field-wireable or overmolded cable connectors. Available in straight and 90° angled versions. Suitable for sensor and actuator connections in automation lines.

Straight / Angled IP67 Rated PVC or PUR Cable Screw / Spring Wiring
Get Quote for This Type

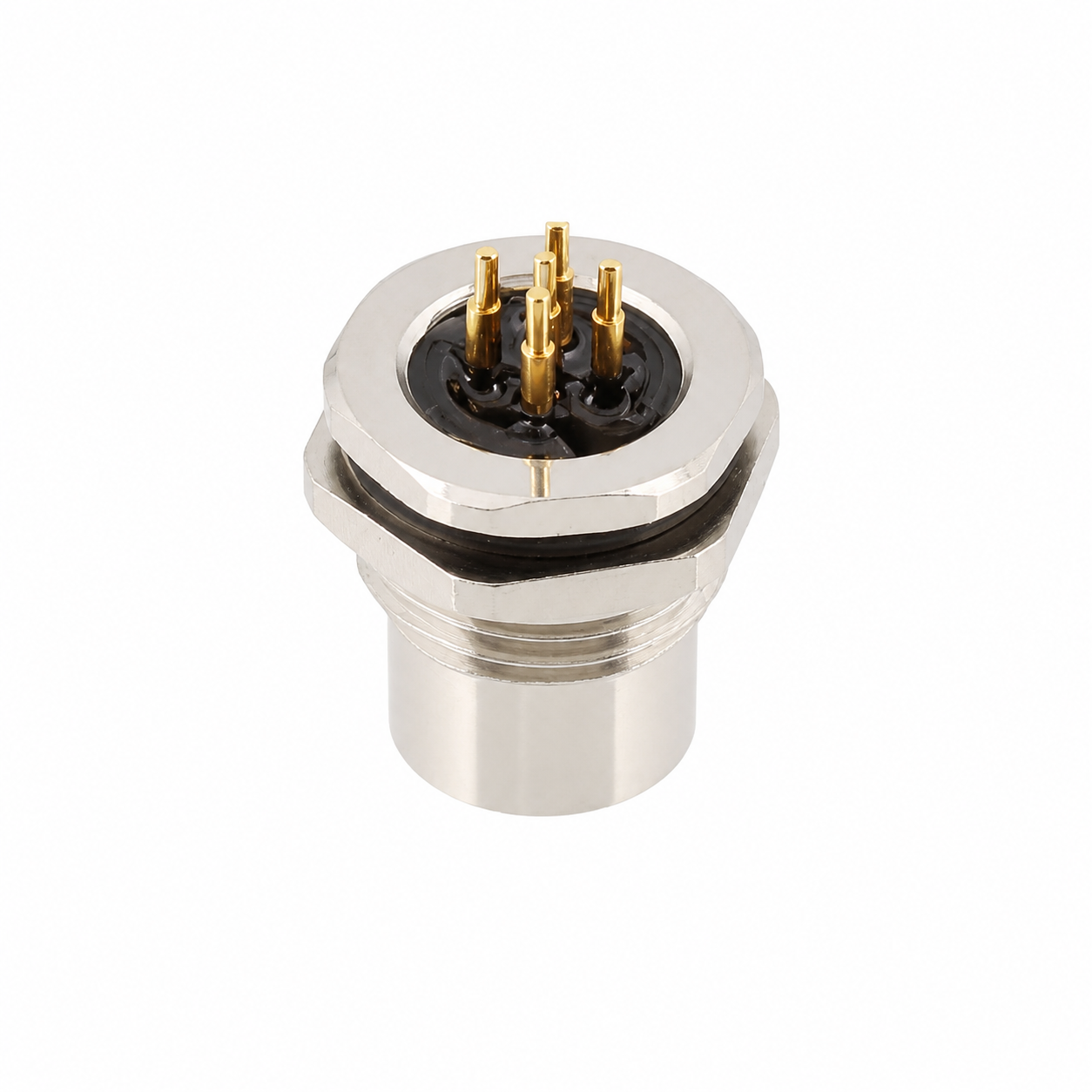

M12 5-pin panel mount receptacle

M12 5-Pin Panel Mount Receptacle

Front and rear panel mount sockets for control cabinets and junction boxes. Zinc alloy or stainless steel shell, IP67 sealed when mated.

Front / Rear Mount M16×1.5 / PG9 Thread Solder / PCB Type Stainless Steel Option
Get Quote for This Type

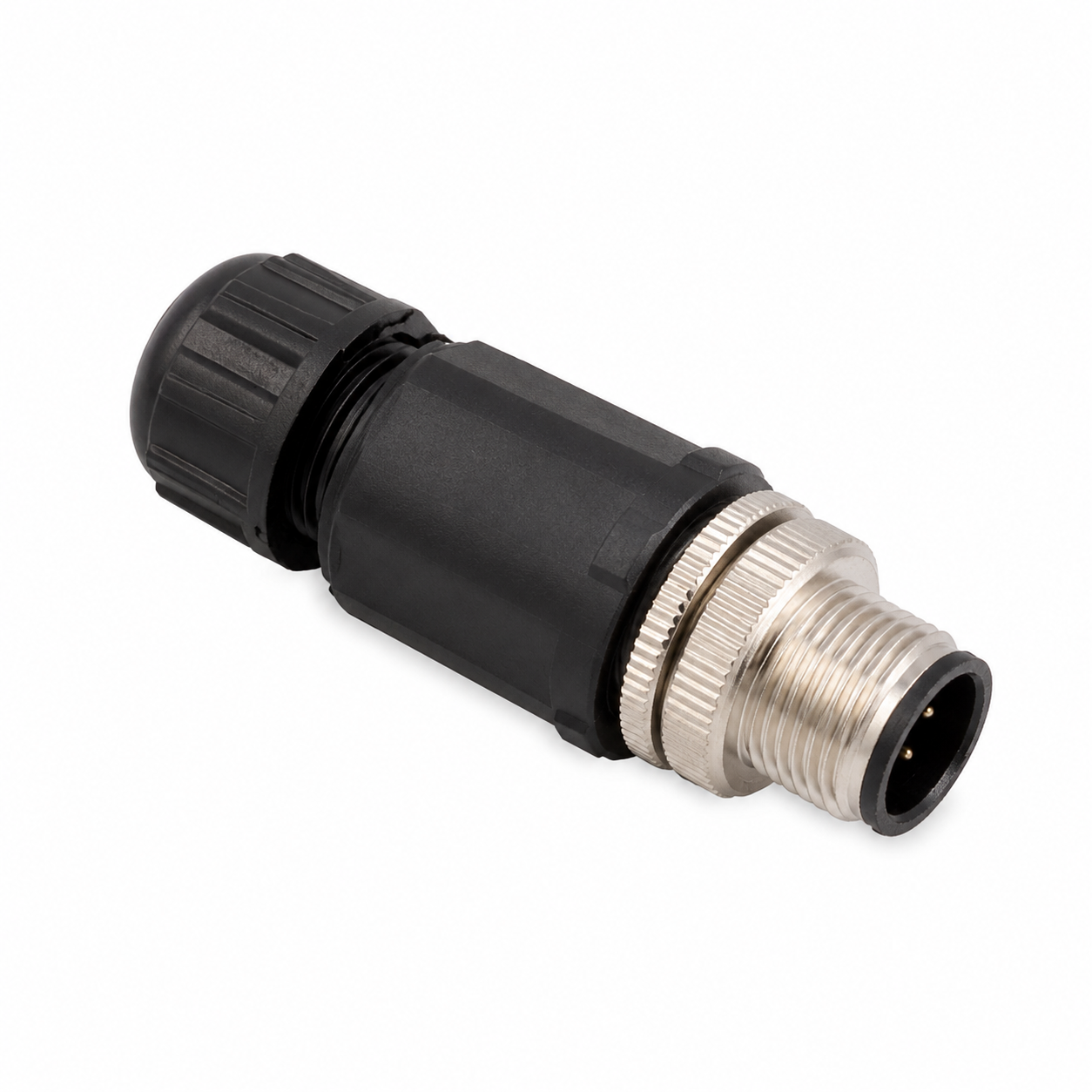

M12 5-pin overmolded cable assembly

M12 5-Pin Overmolded Cable Assembly

Pre-assembled, tested cable assemblies with custom lengths. Molded strain relief, 100% electrically tested before shipment. OEM packaging available.

Custom Length 100% Tested OEM Packaging M/F Both Ends
Get Quote for This Type

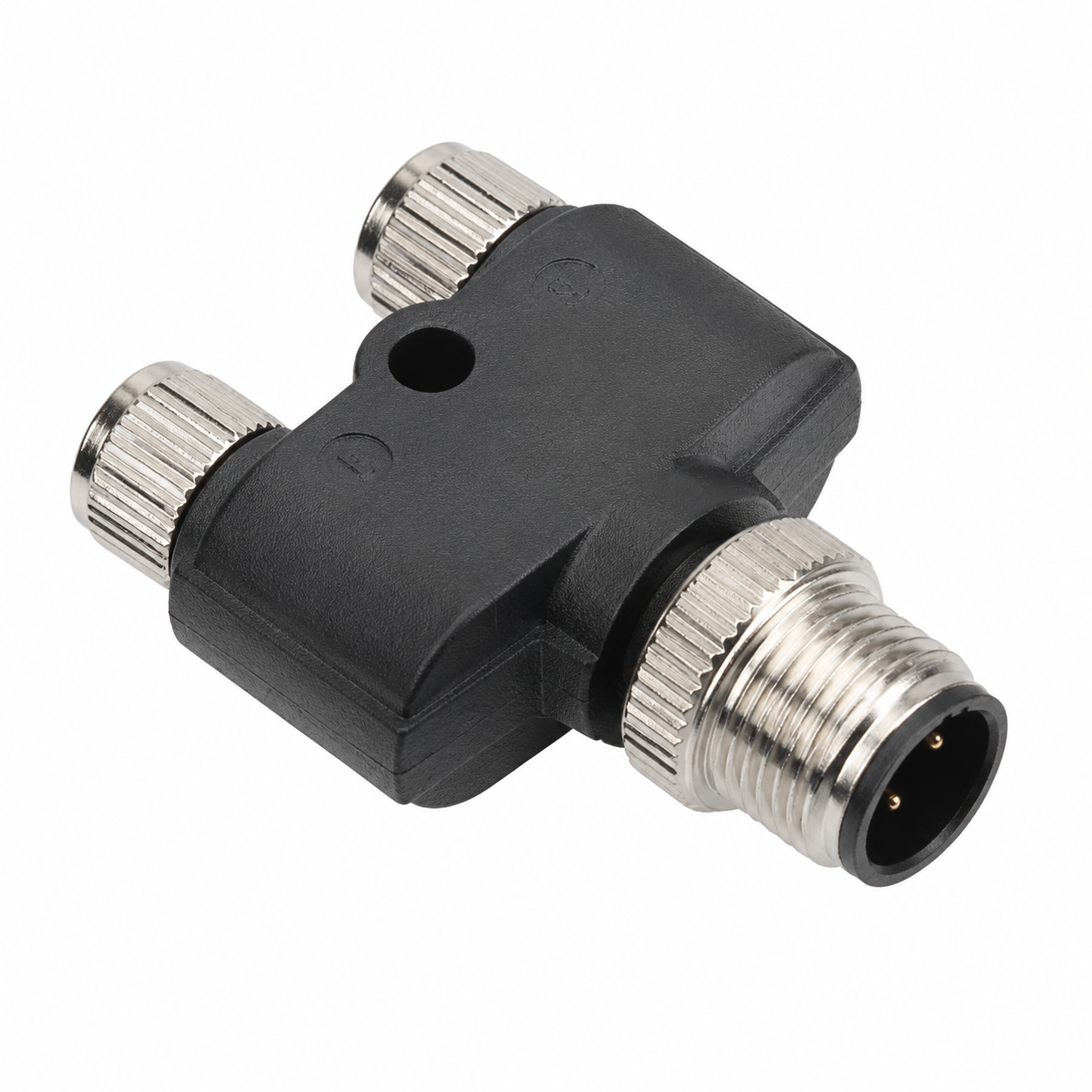

M12 5-pin T-type splitter connector

M12 5-Pin T / Y Splitter Connector

T-type and Y-type distribution connectors for multi-drop sensor networks. Ideal for Profibus, DeviceNet, and IO-Link topologies.

T-Type / Y-Type Multi-Drop Network Profibus / DeviceNet IP67
Get Quote for This Type

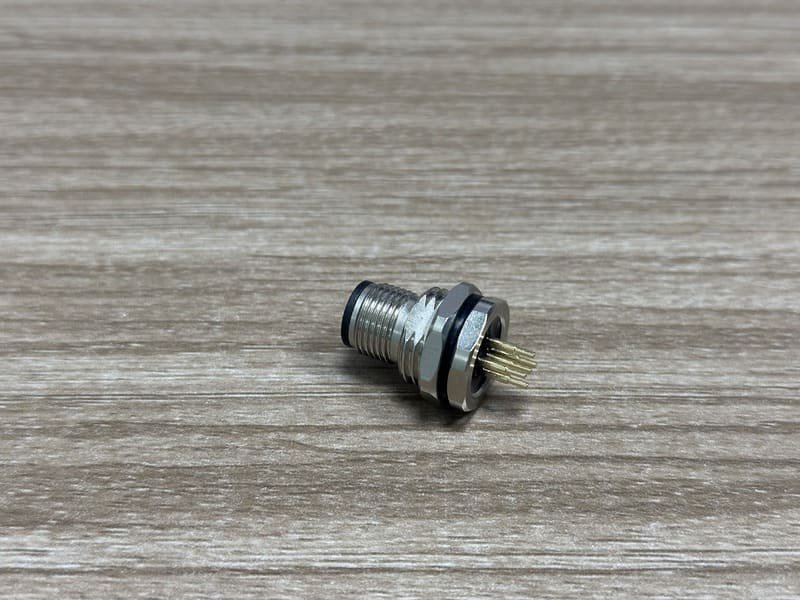

M12 5-pin PCB solder connector

M12 5-Pin PCB Solder Type Connector

PCB-mount receptacles for direct board soldering. Compact footprint, stable contact, suitable for embedded control boards and sensor modules.

PCB Mount Through-Hole / SMD Compact Design RoHS Compliant
Get Quote for This Type

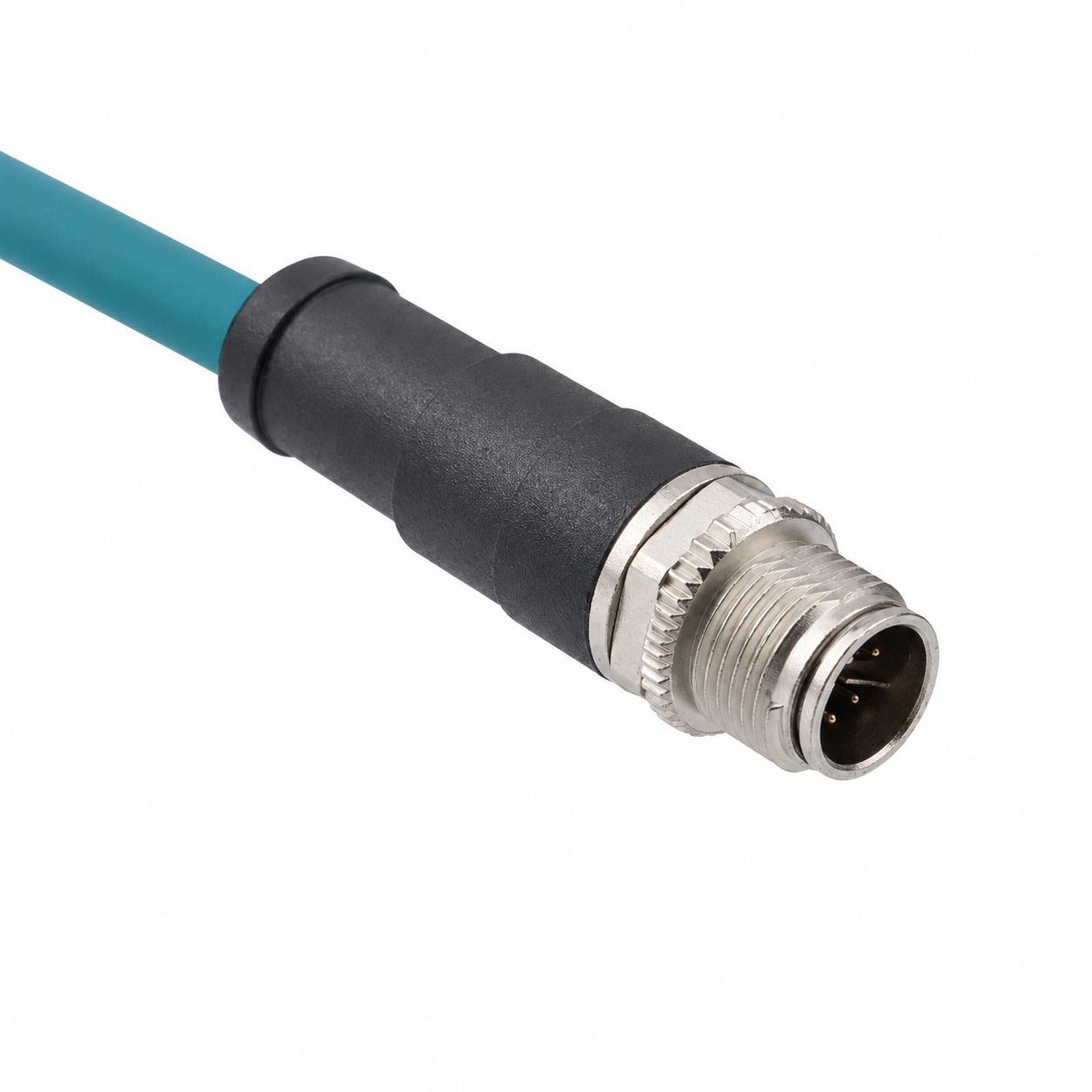

M12 5-pin shielded connector

M12 5-Pin Shielded Connector

EMC-shielded versions for high-noise industrial environments. 360° shielding continuity, suitable for servo drives, inverters, and encoder feedback cables.

360° EMC Shield Servo / Encoder High-Noise Environment Metal Shell
Get Quote for This Type

Don't see your exact specification? We do custom configurations.

Describe Your Requirements
Real Factory · Real Manufacturer

We Are the Factory, Not a Trader

Dongguan NITAI Electronics Co., Ltd. -- 12+ years manufacturing M12 connectors for global industrial buyers.

12+
Years in Operation
Est. 2012
3,000
㎡ Factory Floor
Dongguan, China
200+
Skilled Technicians
In-house team
50+
Countries Served
Global export
NITAI factory - Factory Workshop - Automated Assembly Lines
Factory Workshop - Automated Assembly Lines
NITAI factory - Injection Molding Department
Injection Molding Department
NITAI factory - Cable Overmolding Production
Cable Overmolding Production
NITAI factory - Quality Inspection Lab
Quality Inspection Lab
NITAI factory - Electrical Testing Station
Electrical Testing Station
NITAI factory - Finished Goods Warehouse
Finished Goods Warehouse

Injection Molding

In-house tooling and injection molding for PA66, PBT, and thermoplastic shells. Short lead times on custom molds.

Automated Assembly

Semi-automated and fully automated assembly lines for high-volume orders. Consistent quality at scale.

Cable Overmolding

In-house cable overmolding with PVC, PUR, and TPU jackets. Custom cable colors, lengths, and connector combinations.

Zero-Defect Commitment

Rigorous Quality Control at Every Stage

Every M12 5-pin connector leaving our facility passes a multi-stage inspection process. We hold ISO 9001 certification and comply with CE, RoHS, REACH, and UL standards.

01
Incoming Material Inspection
Raw materials (brass, PA66, NBR) are batch-tested for dimensional accuracy and chemical compliance before entering production.
02
In-Process Quality Control
Operators perform real-time checks at each assembly station. Critical dimensions verified with CMM and go/no-go gauges.
03
Electrical Testing
100% contact resistance, insulation resistance, and continuity testing on automated test benches.
04
Waterproof / IP Testing
IP67 and IP68 immersion tests performed on sampled units per IEC 60529. Pressure and vacuum leak tests available.
05
Final Inspection & Outgoing Report
Full visual and functional check before packing. Test reports and COC documentation provided with each shipment.
NITAI quality control inspection laboratory
In-house Electrical & IP Testing Lab

Certifications & Standards

CE European Conformity
RoHS Hazardous Substance Free
REACH Chemical Safety
UL UL Compliant
ISO 9001 Quality Management
IP67/68 IEC 60529 Rated
NITAI electrical testing equipment for M12 connectors
Pre-Order Questions Answered

Frequently Asked Questions

Everything buyers ask before placing their first order with us.

What is the minimum order quantity (MOQ) for M12 5-pin connectors?
Our standard MOQ is 100 pcs for stocked items and 500 pcs for custom configurations. For sample orders (1-10 pcs), we can accommodate at sample pricing. Contact us to discuss your specific volume needs -- we are flexible for long-term partners.
Do you provide IP67 and IP68 test reports?
Yes. All our M12 connectors are tested per IEC 60529. IP67 (1 m / 30 min) and IP68 (3 m / 24 h) test reports are available upon request. We can also provide third-party test reports for key markets.
Can you make custom cable lengths and connector combinations?
Absolutely. We offer fully custom cable assemblies: choose cable length, jacket material (PVC/PUR/TPU), connector type on each end (M/F, straight/angled), and pin wiring configuration. OEM packaging and labeling are also available.
What is the typical lead time for a standard order?
For stocked standard items, lead time is 3-7 business days. For custom cable assemblies or new configurations, lead time is typically 15-25 business days depending on quantity. We will confirm exact lead time with your order confirmation.
Are your M12 connectors compatible with SICK, Turck, Balluff, and other sensor brands?
Yes. Our M12 connectors follow IEC 61076-2-101 standard dimensions and are compatible with all major sensor brands including SICK, Turck, Balluff, Pepperl+Fuchs, Phoenix Contact, and others. We recommend verifying the pin assignment before wiring.
What is the difference between A-coded, B-coded, and D-coded M12 5-pin connectors?
A-coded M12 connectors are the most common, used for sensors and general I/O signals. B-coded is used for Profibus fieldbus applications. D-coded (4-pin) is standard for 100 Mbps Ethernet -- 5-pin D-coded variants are used for Power over Ethernet (PoE). The key notch position prevents mis-mating between coding types.
Do you accept OEM / private label orders?
Yes. We provide full OEM and ODM services including custom branding, private label packaging, custom color shells, and modified specifications. Minimum quantities apply for branding services. Please share your requirements and we will send a quotation.
How do I get a sample before placing a bulk order?
Simply fill in the RFQ form below or message us on WhatsApp. Specify the part number or describe your requirement. Sample cost is typically covered by express freight (DHL/FedEx). Sample cost is refundable on bulk orders above a certain value.
