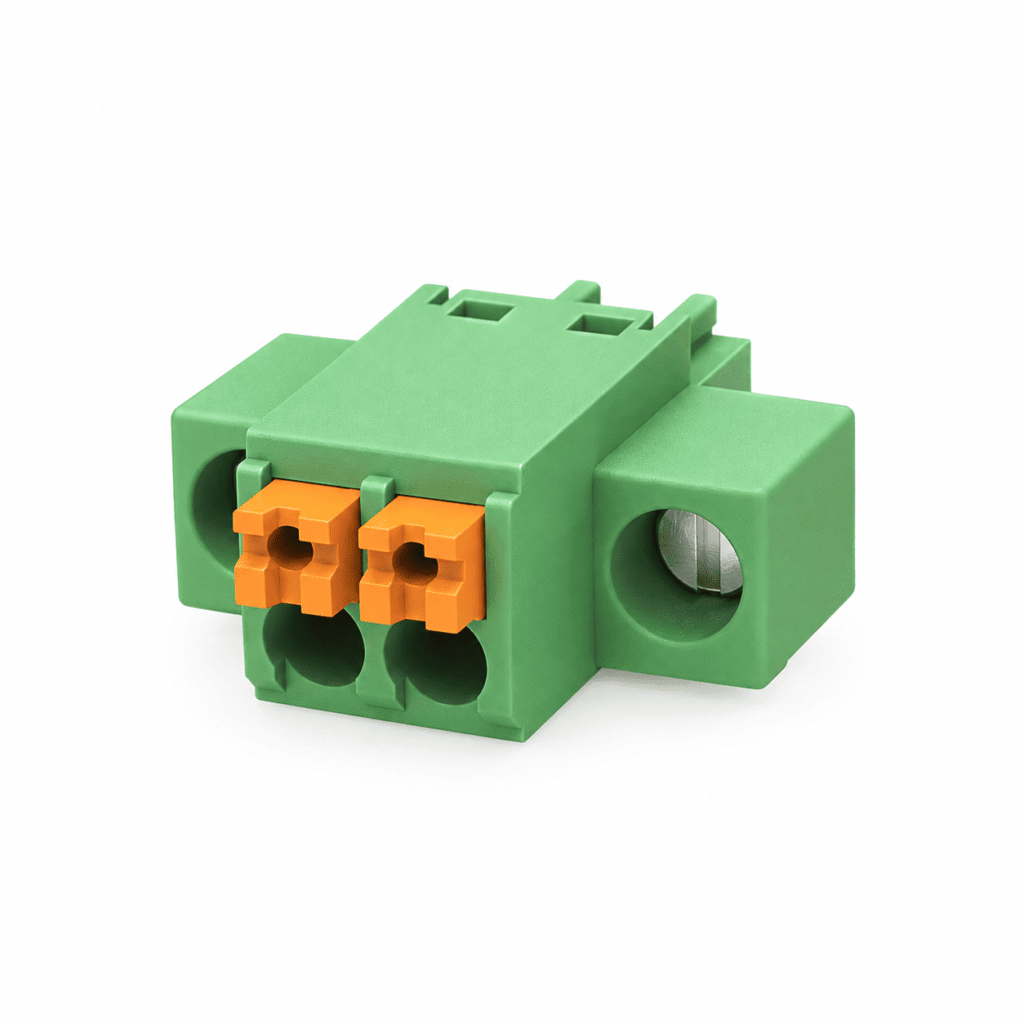

The NITAI PL Series 3.5mm pitch pluggable PCB terminal block is designed for compact wire-to-board connections in industrial control equipment, automation systems, and electronic assemblies.
Featuring a push-in spring connection, this terminal block allows convenient wire termination without conventional screw tightening. Its pluggable design enables the connector to be connected to or disconnected from a compatible PCB-mounted header during equipment installation and maintenance.
With an IEC rated current of 8A and a rated voltage of 160V under overvoltage category III and pollution degree 2 conditions, the connector supports both solid and flexible conductors from 0.2 to 1.0mm².
The terminal block features a green PA66 insulating housing, copper alloy contacts, and tin-plated connection and contact surfaces. Its single-row design offers multiple pole configurations for different PCB layouts and wiring requirements.
Typical Applications
• Industrial control boards
• PLC control equipment
• Sensor and signal connections
• Industrial automation systems
• Electronic instruments
• Control cabinets and electrical assemblies
• PCB-based signal and control circuits
Reference Model
15EDGKNM-3.5-XX
NITAI provides pluggable PCB terminal block solutions for different PCB layouts, wiring requirements, and industrial applications. Contact us for dimensional drawings, technical specifications, samples, and OEM/ODM customization options.
