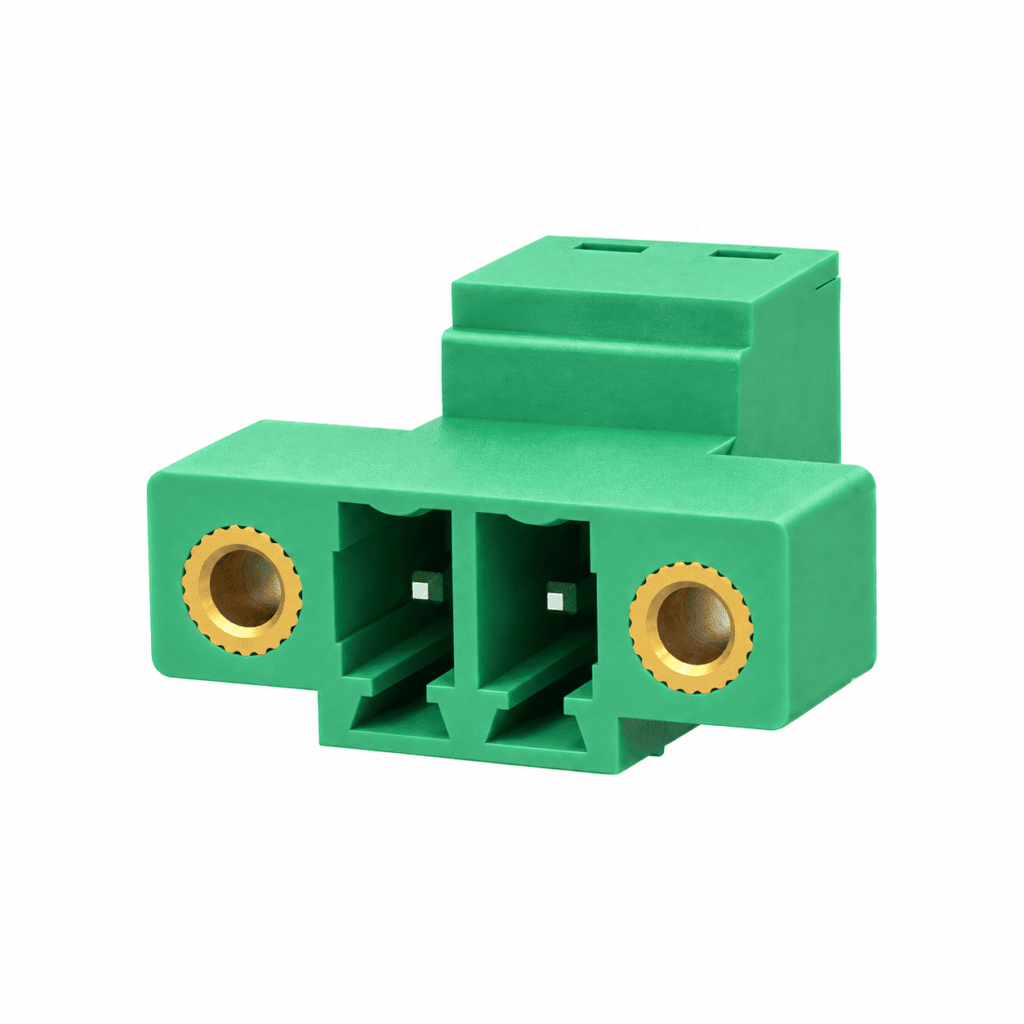

The NITAI PL Series 3.81mm pitch screw connection pluggable PCB terminal block is designed for wire-to-board connections in industrial control equipment, electronic devices, and automation systems.
Featuring an M2 screw connection with a slotted screwdriver drive, this terminal block provides mechanical clamping of conductors without requiring soldering at the wire termination point. The pluggable design allows the connector to be disconnected from a compatible PCB header during equipment installation, inspection, and maintenance.
With a rated current of 7A and a rated voltage of 250V under IEC overvoltage category II and pollution degree 2 conditions, the terminal block supports solid conductors from 0.5 to 1.5mm² and flexible conductors from 0.75 to 1.5mm².
The connector features a green PA66 insulating housing, copper contacts, and tin-plated connection and contact surfaces. Multiple pole configurations are available to meet different wiring and PCB layout requirements.
Typical Applications
- Industrial control boards
- PLC control equipment
- Power supply and control circuits
- Industrial automation systems
- Electronic instruments
- Control cabinets and electrical assemblies
- PCB-based signal and power connections
NITAI provides pluggable PCB terminal block solutions for different PCB layouts, wiring requirements, and industrial applications. Contact us for dimensional drawings, technical specifications, samples, and OEM/ODM customization options.
