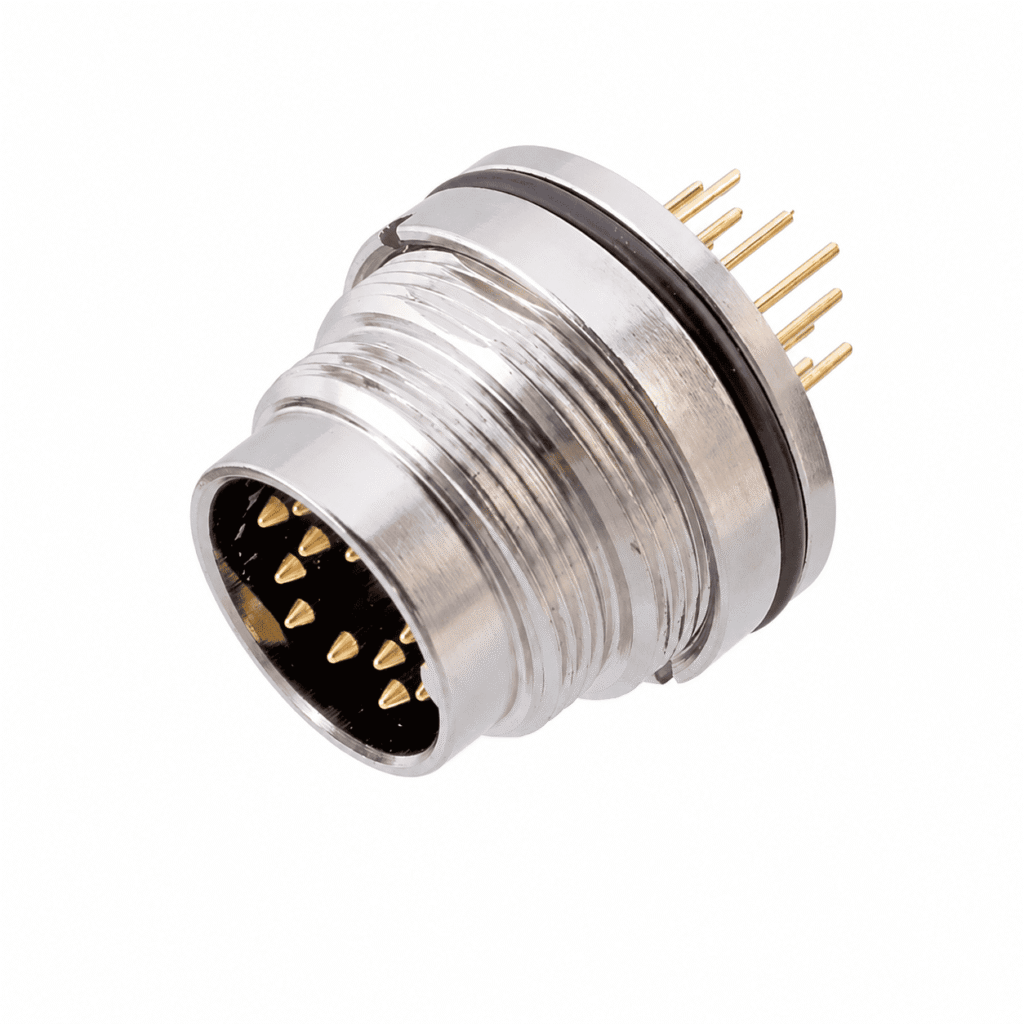

M16 Signal Type Back Mount Male Socket – PCB M18×0.75
M16 Signal Type Back Mount Male Socket – PCB M18×0.75
M16 Signal Type Back Mount Male Socket – PCB M18×0.75

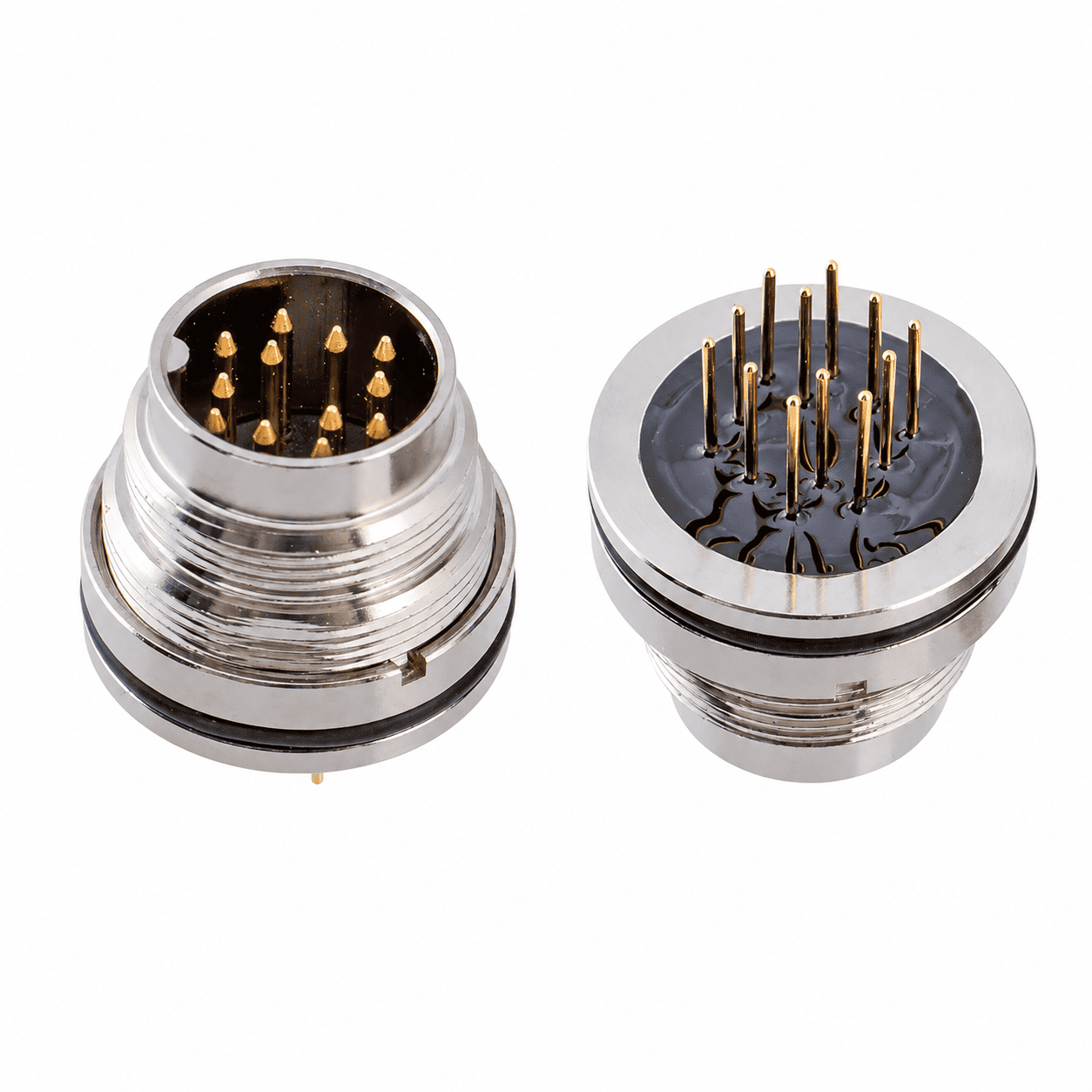

M16 Signal Type Back Mount Male Socket – PCB M18×0.75 thumbnail

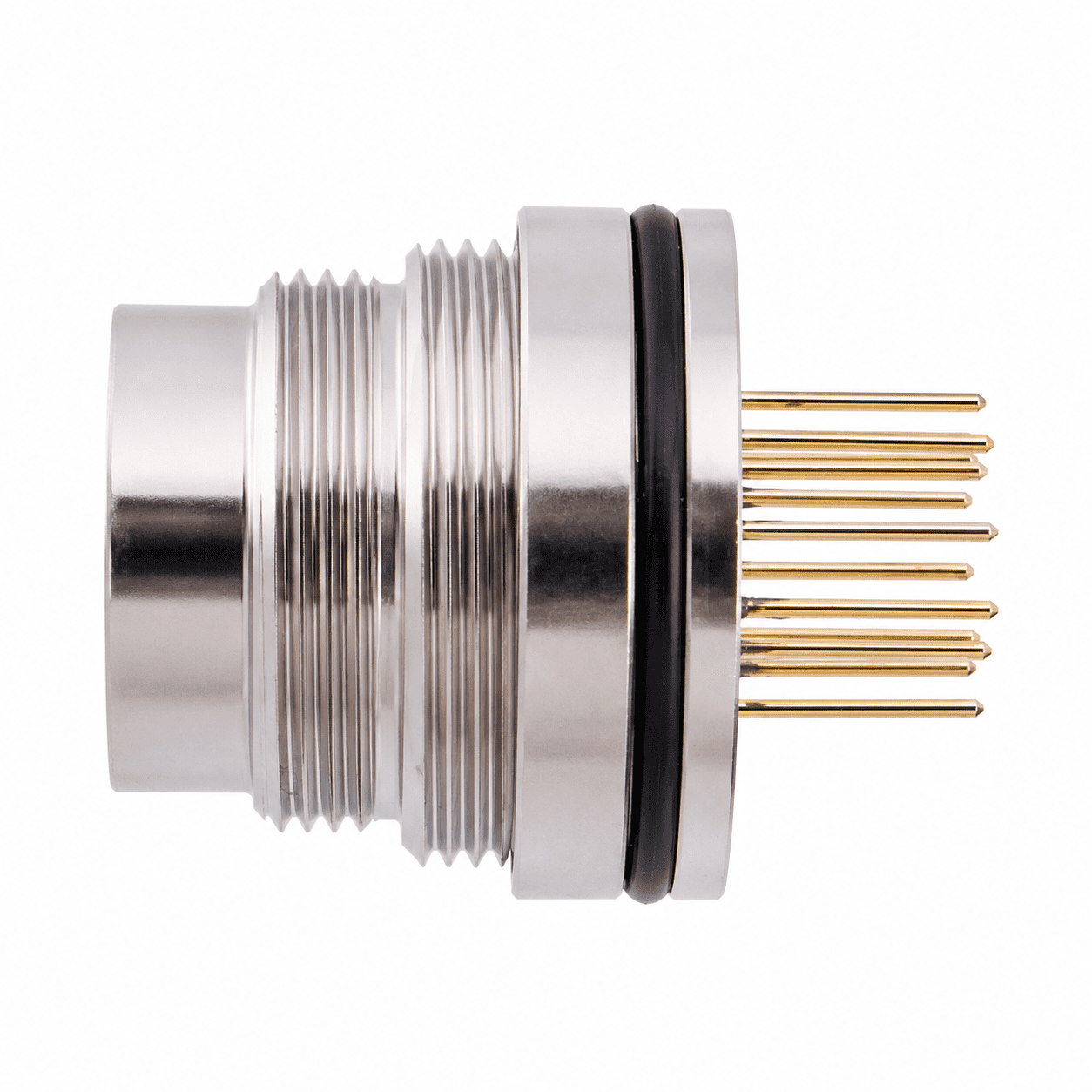

M16 Signal Type Back Mount Male Socket – PCB M18×0.75 thumbnail
M16 Signal Type Back Mount Male Socket – PCB M18×0.75 thumbnail
M16 Series M16 Connectors

M16 Signal Type Back Mount Male Socket – PCB M18×0.75

Pins
2, 3, 4, 5, 6, 7, 8, 12, 14, 16, 19, 24
Coding
A-Coded
Gender
Male
Thread
M18*0.75
Wiring
Solder Type

Select Product Options

Number of Pins

Coding

Request a Quote

Product Overview

The M16 Signal Type Back Mount Male Socket – PCB M18×0.75 is designed for direct PCB integration in industrial automation, control, sensor, and electronic equipment.

Featuring an M16 male interface, back-mount panel structure, PCB termination, and M18×0.75 mounting thread, the socket provides a compact and reliable connection solution for equipment requiring rear-side panel installation.

The back-mount structure allows the socket to be installed from the rear side of an equipment panel or enclosure, while the PCB contacts provide direct board-level termination without additional cable wiring.

Multiple standard and A-coded contact configurations are available for different industrial signal and control applications.

Technical Specifications

Specifications for M16 Signal Type Back Mount Male Socket – PCB M18×0.75
Product Name M16 Signal Type Back Mount Male Socket – PCB M18×0.75
Series M16
Structure Type Back Mount Socket
Gender Male
Number of Pins 2, 3, 4, 5, 6, 7, 8, 12, 14, 16, 19, 24
Coding A-Coded
Wiring Method Solder Type
Thread Specification M18*0.75
Category M16 Connectors
Mounting Type Panel Mount

Electrical & Mechanical Parameters

Shell Material Brass nickel-plated/Zinc alloy nickel-plated
Insulator Material PA66
Sealing Material Epoxy resin/Rubber
Contact Material Brass/Phosphorus copper gold-plated
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M16 Signal Type Back Mount Male Socket – PCB M18×0.75 Technical Drawing

Click image to zoom · All dimensions in mm
