M16 Signal Type Front Mount Male Socket – PCB M18×0.75

Pins
2, 3, 4, 5, 6, 7, 8, 12, 14, 16, 19, 24
Coding
A-Coded
Gender
Male
Thread
M18*0.75
Wiring
PCB Solder Type

Select Product Options

Number of Pins

Coding

Request a Quote

Product Overview

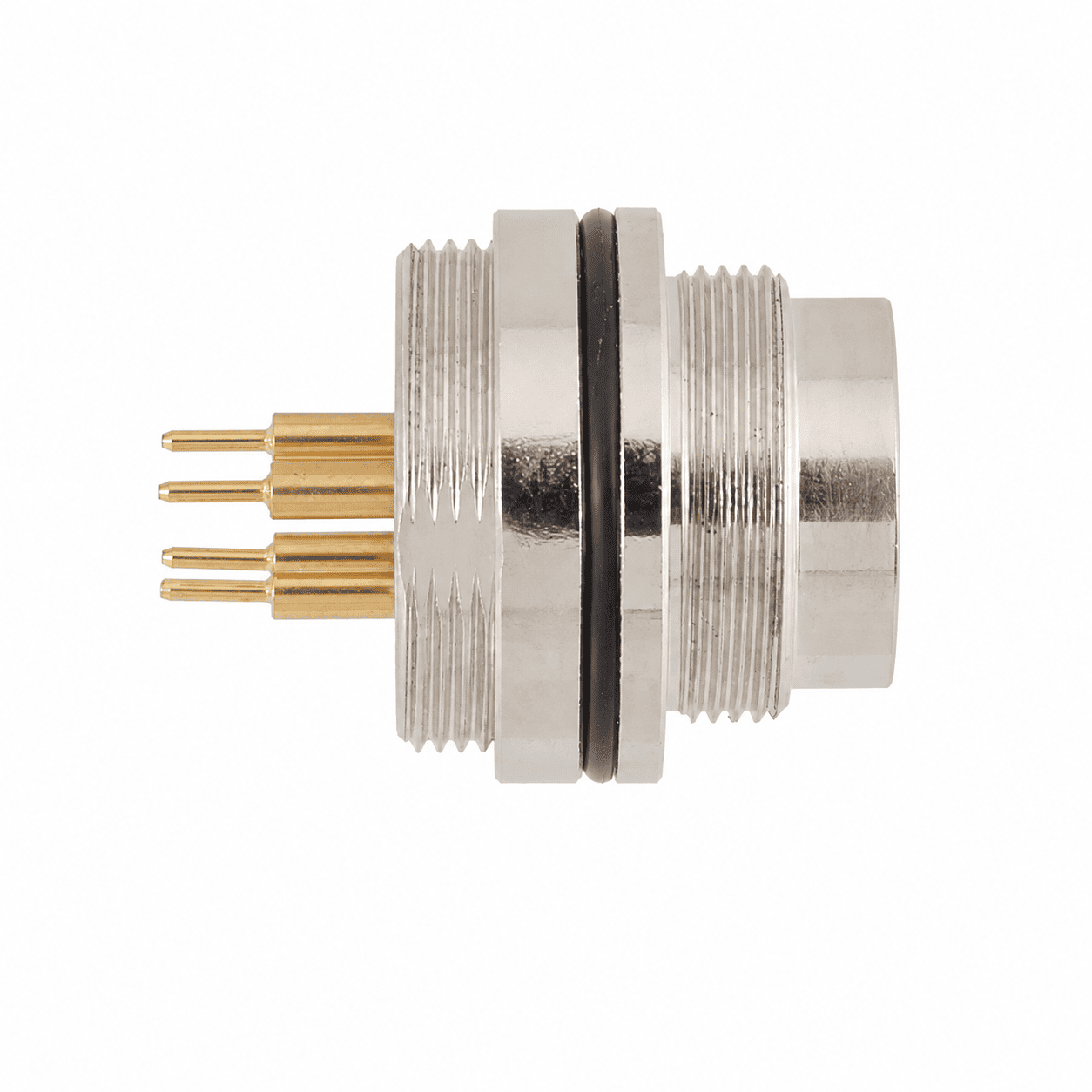

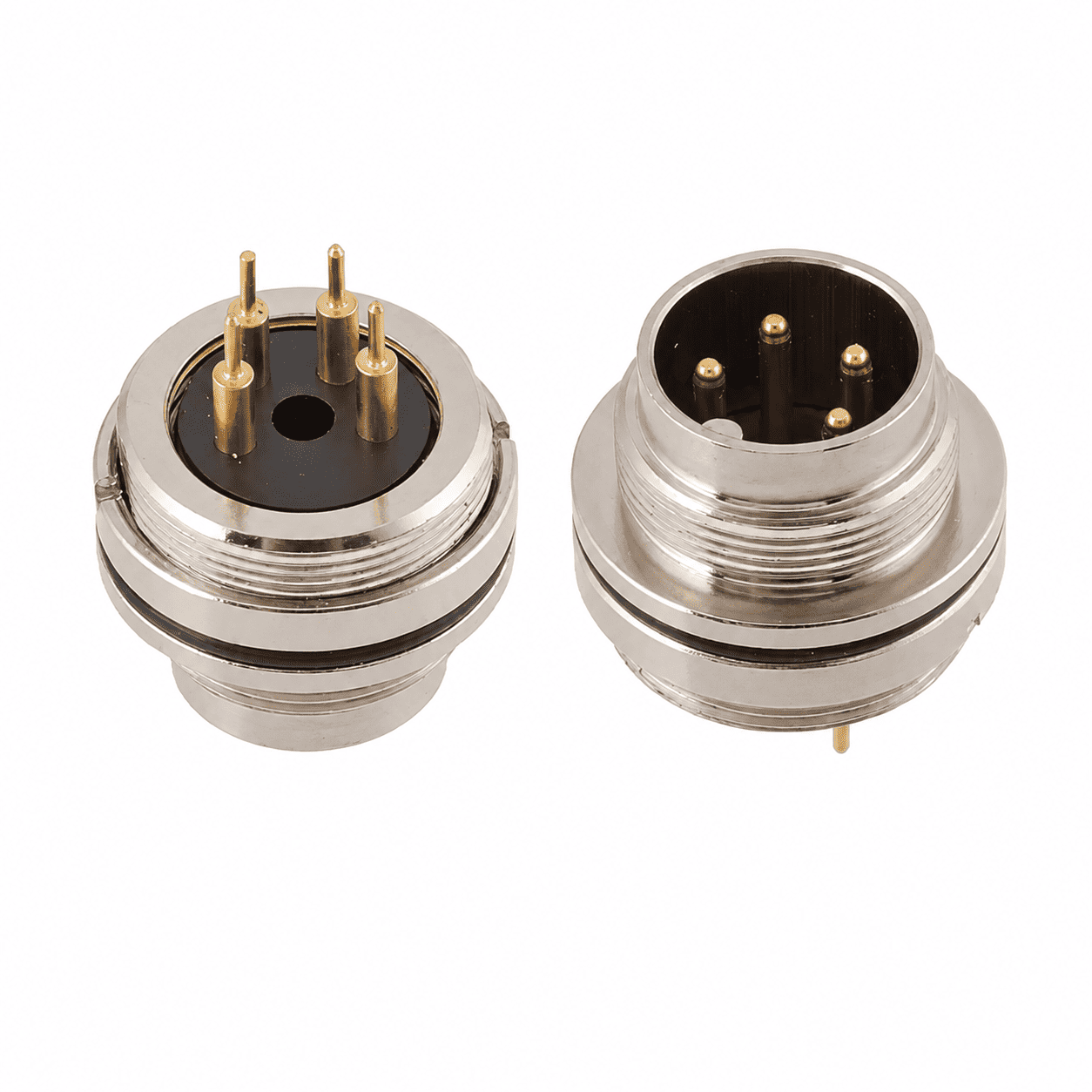

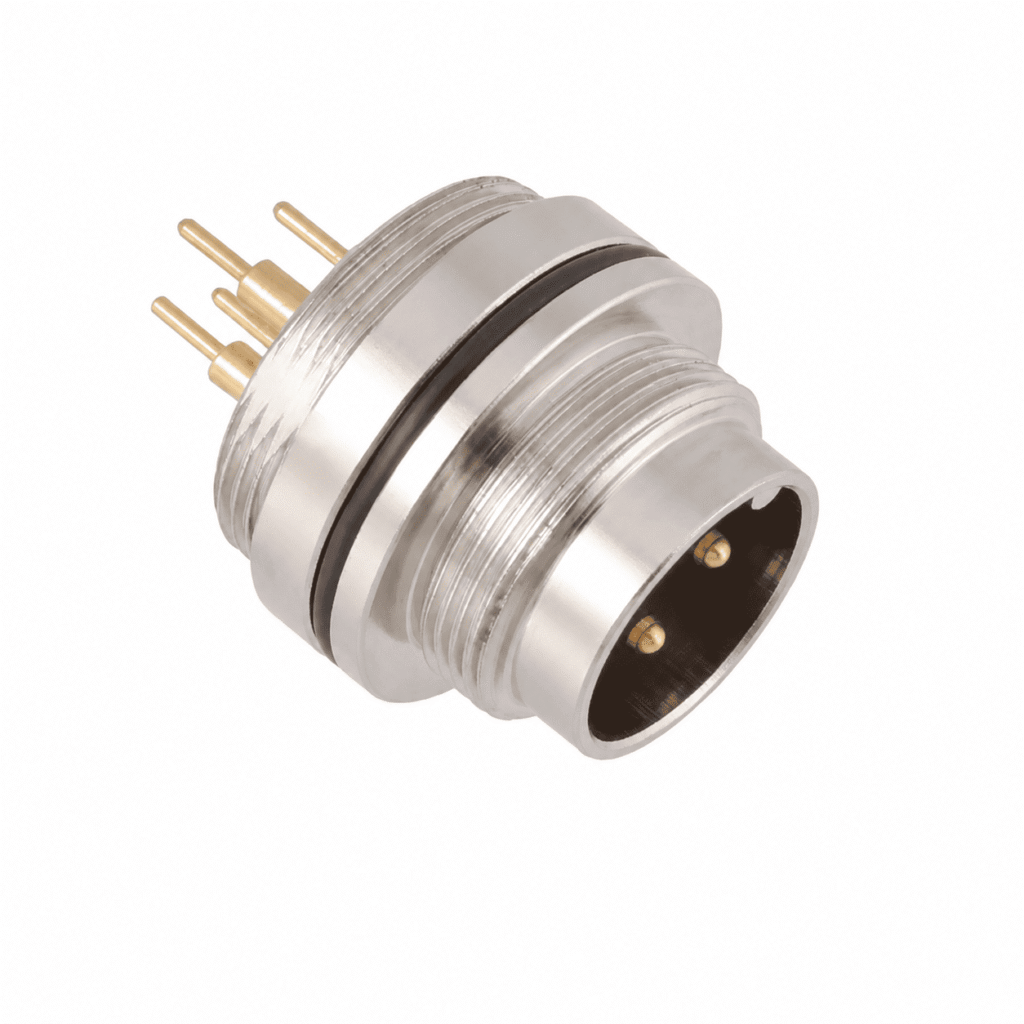

The M16 Signal Type Front Mount Male Socket – PCB M18×0.75 is designed for direct PCB integration in industrial automation, control, sensor, and electronic equipment.

Featuring an M16 male interface, front-mount panel structure, PCB termination, and M18×0.75 mounting thread, the socket provides a compact and reliable connection solution for equipment requiring front-side panel installation.

The front-mount structure allows the socket to be installed from the front side of an equipment panel or enclosure, while the PCB contacts provide direct board-level termination without additional cable wiring.

Multiple standard and A-coded contact configurations are available for different industrial signal and control applications.

Technical Specifications

Specifications for M16 Signal Type Front Mount Male Socket – PCB M18×0.75
Product Name M16 Signal Type Front Mount Male Socket – PCB M18×0.75
Series M16
Structure Type Front Mount Socket
Gender Male
Number of Pins 2, 3, 4, 5, 6, 7, 8, 12, 14, 16, 19, 24
Coding A-Coded
Wiring Method PCB Solder Type
Thread Specification M18*0.75
Category M16 Connectors
Mounting Type Panel Mount

Electrical & Mechanical Parameters

Shell Material Brass nickel-plated/Zinc alloy nickel-plated
Insulator Material PA66
Sealing Material Epoxy resin/Rubber
Contact Material Brass/Phosphorus copper gold-plated
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M16 Signal Type Front Mount Male Socket – PCB M18×0.75 Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine

Need a Custom Solution?

OEM/ODM customization available — pin configuration, cable length, special coatings.

Contact Engineering

Request a Quote

Fill in your requirements — we reply within 24 hours.
