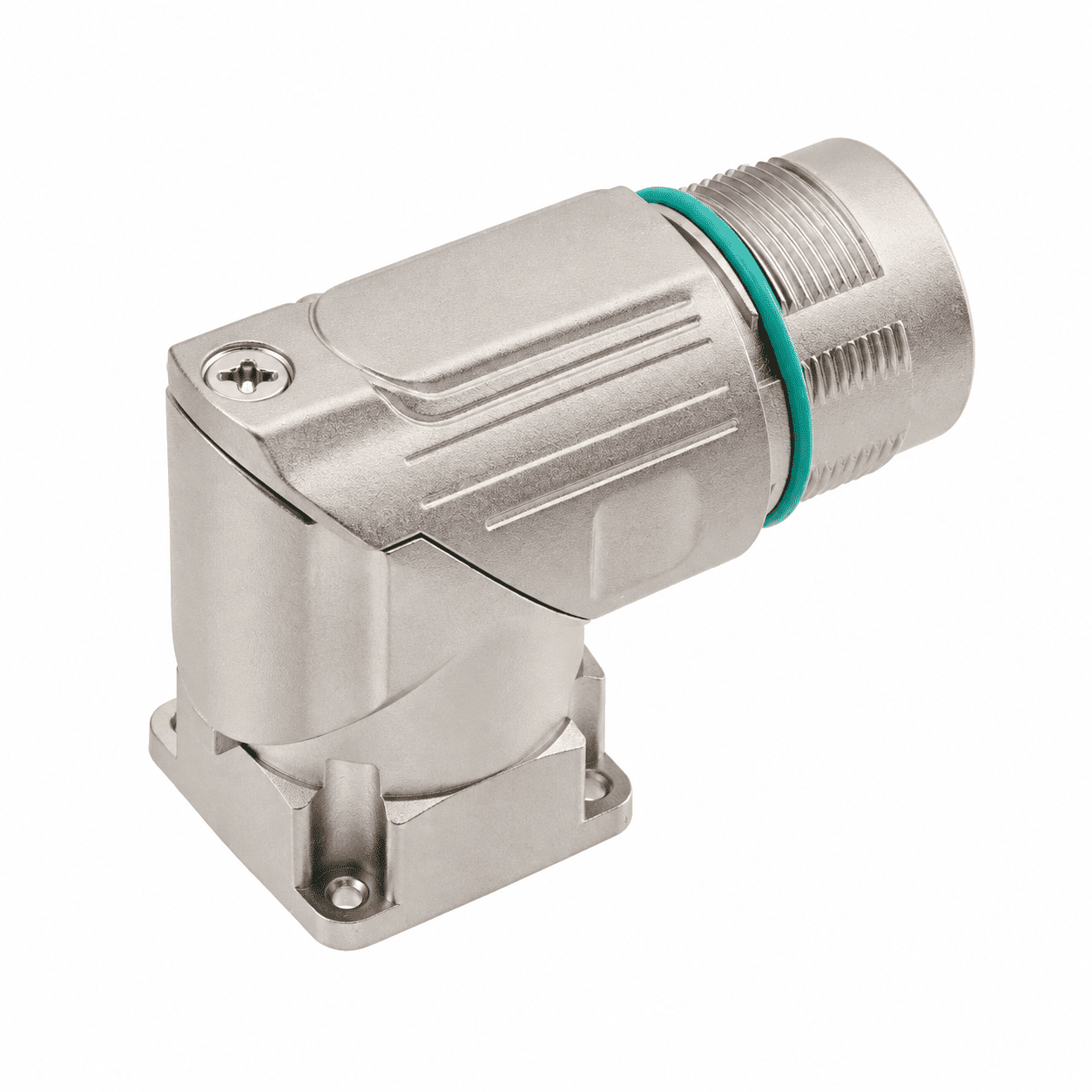

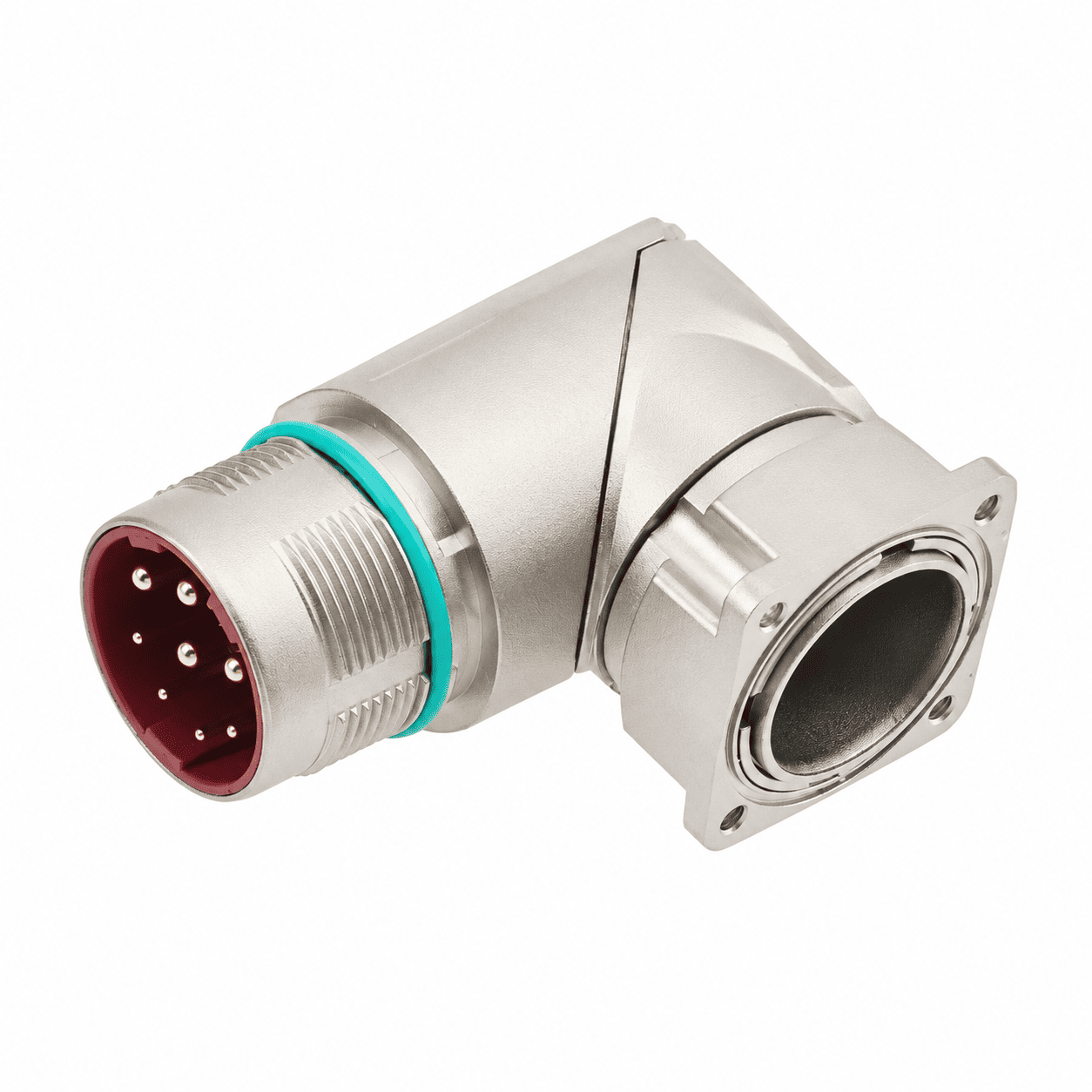

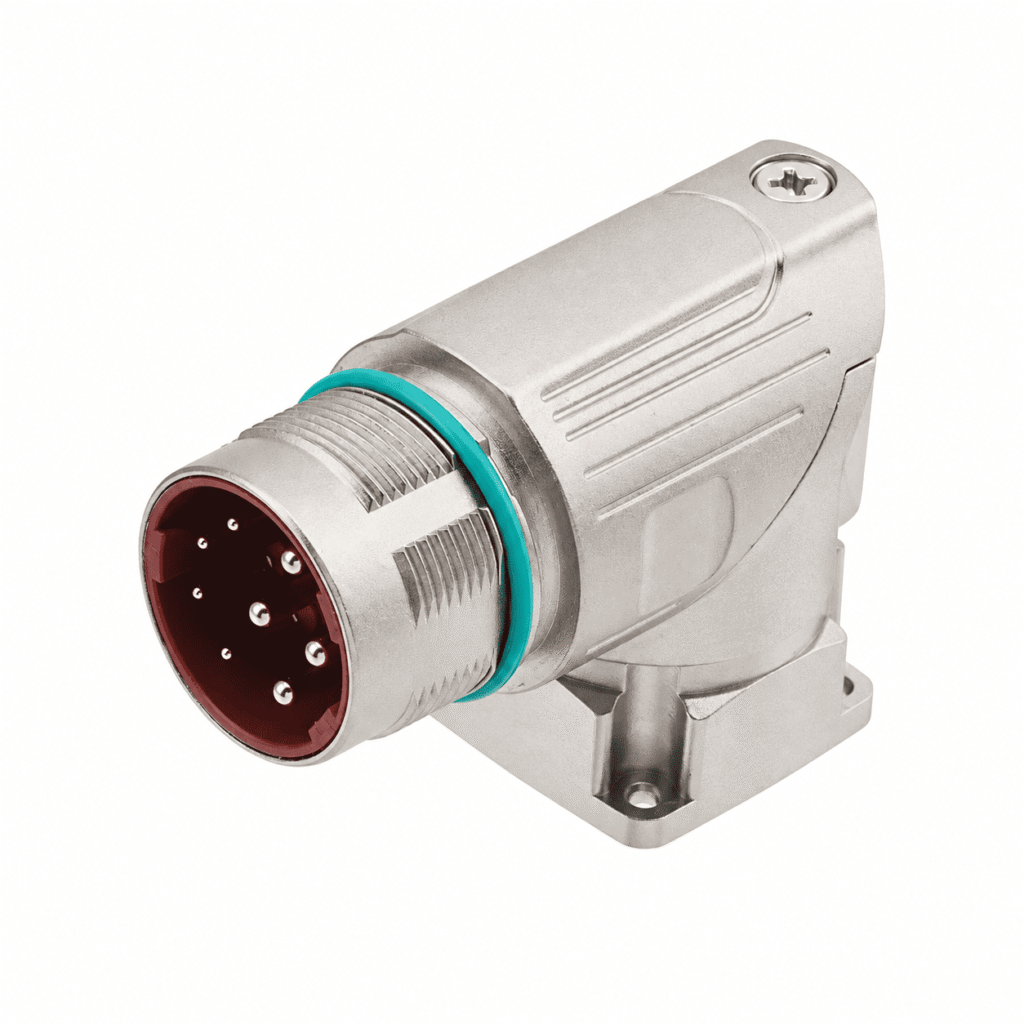

The M23 Power Type Angled Male Square Assembled Socket is a high-performance M23 power connector designed for reliable power connections in industrial equipment, automation systems, and machinery. Its angled square flange structure with a 19.8 × 19.8 mm mounting hole provides a practical panel-mount solution for compact equipment layouts and flexible cable routing.
The connector uses crimp termination and is available in 6-pin and 8-pin configurations. The metal housing provides 360° shielding and IP67 protection for demanding industrial environments. The 6-pin version supports up to 30A and 630V, while the 8-pin version supports 9A/20A and 250V/630V depending on the contact configuration.
