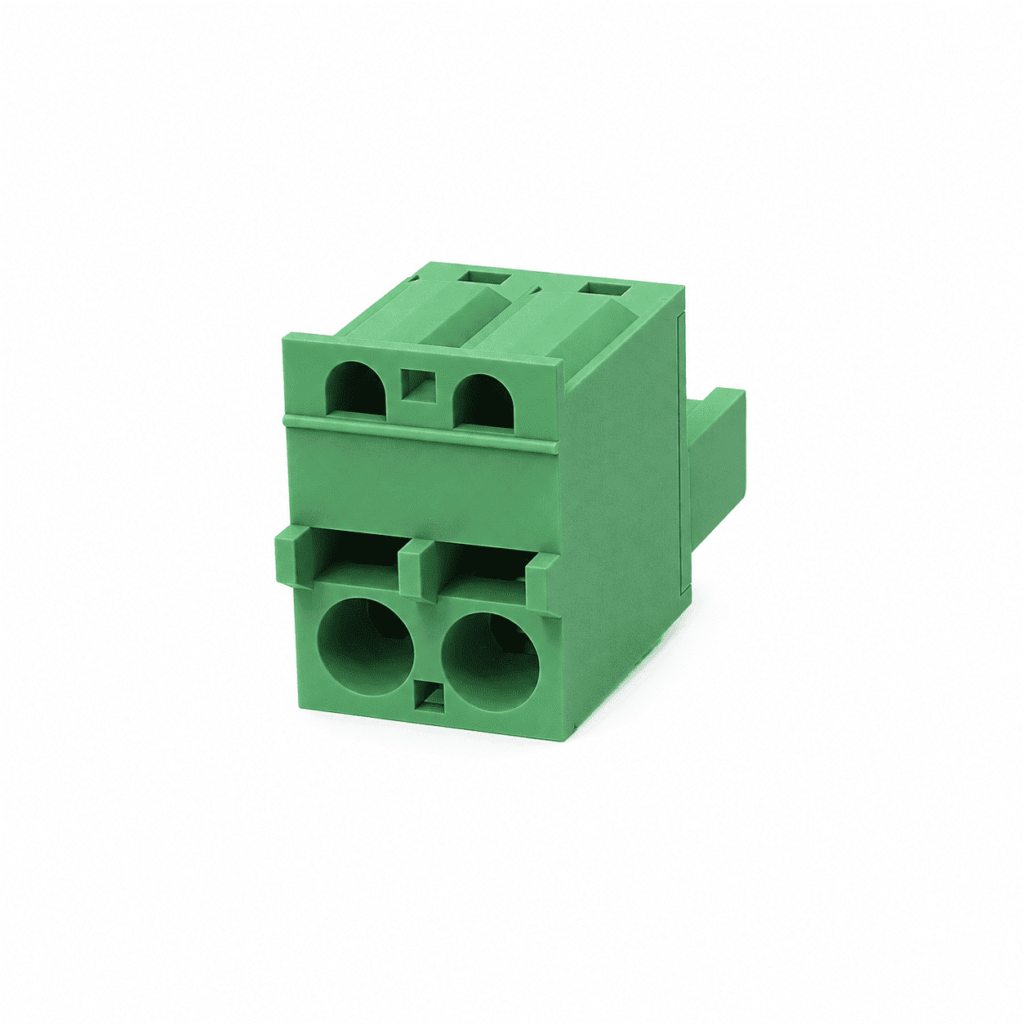

The NITAI PL Series 5.08mm pitch pluggable PCB terminal block is designed for reliable wire-to-board connections in industrial control equipment, automation systems, and electronic assemblies.
Featuring a push-in spring connection, this terminal block provides convenient wire termination without conventional screw tightening. Its pluggable design allows the connector to be connected to or disconnected from a compatible PCB-mounted header during equipment assembly and maintenance.
With an IEC rated current of 20A and a rated voltage of 320V under overvoltage category III and pollution degree 2 conditions, the connector supports solid and flexible conductors from 0.2 to 2.5mm².
The terminal block features a green PA66 insulating housing, copper alloy contacts, and tin-plated connection points and contact surfaces. Its single-row configuration is available in various pole counts, including higher-position options for applications requiring multiple wire connections.
Typical Applications
- Industrial control boards
- PLC control equipment
- Power supply and control circuits
- Industrial automation systems
- Electronic instruments
- Control cabinets and electrical assemblies
- Multi-channel PCB wiring applications
NITAI provides pluggable PCB terminal block solutions for different PCB layouts, wiring requirements, and industrial applications. Contact us for dimensional drawings, technical specifications, samples, and OEM/ODM customization options.
