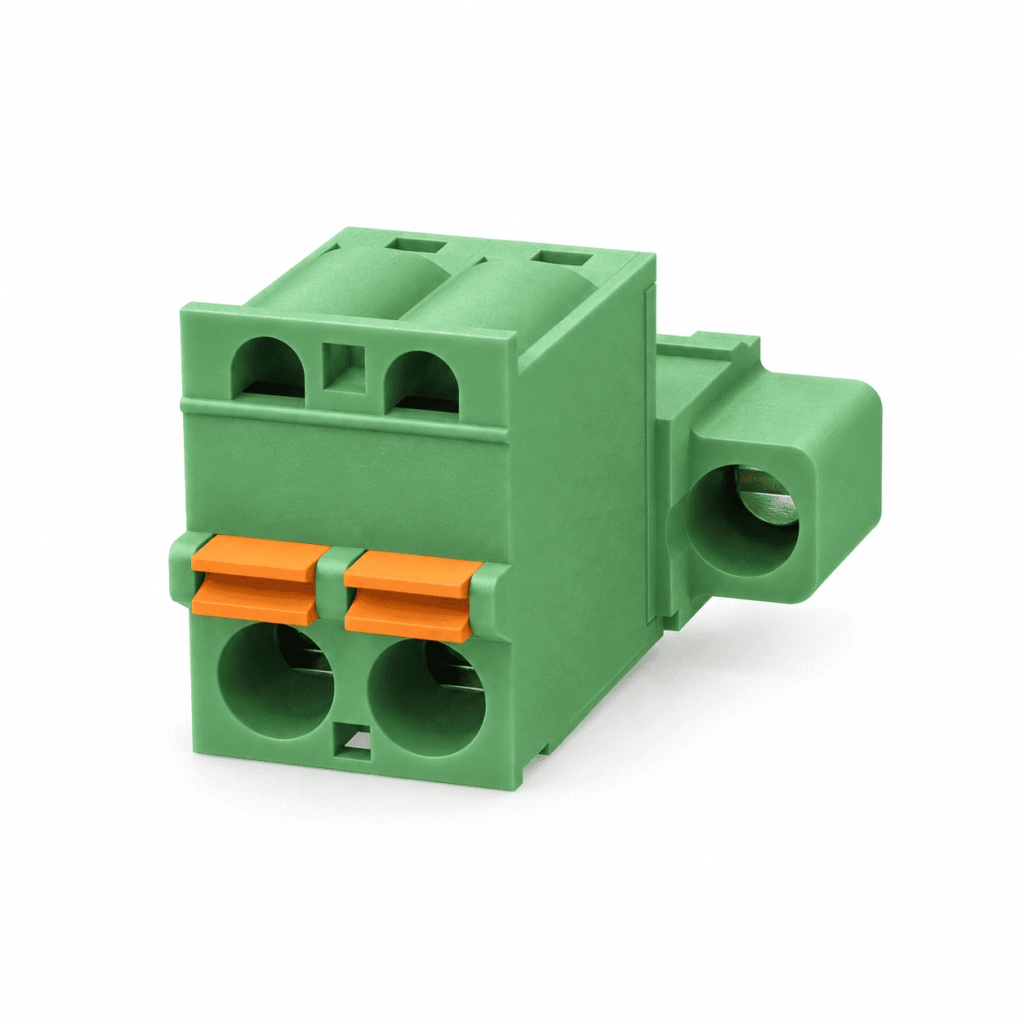

The NITAI PL Series 5.08mm pitch pluggable PCB terminal block is designed for wire-to-board connections in industrial control equipment, automation systems, and electronic assemblies.
Featuring a push-in spring connection, this terminal block allows convenient wire termination without conventional screw tightening. Its pluggable design enables connection and disconnection from a compatible PCB-mounted header during equipment assembly and maintenance.
According to the detailed IEC specifications provided, the connector has a rated current of 12A and a rated voltage of 250V under overvoltage category III and pollution degree 2 conditions. It supports both solid and flexible conductors from 0.2 to 2.5mm².
The terminal block features a green PA66 insulating housing, copper contacts, and tin-plated wire termination surfaces. Available in configurations from 2 to 16 poles, it provides flexible options for PCB layouts and industrial wiring requirements.
Typical Applications
• Industrial control boards
• PLC control equipment
• Power supply and control circuits
• Industrial automation systems
• Electronic instruments
• Control cabinets and electrical assemblies
• PCB-based power and signal connections
Reference Model
2EDGKDRM-5.08-XX
NITAI provides pluggable PCB terminal block solutions for different PCB layouts, wiring requirements, and industrial applications. Contact us for dimensional drawings, technical specifications, samples, and OEM/ODM customization options.
