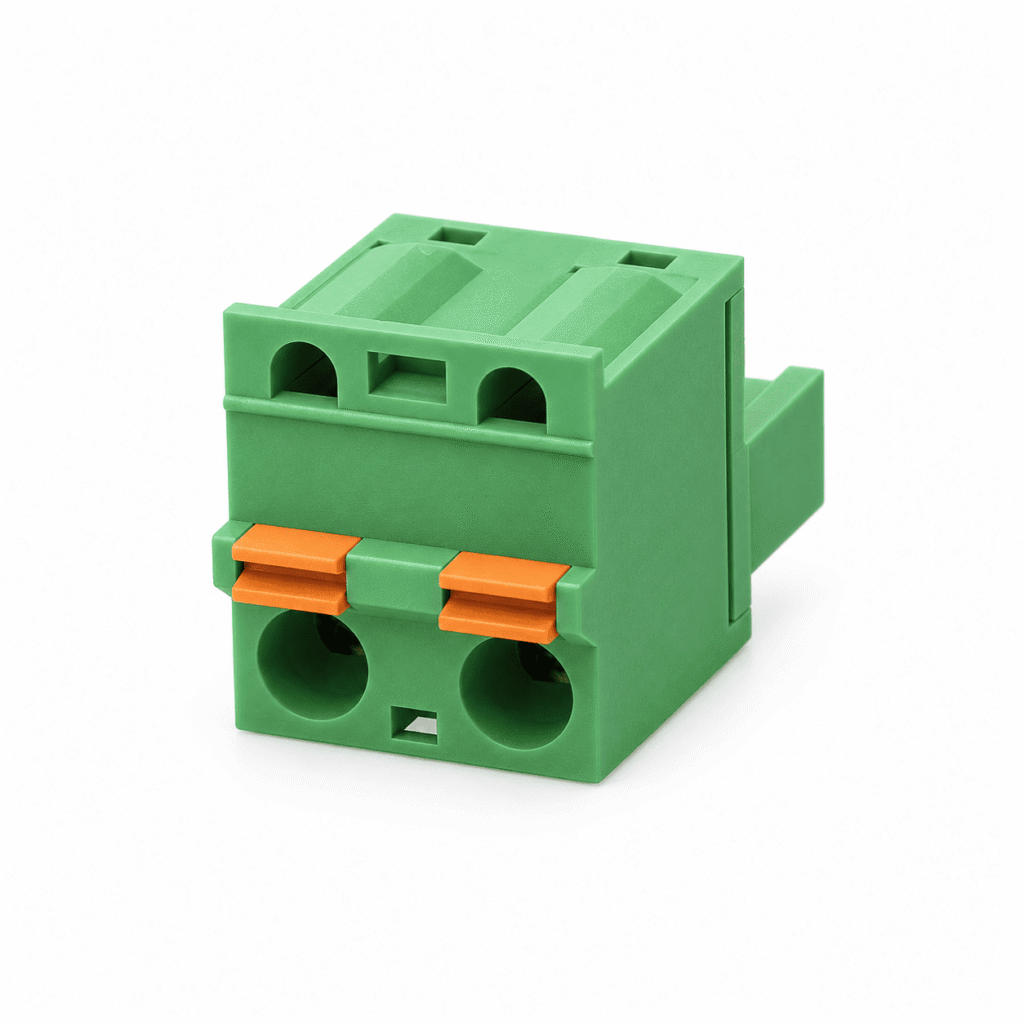

The NITAI PL Series 7.5mm pitch pluggable PCB terminal block is designed for wire-to-board connections in industrial control equipment, automation systems, and electrical assemblies.
Featuring a push-in spring connection, this terminal block allows convenient wire termination without conventional screw tightening. Its pluggable structure enables easy connection and disconnection from a compatible PCB-mounted header during equipment installation and maintenance.
With an IEC rated current of 20A and a rated voltage of 400V under overvoltage category III and pollution degree 2 conditions, the connector supports both solid and flexible conductors from 0.2 to 2.5mm².
The terminal block features a green PA66 insulating housing, copper alloy contacts, and tin-plated wire termination and mating contact surfaces. Its single-row configuration is available in multiple pole options for different PCB layouts and wiring requirements.
Typical Applications
- Industrial control boards
- PLC control equipment
- Power supply and control circuits
- Industrial automation systems
- Electronic instruments
- Control cabinets and electrical assemblies
- PCB-based power and signal connections
Reference Model: NT2EDGKDW-5.0-XX
NITAI provides pluggable PCB terminal block solutions for different PCB layouts, wiring requirements, and industrial applications. Contact us for dimensional drawings, technical specifications, samples, and OEM/ODM customization options.
