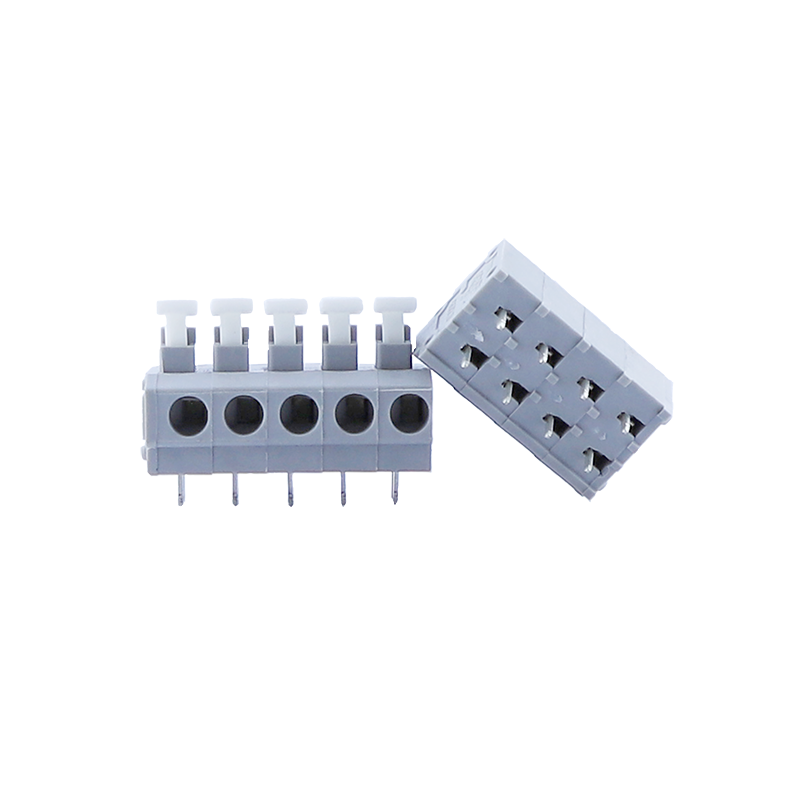

PCB Terminal Block Connector Side Entry 3.81mm Pitch
Spring Terminal Blocks
Hover to zoom
Spring Terminal Blocks

PCB Terminal Block Connector Side Entry 3.81mm Pitch

Model No. NT-235-3.81-XX

Poles — click to switch image

Colors

Pitch
3.81mm
Rated Voltage
250V
Rated Current
5A
Wire Range
22-18AWG
Download Datasheet
Certifications:

Overview & Advantages

Replacement Compatibility

  • Product Type: 3.81mm Pitch High-Density Fixed PCB Spring Terminal Block
  • Reference Model: NT-235-3.81-XX

Product Features

☑ Front-entry wire connection design allows wire insertion and spring operation from the same direction for easier installation.

☑ Built-in test port supports convenient electrical testing and maintenance without removing wires.

☑ Compact 3.81mm pitch design helps optimize PCB space in high-density applications.

☑ Reliable spring clamp connection provides stable and vibration-resistant wiring performance.

Typical Applications

  • PLC and DCS control systems
  • Industrial interface modules
  • Control and automation electronics
  • PCB control boards and signal transmission systems

Technical Parameters

Electrical Parameters

Rated Voltage Rated Current
250V 5A

Product Properties

Connection Direction 0°
Type of Installation PCB welding
Connection Method Push-in spring connection
Pitch 3.81mm
Number of Potentials 2-24P
Pluggable no
Number of Rows 1

Material Data

Housing Material PBT Compliant with REACH/RoHS
Contact Material Copper alloy
Insulating Material Group Ⅲa
Contact Point Metal Surface Tin-plated
Flammability Rating UL94V-0

General Specifications

Model No. NT-235-3.81-XX
Pitch 3.81mm
Rated Voltage 250V
Rated Current 5A
Wire Range 22-18AWG
Poles 01P, 02P, 03P, 04P, 05P, 06P, 07P, 08P, 09P, 10P, 11P, 12P, 13P, 14P, 15P, 16P, 17P, 18P, 19P, 20P, 21P, 22P, 23P, 24P
Colors Grey, Customize

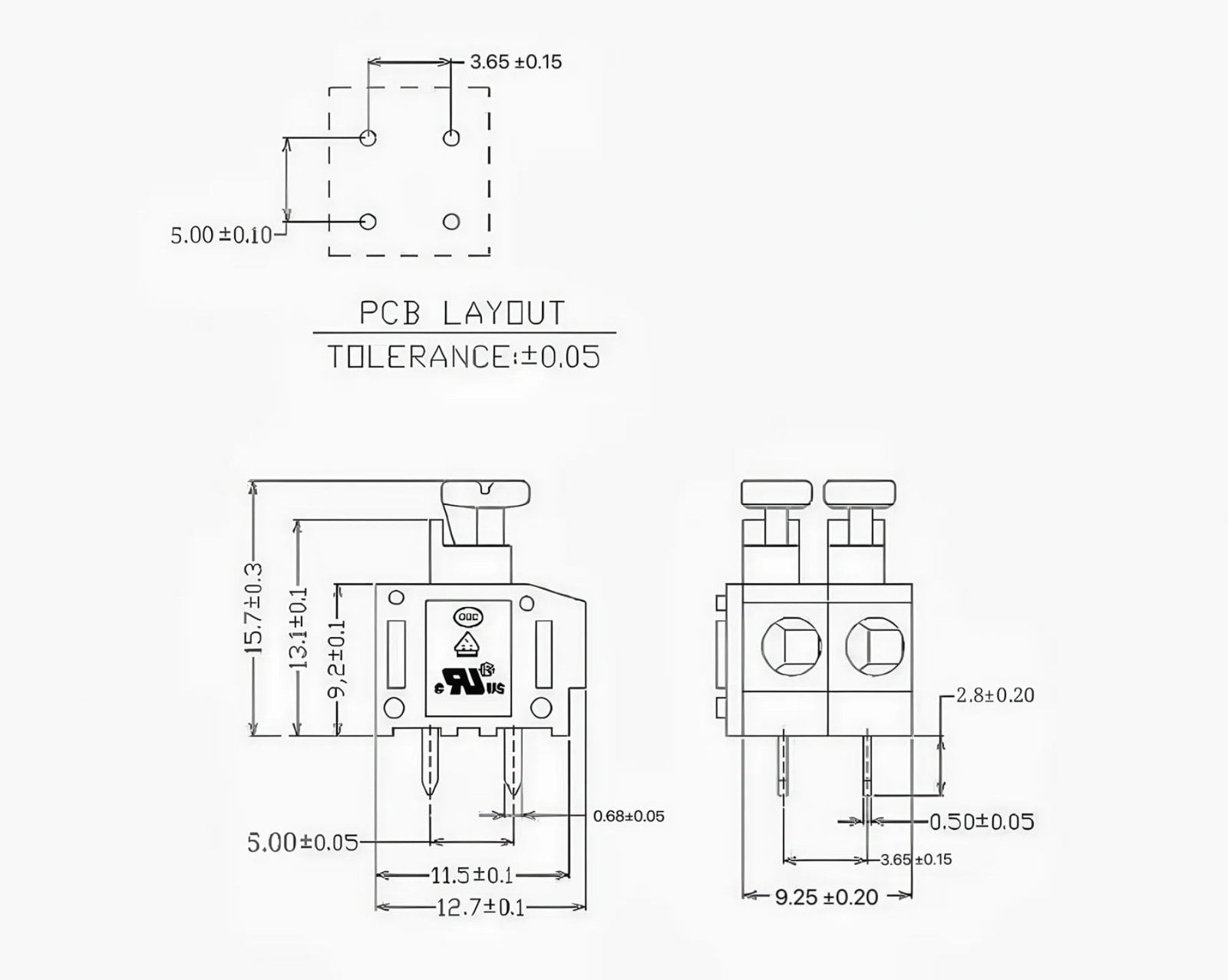

Technical Drawings



JPEG

Click image to enlarge

Downloads

CQC12003081248_0.pdf

PDF · 455 KB
