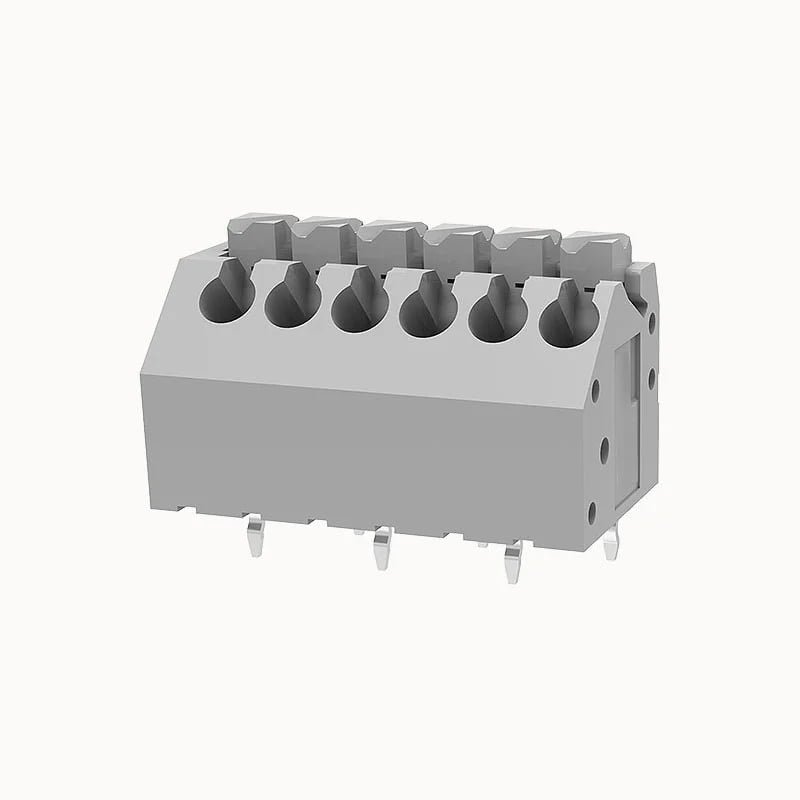

Spring Terminal Block CE Certified 3.5mm Pitch
Spring Terminal Blocks
Hover to zoom
Spring Terminal Blocks

Spring Terminal Block CE Certified 3.5mm Pitch

Model No. NT-250-3.5-XX

Poles — click to switch image

Colors

Pitch
3.5mm
Rated Voltage
250V
Rated Current
7A
Wire Range
22-13AWG
Download Datasheet
Certifications:

Overview & Advantages

Replacement Compatibility

  • Product Type: 3.5mm Pitch Fixed PCB Spring Terminal Block
  • Reference Model: NT-250-3.5-XX

Product Features

☑ Compact 3.5mm pitch design suitable for signal and low-power PCB connections.

☑ Push-in spring clamp structure ensures secure and vibration-resistant wire termination.

☑ Side-entry connection design helps reduce overall PCB installation height.

☑ Suitable for wave soldering assembly processes.

Typical Applications

  • Industrial control systems
  • Building automation equipment
  • Communication and telecommunication devices
  • PCB electronic modules and control boards

Technical Parameters

Electrical Parameters

Rated Voltage Rated Current
250V 7A

Product Properties

Connection Direction 90°
Type of Installation PCB welding
Connection Method Push-in spring connection
Pitch 3.5mm
Number of Potentials 3
Pluggable no
Number of Rows 1

Material Data

Housing Material PA66 Compliant with REACH/RoHS
Contact Material Copper alloy
Insulating Material Group 2-24P
Contact Point Metal Surface Tin-plated
Flammability Rating UL94V-0

General Specifications

Model No. NT-250-3.5-XX
Pitch 3.5mm
Rated Voltage 250V
Rated Current 7A
Wire Range 22-13AWG
Poles 01P, 02P, 03P, 04P, 05P, 06P, 07P, 08P, 09P, 10P, 11P, 12P, 13P, 14P, 15P, 16P, 17P, 18P, 19P, 20P, 21P, 22P, 23P, 24P
Colors Grey, Black, Customize

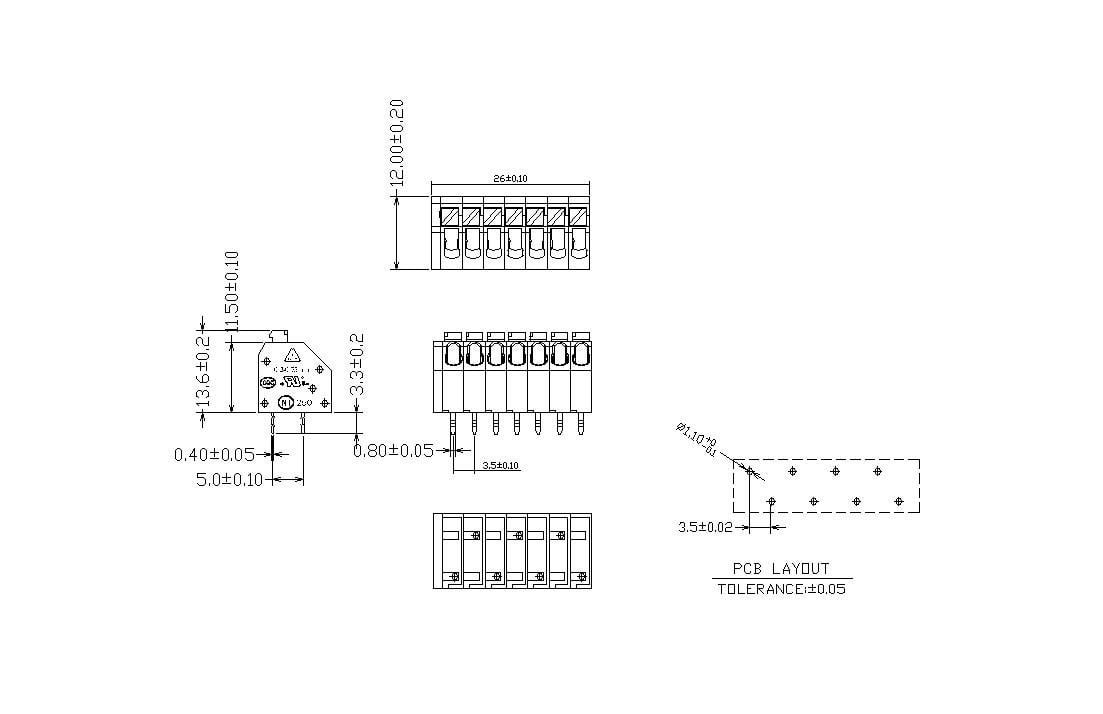

Technical Drawings



JPEG

Click image to enlarge

Downloads

CQC12003081251_1.pdf

PDF · 380 KB
