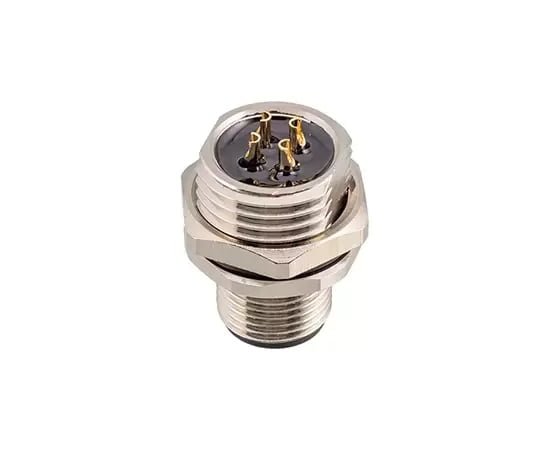

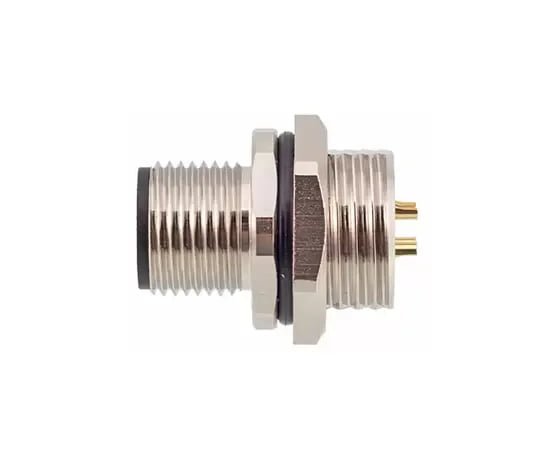

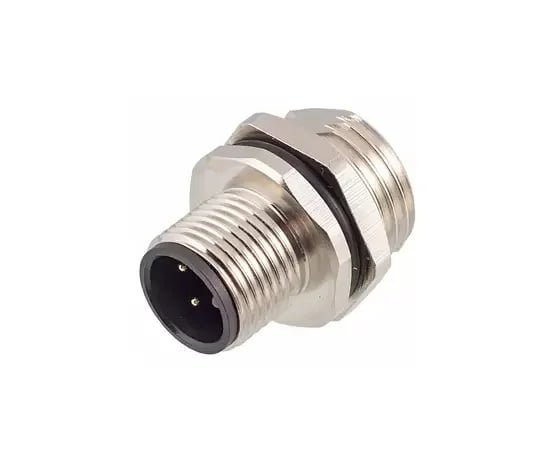

M12 male front panel mount socket designed for industrial signal and power connections. It follows IEC 61076-2-101 standard and is widely used in automation and control systems requiring stable and reliable connectivity.
This connector features a front-mounted socket design with solder termination, supporting multiple pin configurations and standard M12 series applications.
Suitable for industrial environments where secure panel installation and consistent electrical performance are required.
| Product Name | M12 Male Front Mount Panel Socket Connector – Solder, M16×1.5 / PG9 |
| Series | M12 |
| Gender | Male |
| Number of Pins | 2, 3, 4, 5, 6, 8, 12, 17 |
| Coding | A-Coded, B-Coded, C-Coded, D-Coded |
| Wiring Method | PCB Solder Type |
| Cable Material | PVC, PUR |
| Thread Specification | Array |
| PG7/PG9 | PG9 |
| Shielded | Shielded, Unshielded |
| Category | M12 Connectors |
| Shell Material | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator Material | PA/TPU |
| Sealing Material | Epoxy resin/Rubber |
| Contact Material | Brass/Phosphorus copper gold-plated |
| Degree of Protection | IP65/IP67 |
| Insulation Resistance | ≥100 mΩ |
| Contact Resistance | ≤5 mΩ |
| Insertion/Withdrawal Cycles | ≥500 Cycles |
| Operating Temperature | -25℃ ~ +80℃ |

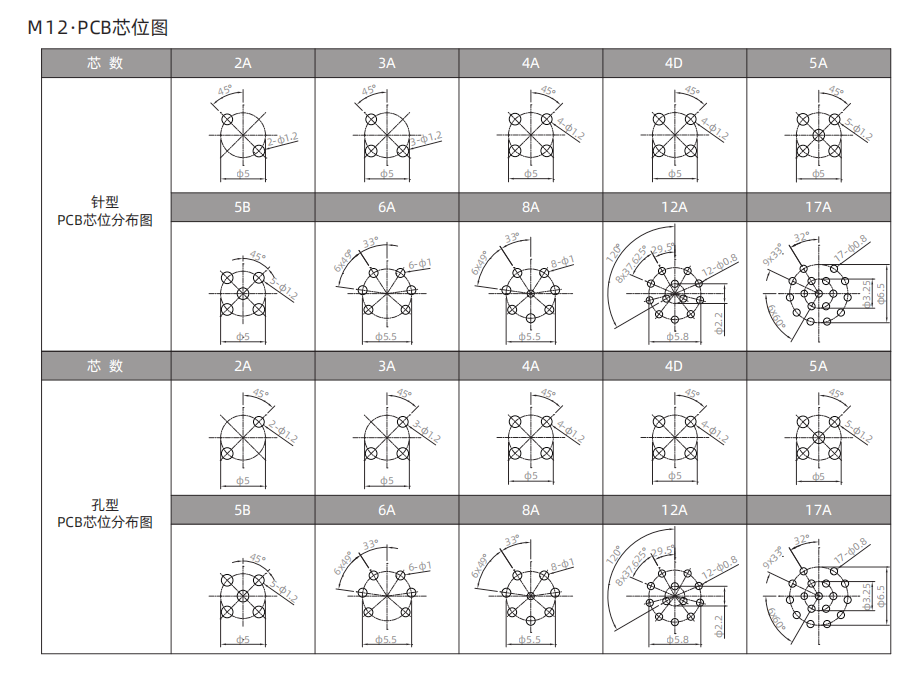

Click image to zoom · All dimensions in mm
Engineered for demanding industrial environments across a wide range of applications.
Reliable signal and power for PLC systems, control cabinets, and automated production lines.
High-density connectivity for proximity sensors, photoelectric sensors, and actuators.
Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.
IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.
Need a Custom Solution?
OEM/ODM customization available — pin configuration, cable length, special coatings.
