M12 Series M12 Connectors Shielded

M12 Data Type Front Mount Female Socket – PCB M16×1.5

Pins
8
Coding
X-Coded
Gender
Female
Thread
Array
Wiring
PCB Solder Type

Select Variant

Number of Pins

Coding

Request a Quote

Product Overview

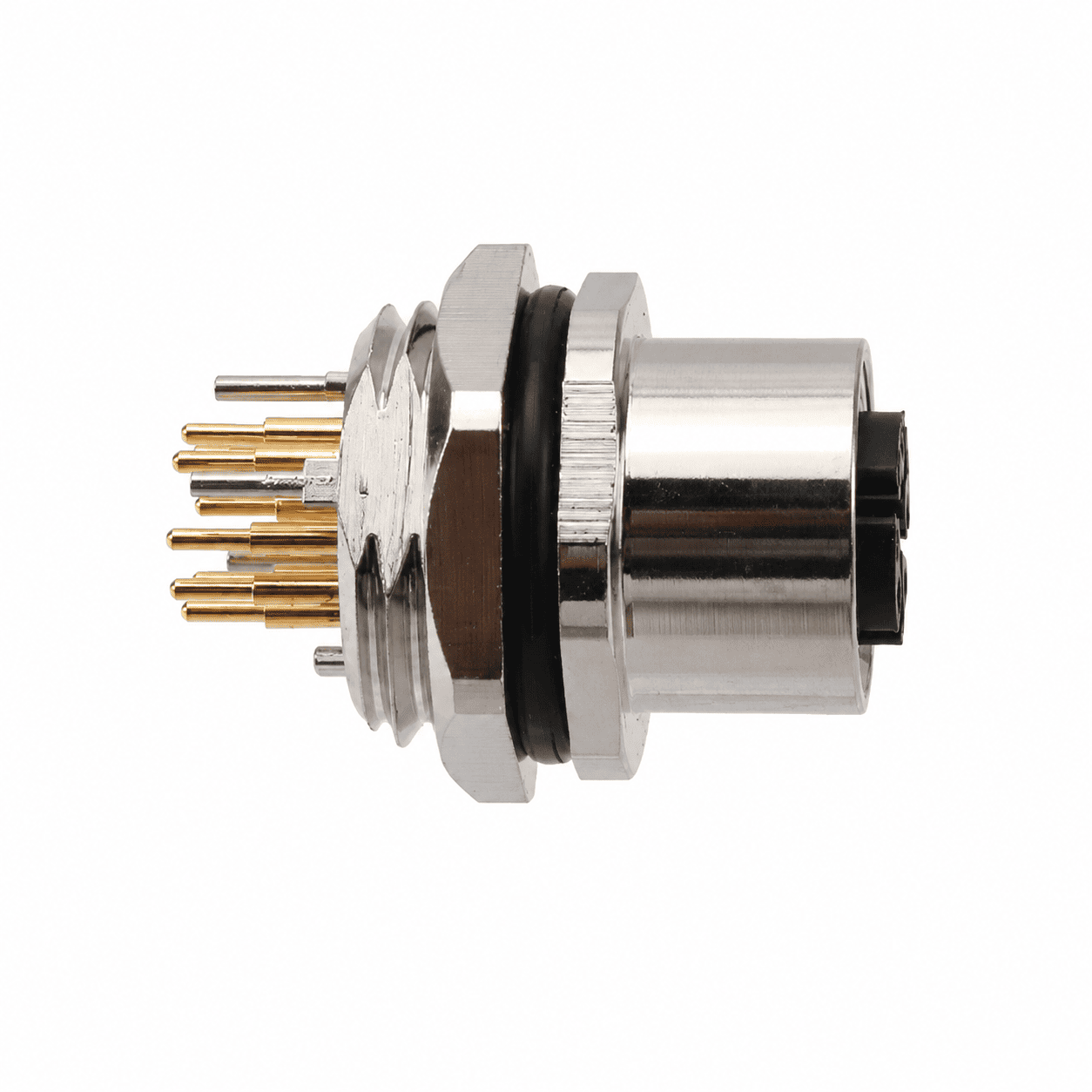

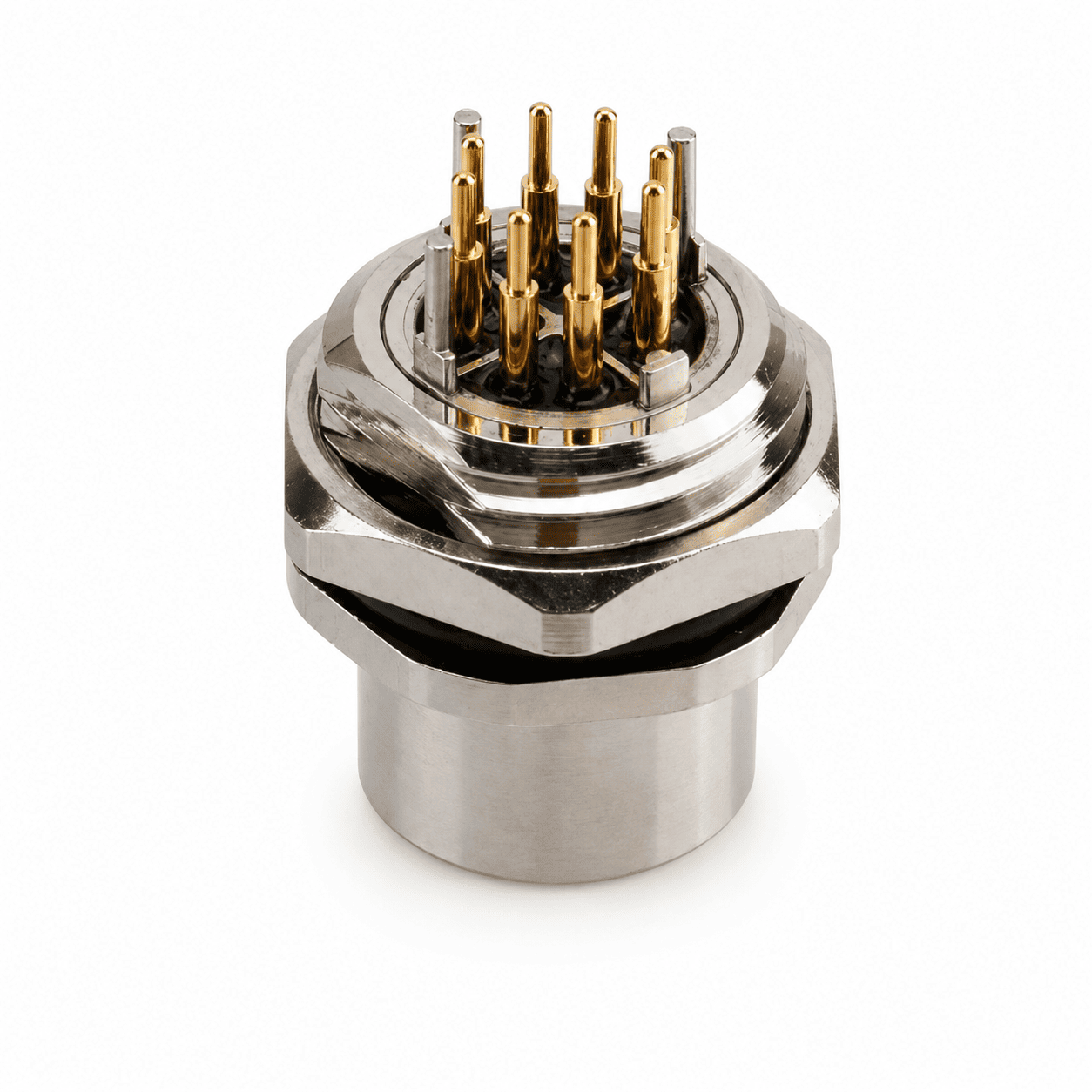

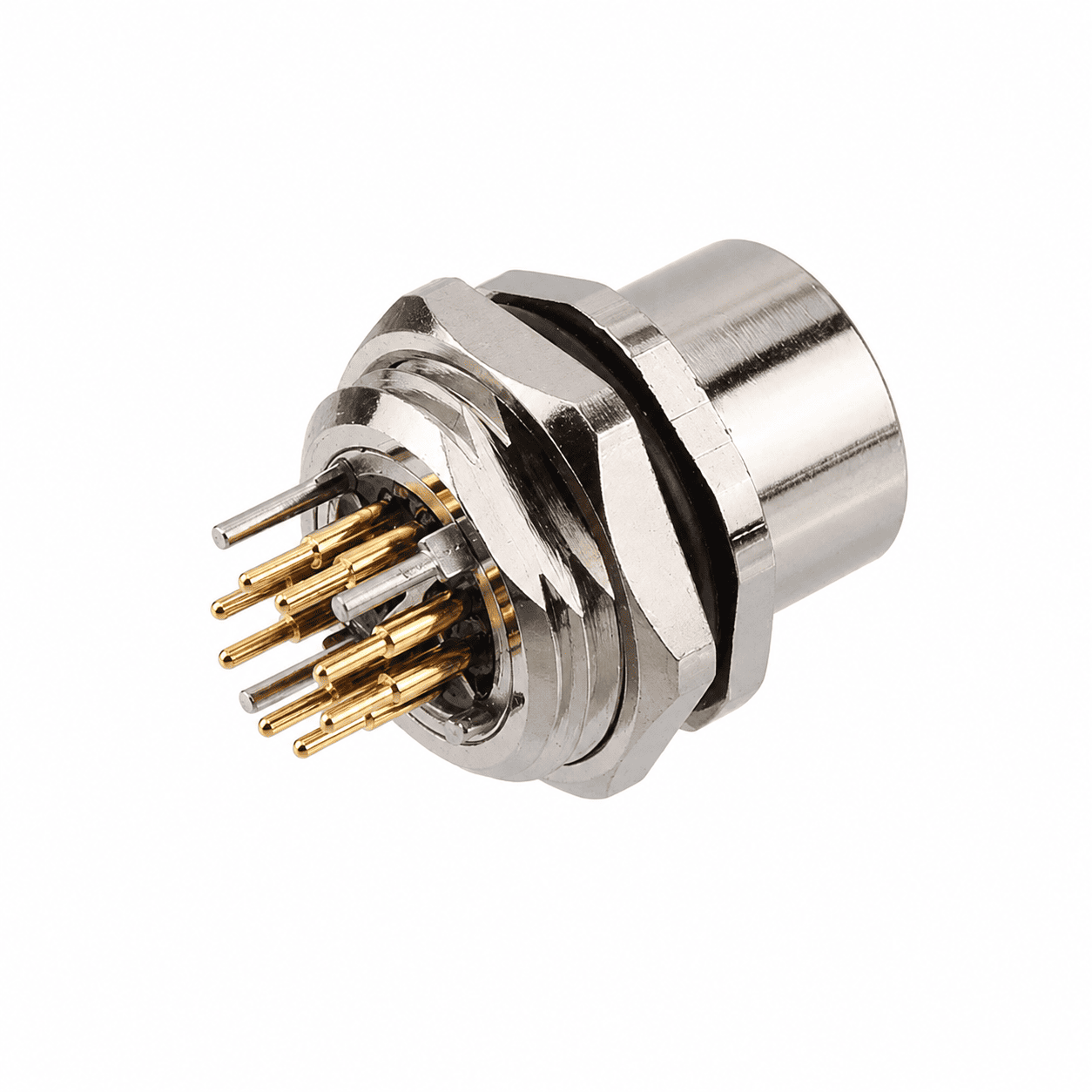

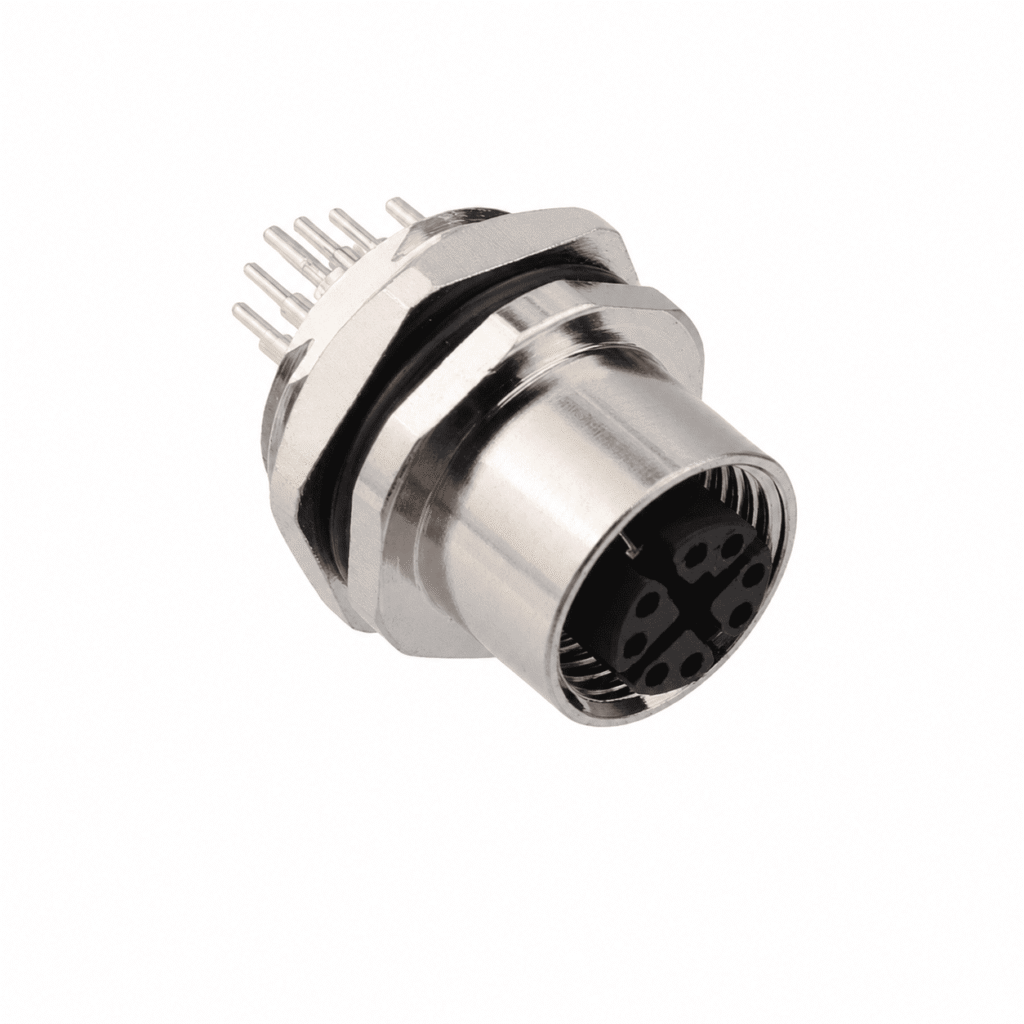

The M12 Data Type Front Mount Female Socket – PCB M16×1.5 is designed for direct PCB integration in industrial data communication and automation equipment.

Featuring an M12 female interface, front-mount panel structure, PCB termination, and M16×1.5 mounting thread, the socket provides a compact and reliable connection between external M12 data cables and internal printed circuit boards.

The front-mount design allows the receptacle to be securely installed from the front side of an equipment panel or enclosure, while the PCB contacts provide direct board-level connection without additional cable wiring.

Multiple data coding and contact configurations are available, making the socket suitable for industrial communication equipment, machine vision systems, controllers, industrial computers, and other automation applications.

Technical Specifications

Specifications for M12 Data Type Front Mount Female Socket – PCB M16×1.5
Product Name M12 Data Type Front Mount Female Socket – PCB M16×1.5
Series M12
Structure Type Front Mount Socket
Gender Female
Number of Pins 8
Coding X-Coded
Wiring Method PCB Solder Type
Thread Specification Array
PG7/PG9 PG9
Shielded Shielded
Category M12 Connectors

Electrical & Mechanical Parameters

Shell Material Brass nickel-plated/Zinc alloy nickel-plated/PA
Insulator Material PA/TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphor Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Data Type Front Mount Female Socket – PCB M16×1.5 Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine
