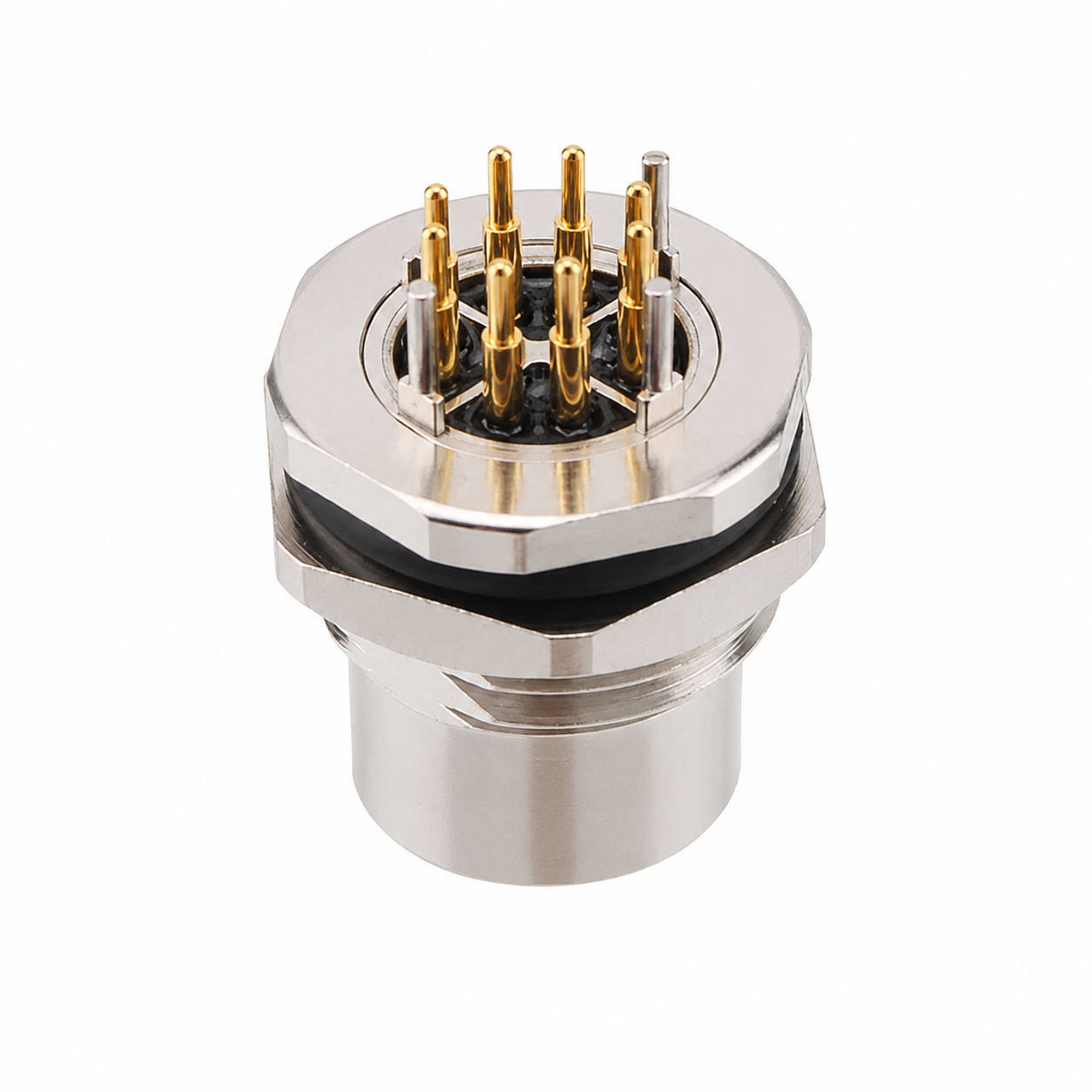

The M12 Data Type X-Coded Back Mount Female Metal Socket – PCB M16×1.5 is designed for reliable high-speed data transmission in industrial automation and Ethernet communication systems.

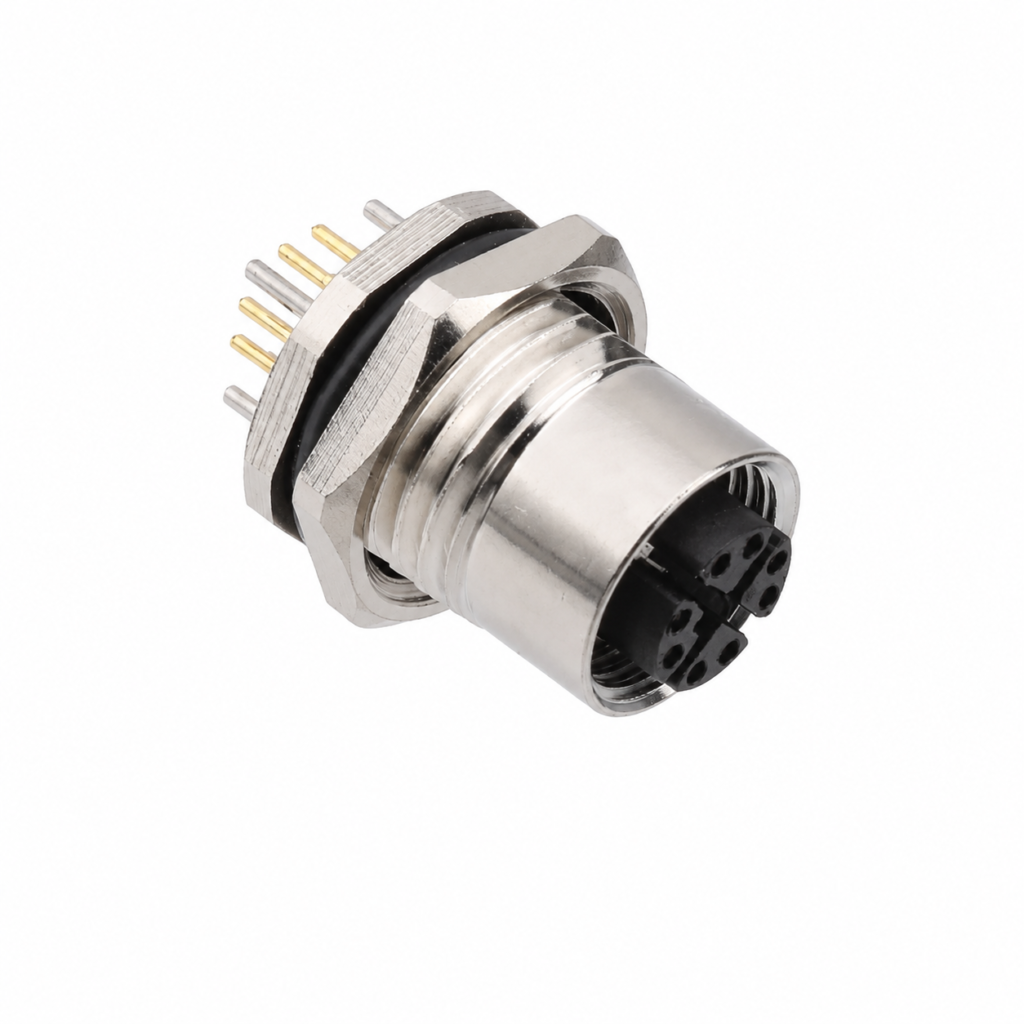

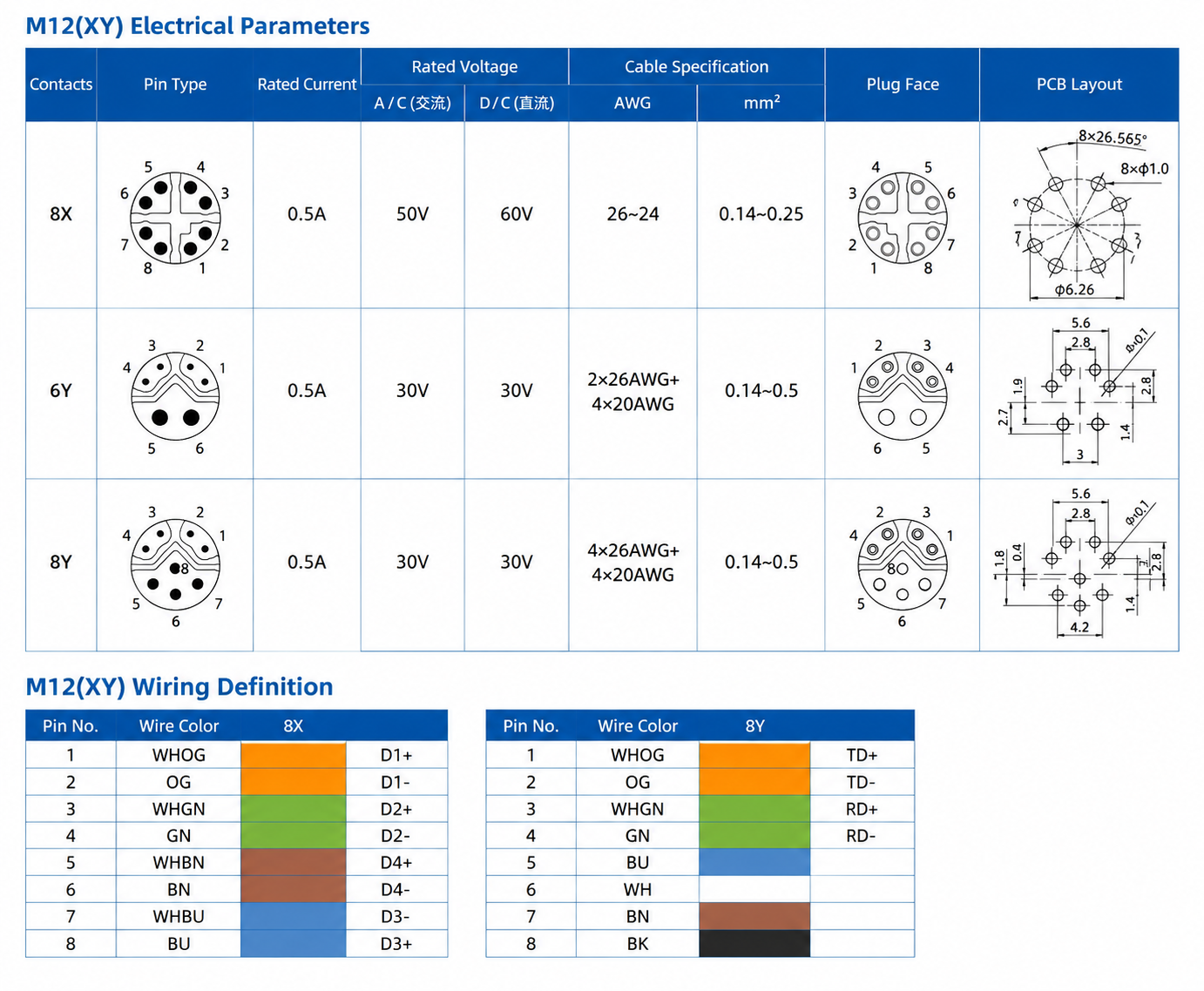

Its X-coded 8-pin interface separates the four data pairs through an internal cross-shaped structure, helping maintain signal integrity and reduce interference between contact pairs. The metal housing provides effective shielding for stable data transmission in electrically demanding industrial environments.

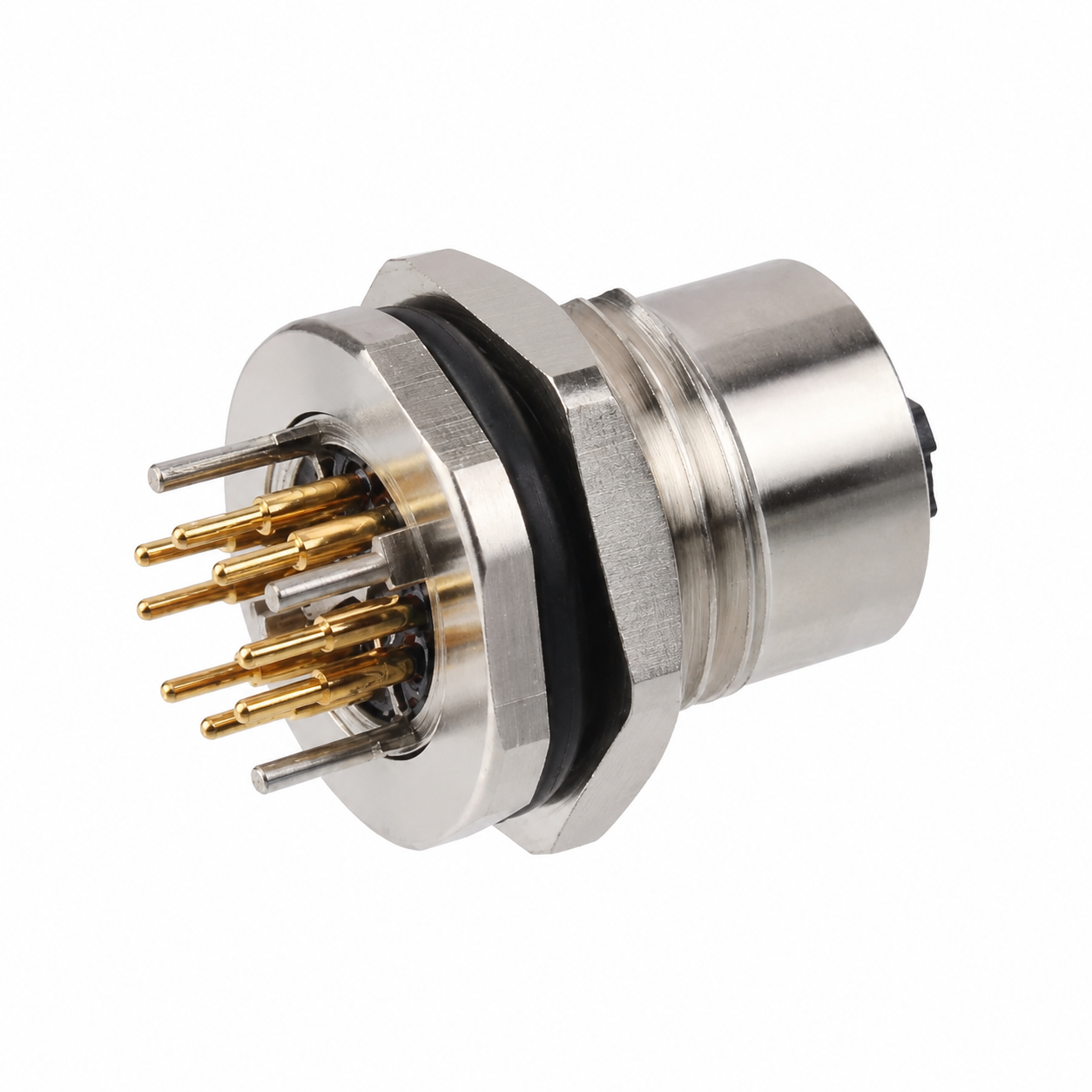

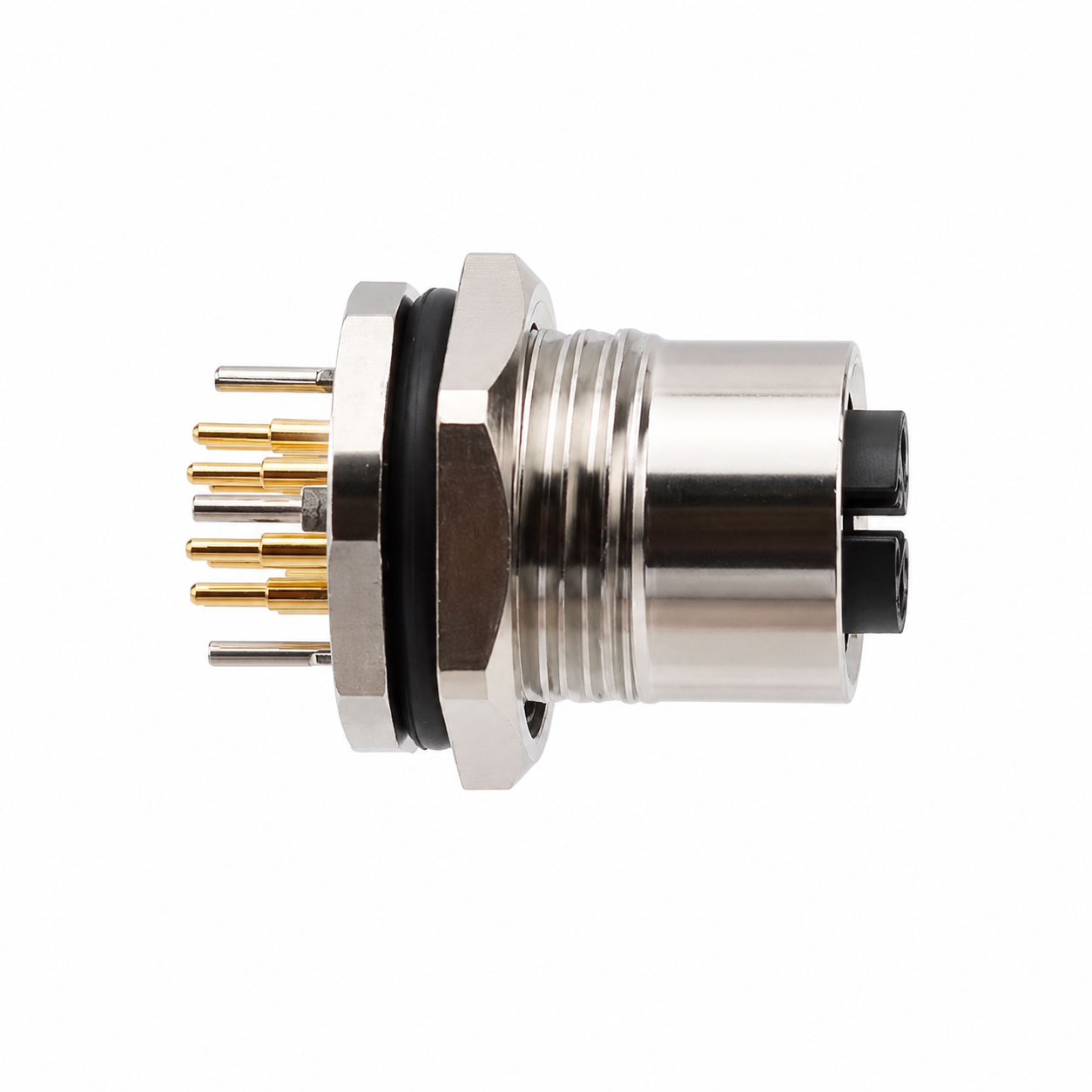

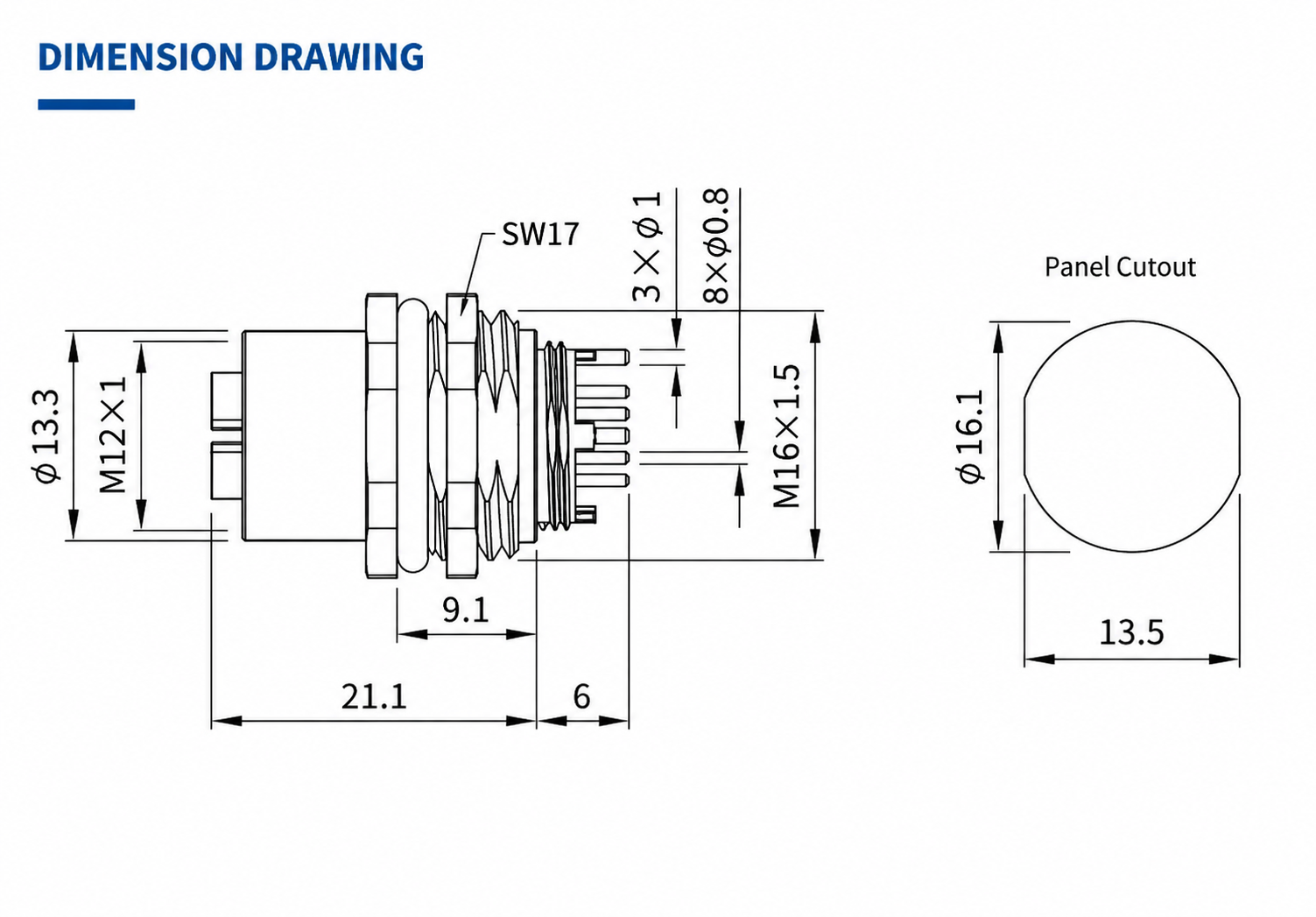

The back mount design allows the socket to be installed from the rear side of an equipment panel. Its PCB termination enables direct soldering to a printed circuit board, supporting compact equipment design, efficient assembly, and reliable electrical performance.
The connector uses an M16×1.5 mounting thread and follows IEC 61076-2-109, which covers M12×1 data connectors designed for transmission frequencies up to 500 MHz.
