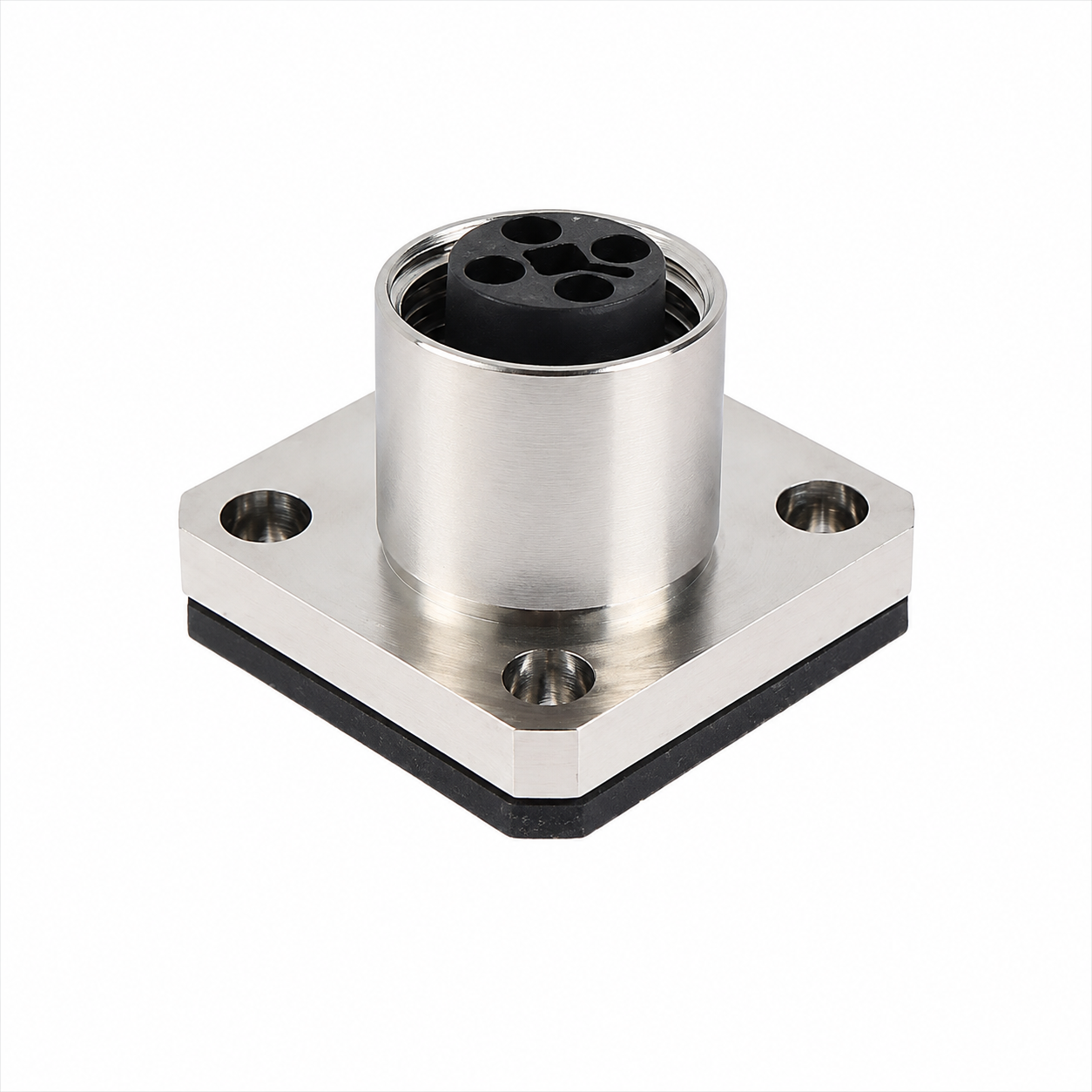

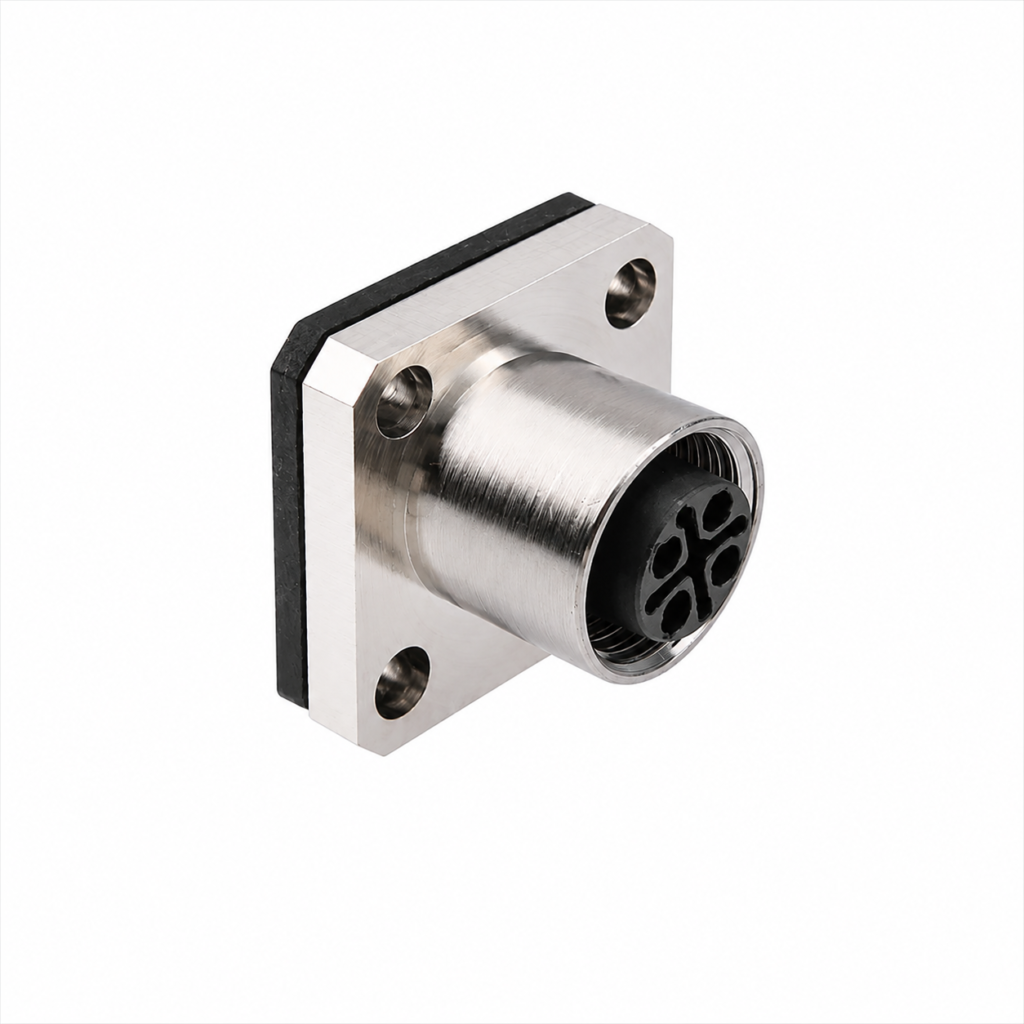

M12 电源型方形法兰母插座是一款面板安装式电源连接器，专为工业设备、配电模块、电机系统和现场设备而设计。它采用 14×14 方形法兰结构、母触点和焊接端接，可实现牢固的 PCB 或内部导线连接。
这款 M12 电源插座有 S 编码、T 编码、K 编码和 L 编码等多种配置，适用于紧凑型工业应用中的交流或直流电源传输，满足可靠面板安装和防水保护的要求。
| Product Name | M12 Power Type Square Flange Female Socket |
| Series | M12 |
| Structure Type | 14×14 Square Flange Socket |
| Gender | Female |
| Number of Pins | 2, 3, 4, 2+PE, 3+PE, 4+PE |
| Coding | S-Coded, T-Coded, K-Coded, L-Coded |
| Wiring Method | Solder Type |
| Shielded | Unshielded |
| Category | M12 Connectors |
| Shell Material | Brass nickel-plated / Zinc alloy nickel-plated / PA |
| Insulator Material | PA / TPU |
| Sealing Material | Epoxy resin / Rubber |
| Contact Material | Brass / Phosphor copper, gold-plated |
| Degree of Protection | IP65 / IP67 |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Insertion/Withdrawal Cycles | ≥500 mating cycles |
| Operating Temperature | -25°C to +80°C |

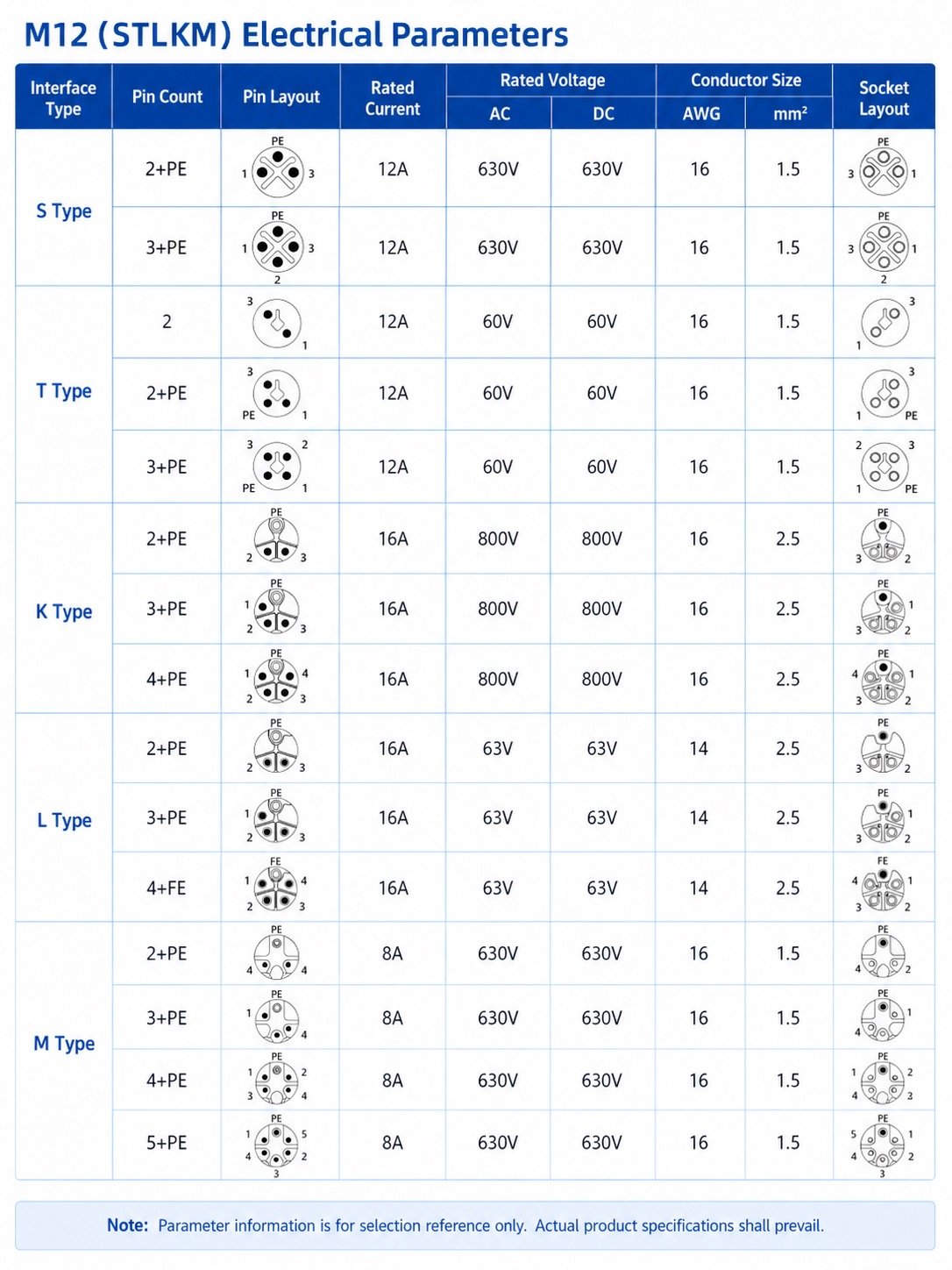

Click image to zoom · All dimensions in mm
Engineered for demanding industrial environments across a wide range of applications.
Reliable signal and power for PLC systems, control cabinets, and automated production lines.
High-density connectivity for proximity sensors, photoelectric sensors, and actuators.
Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.
IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.
Need a Custom Solution?
OEM/ODM customization available — pin configuration, cable length, special coatings.
