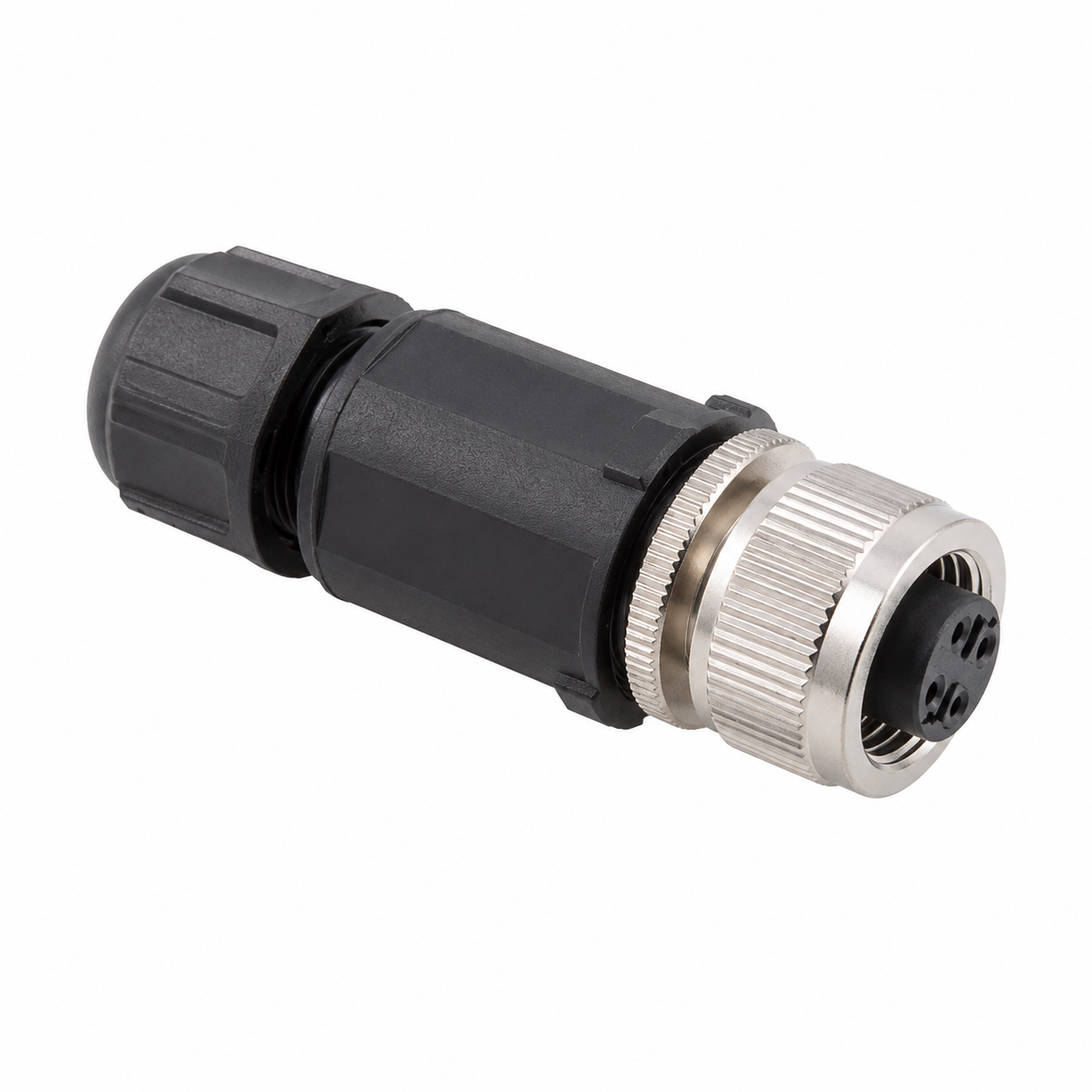

M12 straight female plastic assembled plug for industrial signal and power applications. Designed for use in automation and control systems with stable and reliable performance under IEC standards.
Product Overview
Technical Specifications
| Product Name | M12 Straight Female Plastic Assembled Plug |
| Series | M12 |
| Structure Type | Plastic Assembled Plug |
| Gender | Female |
| Number of Pins | 2, 3, 4, 5, 6, 8, 12, 17 |
| Coding | A-Coded, B-Coded, C-Coded, D-Coded |
| Orientation | Straight |
| Wiring Method | Solder Type |
| Cable Material | PVC |
| PG7/PG9 | PG7 |
| Shielded | Shielded, Unshielded |
| Category | M12 Connectors |
Electrical & Mechanical Parameters
| Shell Material | Brass nickel plating/zinc alloy nickel/PA |
| Insulator Material | PA/TPU |
| Sealing Material | Epoxy Resin / Rubber |
| Contact Material | Brass / Phosphor Bronze (Gold Plated) |
| Degree of Protection | IP65 / IP67 |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≥ 100 MΩ |
| Insertion/Withdrawal Cycles | ≥ 500 mating cycles |
| Operating Temperature | 25°C to +80°C |
Technical Drawing
Click image to zoom · All dimensions in mm
Application Solutions
Engineered for demanding industrial environments across a wide range of applications.
Industrial Automation
Reliable signal and power for PLC systems, control cabinets, and automated production lines.
PLC Systems
Control Cabinets
I/O Modules
Sensor & Actuator Networks
High-density connectivity for proximity sensors, photoelectric sensors, and actuators.
Proximity Sensors
Vision Systems
Actuators
Robotics & Smart Manufacturing
Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.
Robotic Arms
Cobots
AGV Systems
Outdoor & Harsh Environments
IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.
IP67/IP68
Food & Beverage
Marine
Need a Custom Solution?
OEM/ODM customization available — pin configuration, cable length, special coatings.
