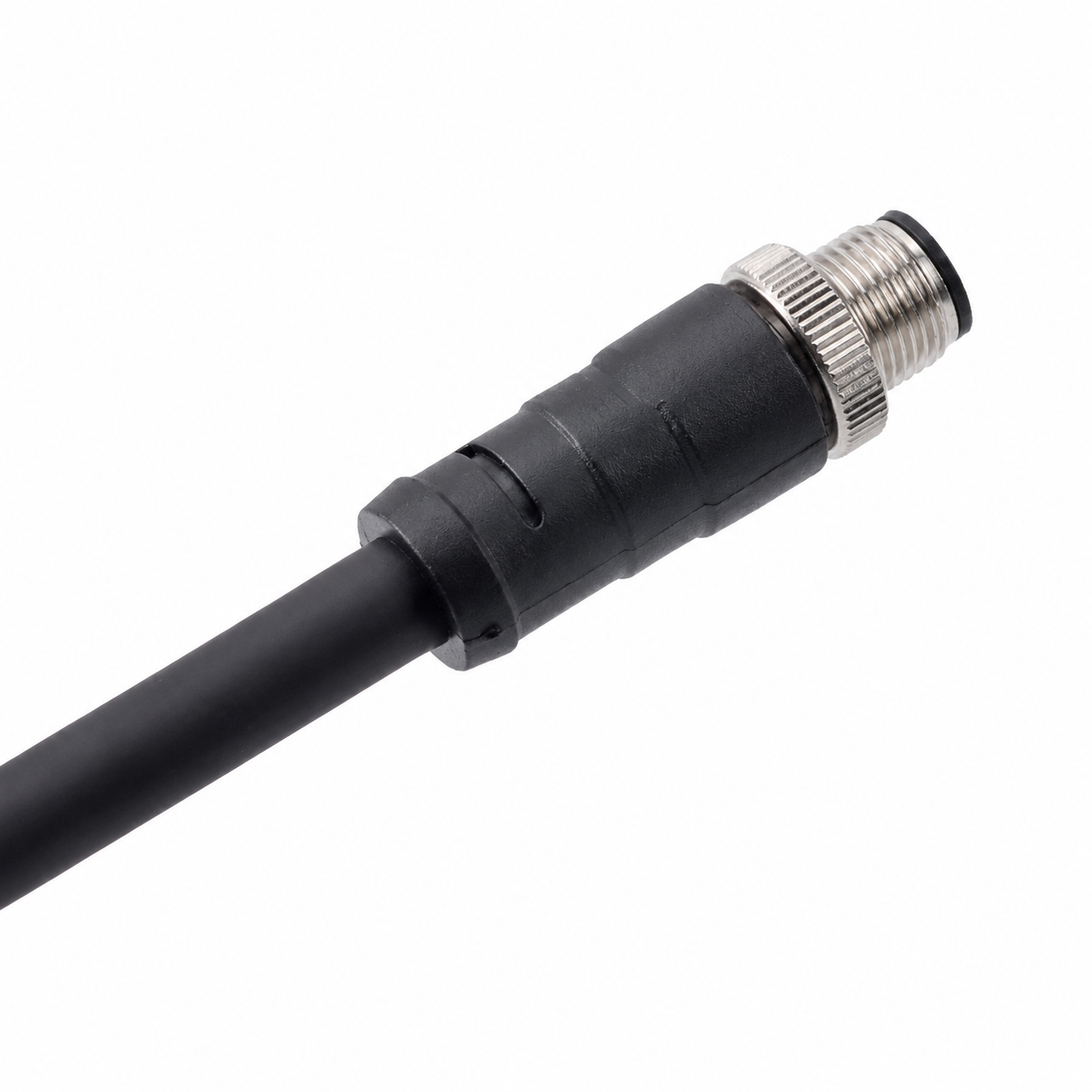

M12 Power Type Straight Male Overmolded Plug

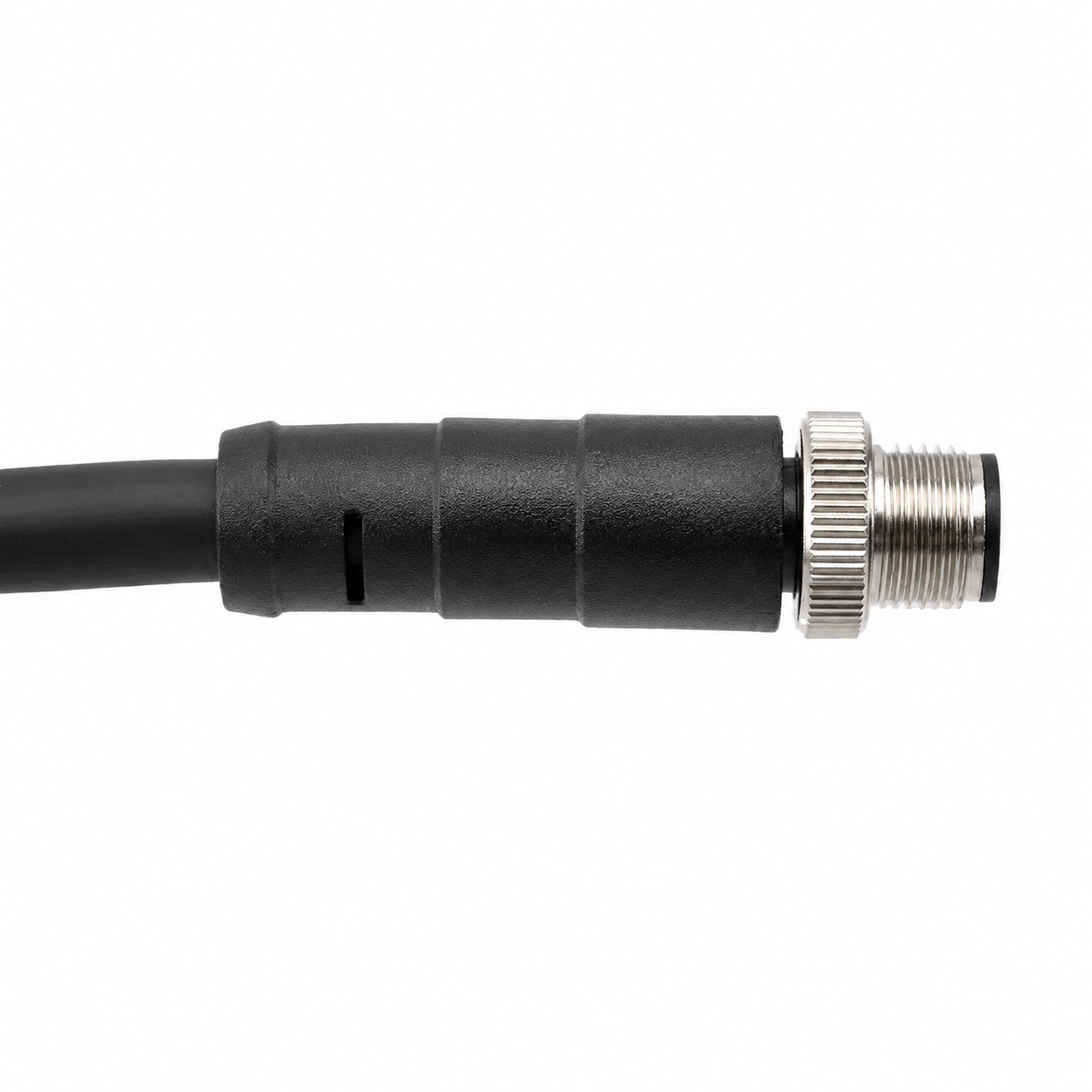

M12 Power Type Straight Male Overmolded Plug

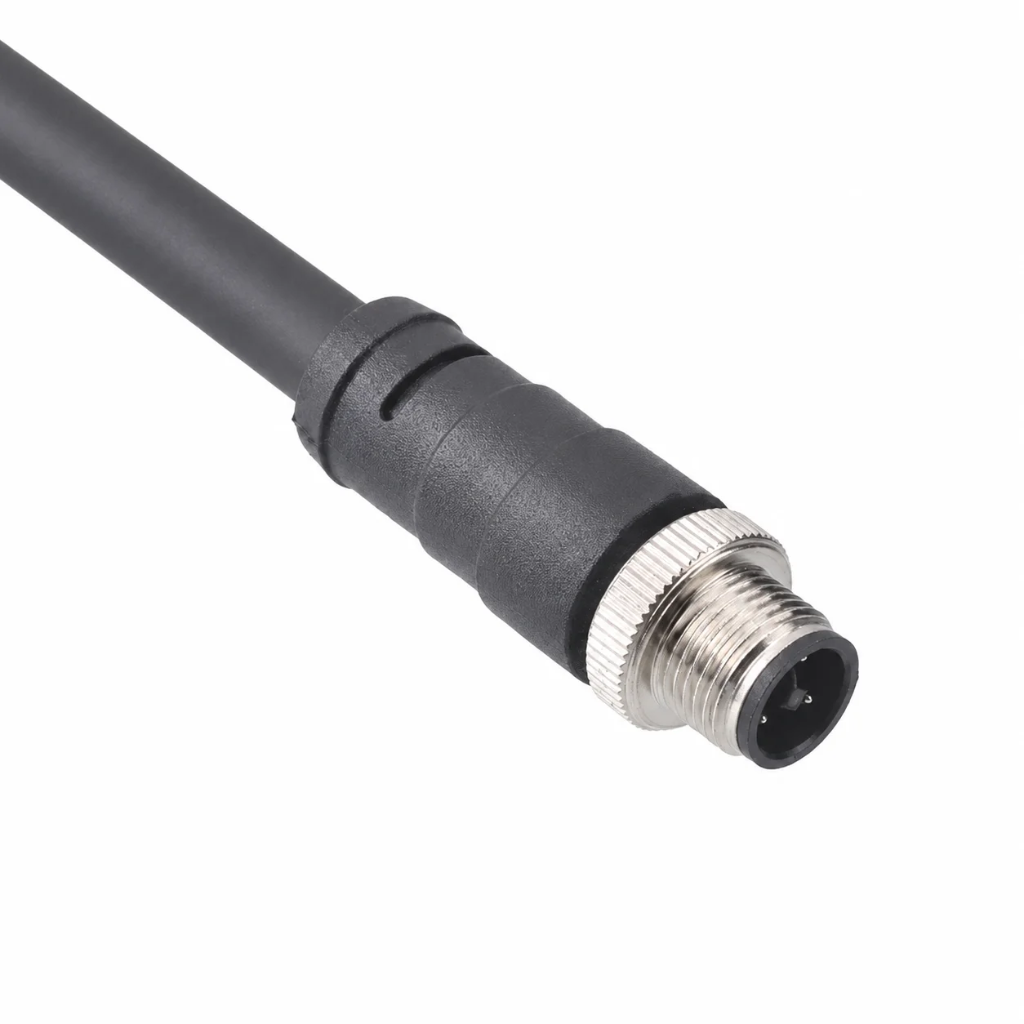

M12 Power Type Straight Male Overmolded Plug
M12 Power Type Straight Male Overmolded Plug thumbnail
M12 Power Type Straight Male Overmolded Plug thumbnail
M12 Power Type Straight Male Overmolded Plug thumbnail
M12 Series M12 Connectors Unshielded

M12 Power Type Straight Male Overmolded Plug

Pins
2, 3, 4, 5, 6, 2+PE, 3+PE, 4+PE
Coding
S-Coded, T-Coded, K-Coded, L-Coded
Gender
Male
Orientation
Straight
Wiring
Solder Type

Select Variant

Number of Pins

Coding

Product Overview

The M12 Power Type Straight Male Overmolded Plug is designed for reliable power transmission in industrial automation systems, offering a stable and durable connection in a wide range of industrial applications.

Its straight overmolded structure ensures easy installation and secure cable routing, making it suitable for standard wiring environments where space is not restricted.

Manufactured according to IEC 61076-2-101 standard, this connector guarantees global compatibility and consistent performance in demanding industrial conditions.

Technical Specifications

Specifications for M12 Power Type Straight Male Overmolded Plug
Product Name M12 Power Type Straight Male Overmolded Plug
Series M12
Structure Type Straight Overmolded Plug
Gender Male
Number of Pins 2, 3, 4, 5, 6, 2+PE, 3+PE, 4+PE
Coding S-Coded, T-Coded, K-Coded, L-Coded
Orientation Straight
Wiring Method Solder Type
Cable Material PVC, PUR
Shielded Unshielded
Category M12 Connectors

Electrical & Mechanical Parameters

Shell Material Brass (Nickel-plated) / Zinc Alloy (Nickel-plated) / PA
Insulator Material PA / TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphorus Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥ 100 MΩ
Contact Resistance ≤ 5 mΩ
Insertion/Withdrawal Cycles ≥ 500 mating cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Power Type Straight Male Overmolded Plug Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine

Need a Custom Solution?

OEM/ODM customization available — pin configuration, cable length, special coatings.

Contact Engineering

Request a Quote

Fill in your requirements — we reply within 24 hours.
