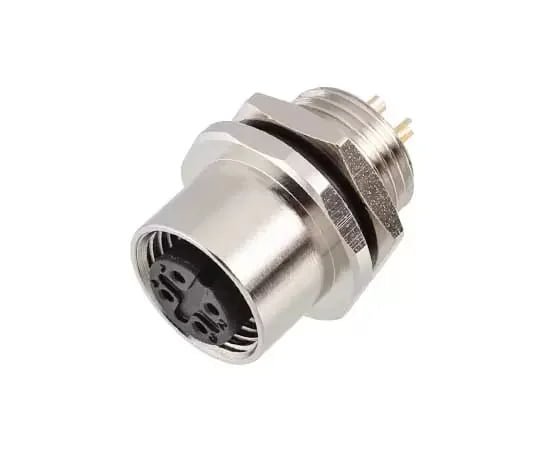

M12 female front mount panel socket connector designed for reliable signal and power transmission in industrial automation applications. Featuring a front panel mounting structure with solder termination, this connector is suitable for control systems, sensors, and industrial equipment requiring stable connectivity.
Compatible with standard M12 series applications and compliant with IEC 61076-2-101 standard.
| Product Name | M12 Female Front Mount Panel Socket Connector – Solder, M16×1.5 / PG9 |
| Series | M12 |
| Gender | Female |
| Number of Pins | 2, 3, 4, 5, 6, 8, 12, 17 |
| Coding | A-Coded, B-Coded, C-Coded, D-Coded |
| Wiring Method | PCB Solder Type |
| Cable Material | PVC, PUR |
| Thread Specification | Array |
| PG7/PG9 | PG9 |
| Shielded | Shielded, Unshielded |
| Category | M12 Connectors |
| Shell Material | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator Material | PA/TPU |
| Sealing Material | Epoxy resin/Rubber |
| Contact Material | Brass/Phosphorus copper gold-plated |
| Degree of Protection | IP65/IP67 |
| Insulation Resistance | ≥100 mΩ |
| Contact Resistance | ≤5 mΩ |
| Insertion/Withdrawal Cycles | ≥500 Cycles |
| Operating Temperature | -25℃ ~ +80℃ |
Click image to zoom · All dimensions in mm
Engineered for demanding industrial environments across a wide range of applications.
Reliable signal and power for PLC systems, control cabinets, and automated production lines.
High-density connectivity for proximity sensors, photoelectric sensors, and actuators.
Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.
IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.
Need a Custom Solution?
OEM/ODM customization available — pin configuration, cable length, special coatings.
