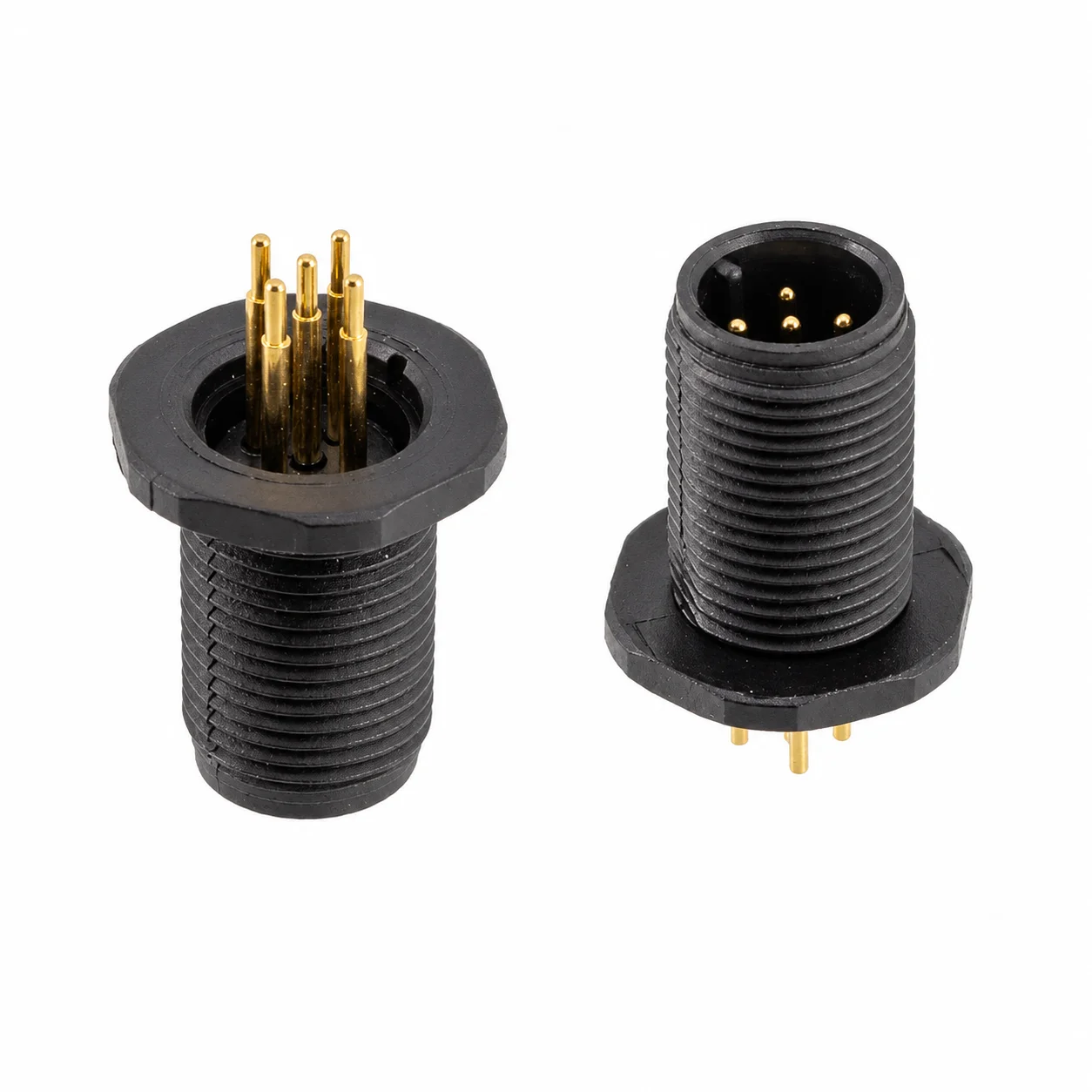

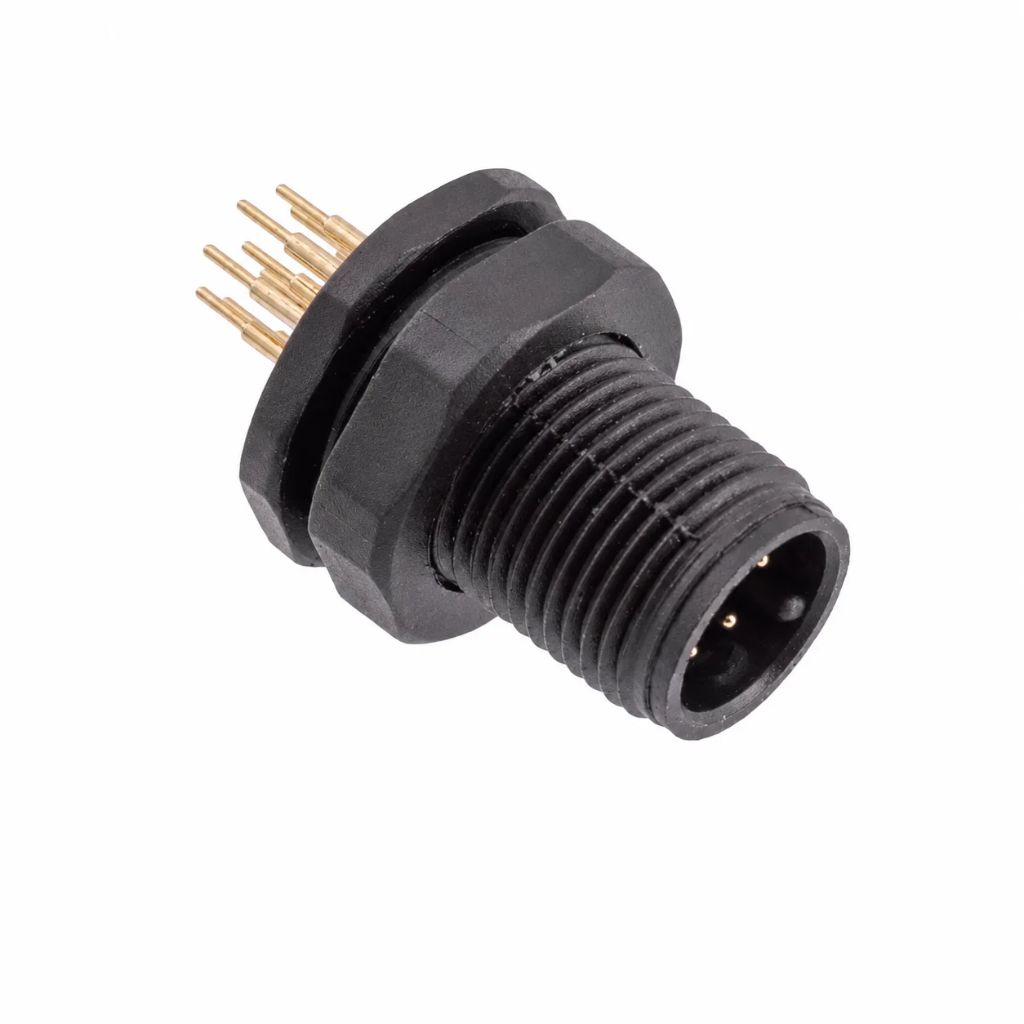

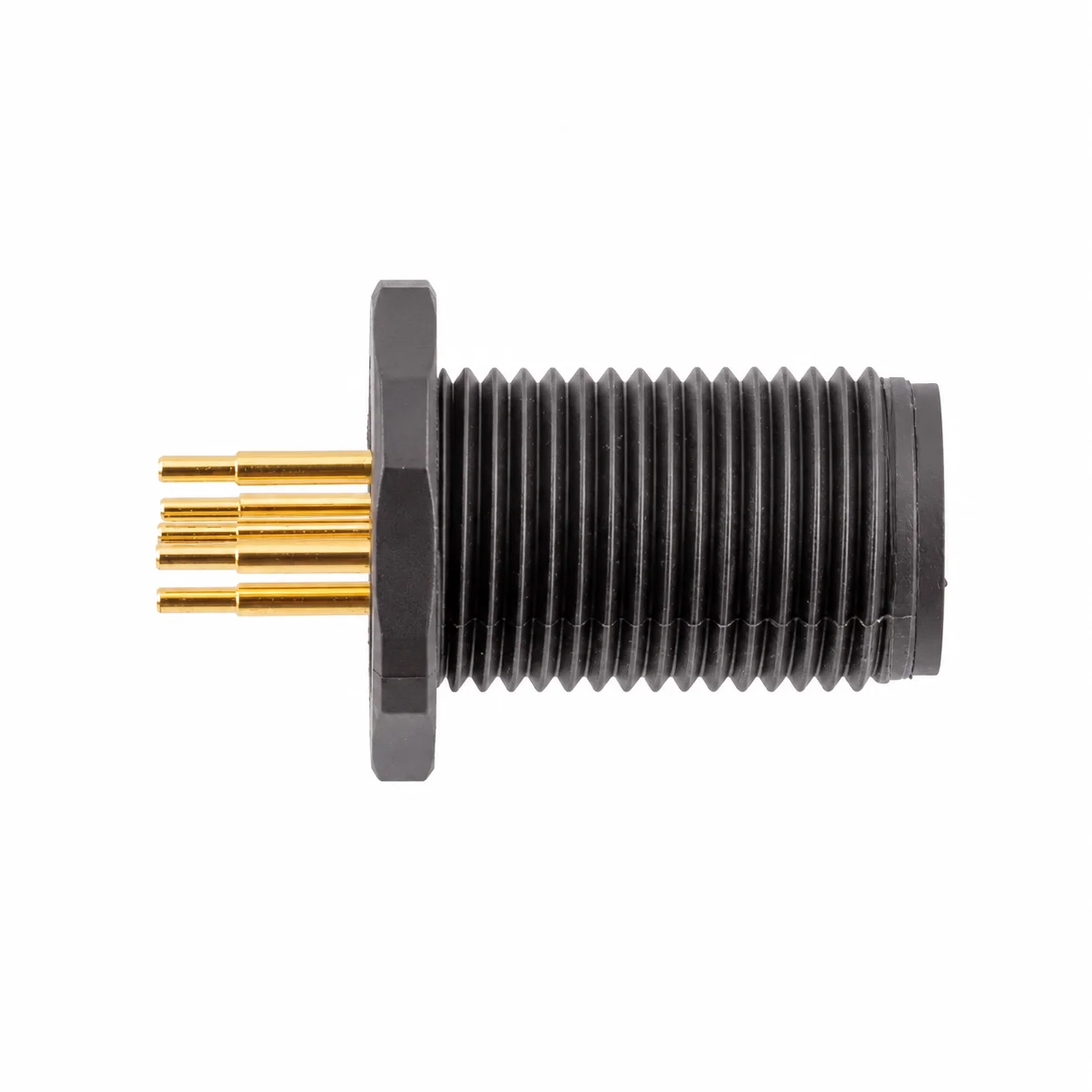

M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1
M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1
M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1
M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1 thumbnail
M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1 thumbnail
M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1 thumbnail
M12 Series M12 Connectors Unshielded

M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1

Pins
2, 3, 4, 5, 6, 8, 12, 17
Coding
A-Coded, B-Coded, D-Coded
Gender
Male
Thread
Array
Wiring
PCB Solder Type

Select Variant

Number of Pins

Coding

Request a Quote

Product Overview

The M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1 is designed for signal transmission applications in industrial automation systems, providing a reliable panel connection solution for sensors, controllers, and industrial equipment.

Featuring a back mount structure with PCB termination, this connector allows direct installation onto circuit boards while saving front panel space and providing a compact and secure connection interface.

Manufactured according to IEC 61076-2-101, this M12 connector ensures compatibility with standard industrial interfaces and delivers stable signal transmission performance in demanding environments.·

Technical Specifications

Specifications for M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1
Product Name M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1
Series M12
Structure Type Back Mount Socket
Gender Male
Number of Pins 2, 3, 4, 5, 6, 8, 12, 17
Coding A-Coded, B-Coded, D-Coded
Wiring Method PCB Solder Type
Cable Material PVC, PUR
Thread Specification Array
Shielded Unshielded
Category M12 Connectors

Electrical & Mechanical Parameters

Shell Material Brass (Nickel-plated) / Zinc Alloy (Nickel-plated) / PA
Insulator Material PA / TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphor Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Signal Type Back Mount Male Plastic Socket – PCB M12×1 Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine
