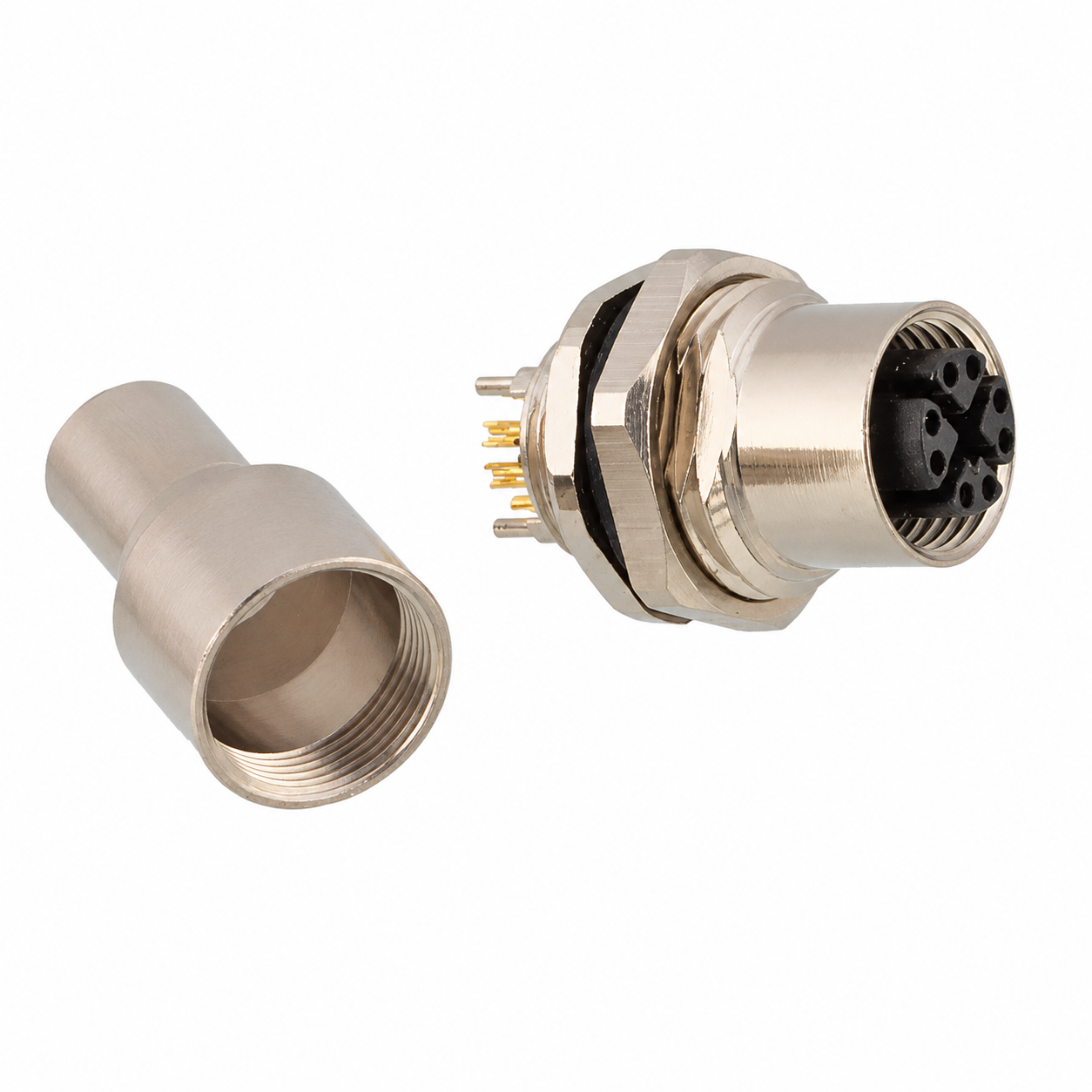

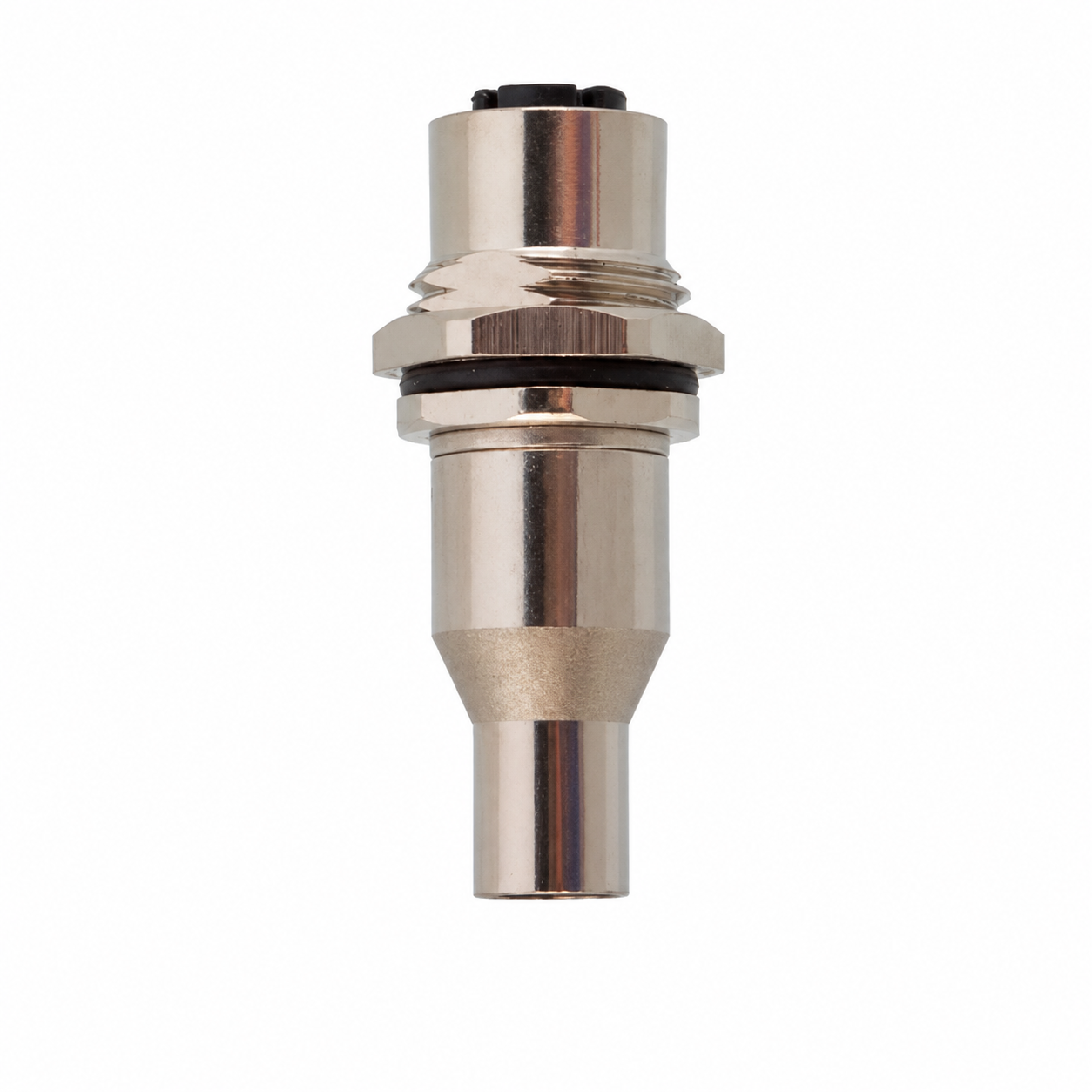

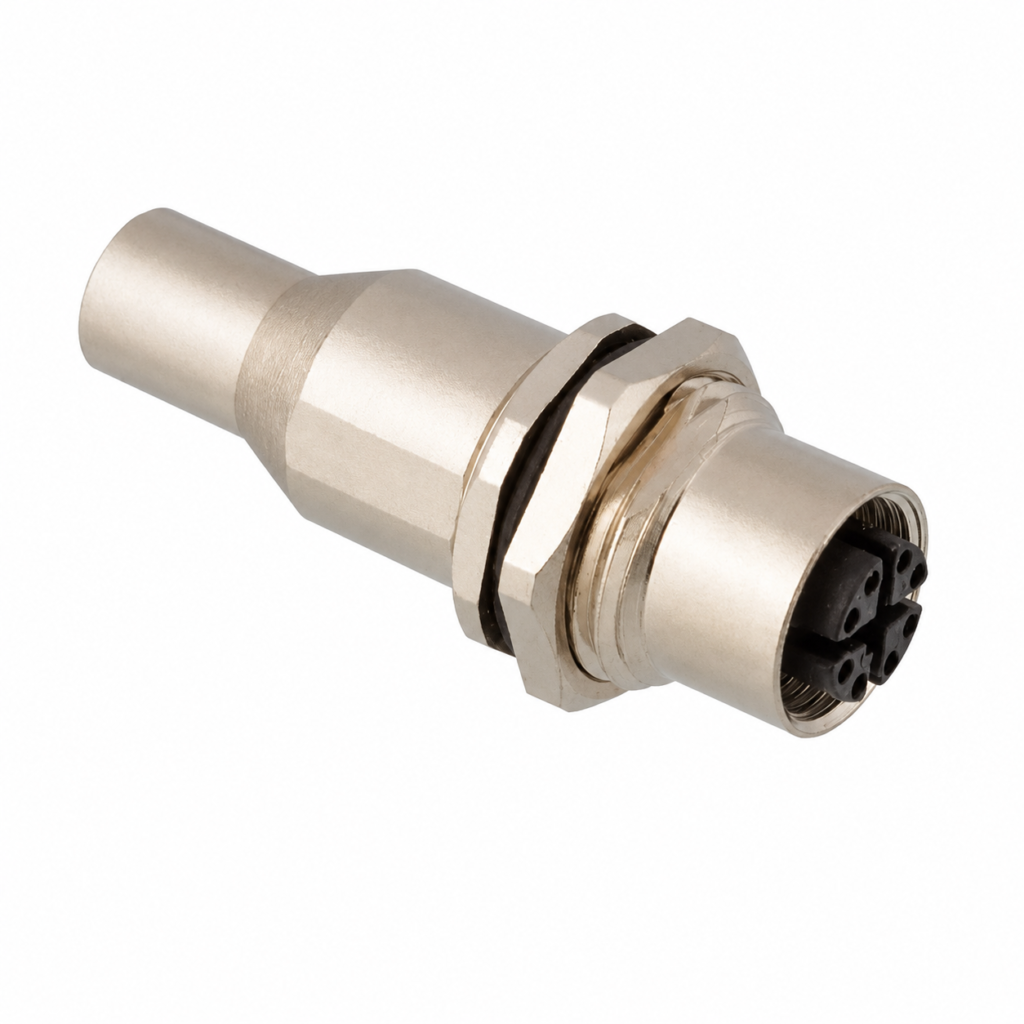

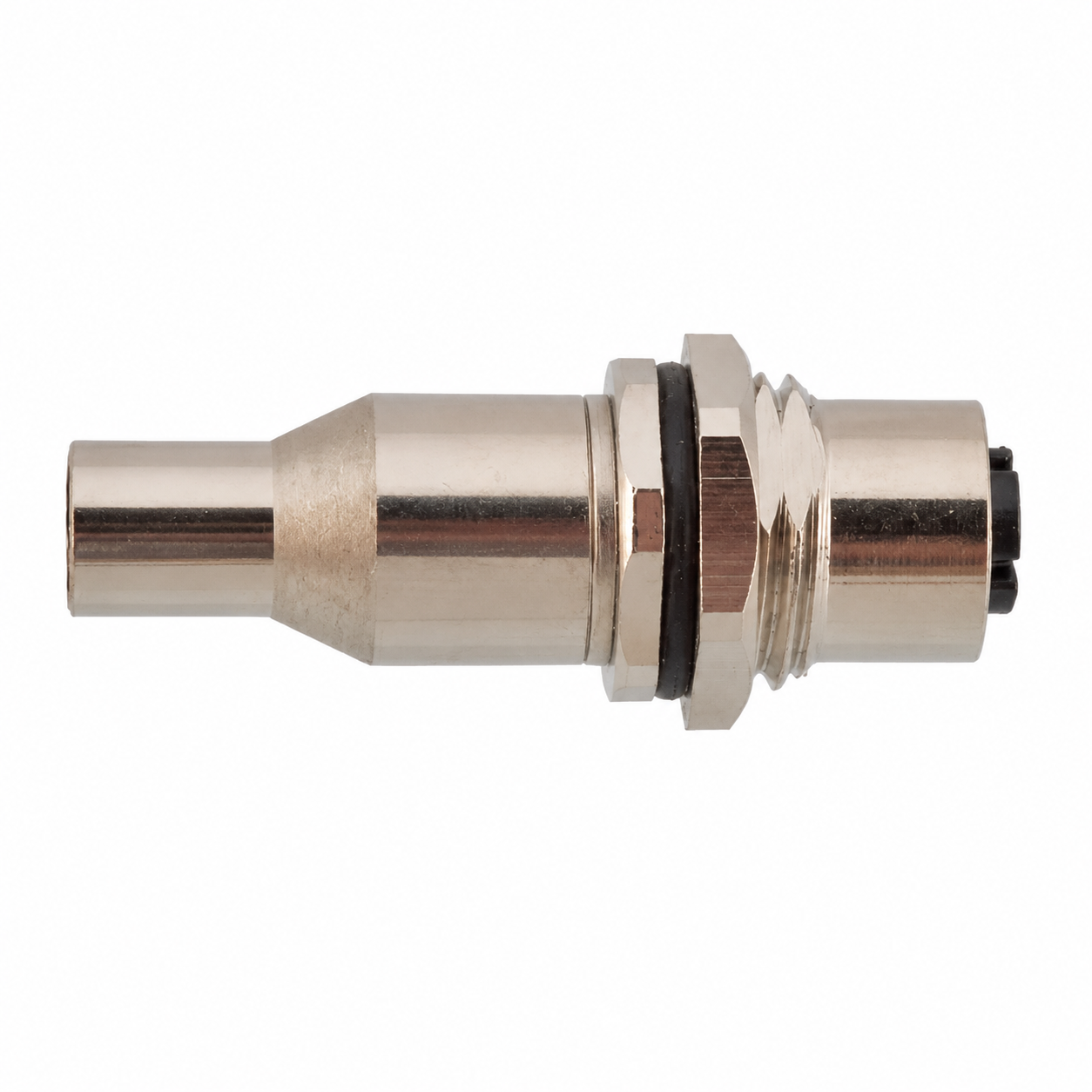

The M12 Data Type X-Coded Back Mount Female Metal Shielded Socket – Solder M16×1.5 is designed for reliable high-speed data transmission in industrial Ethernet and factory automation systems.
Its X-coded 8-pin interface separates the four data pairs through an internal cross-shaped contact structure, helping reduce interference between pairs and maintain stable signal transmission. The shielded metal housing provides effective electromagnetic protection for equipment operating in electrically noisy industrial environments.

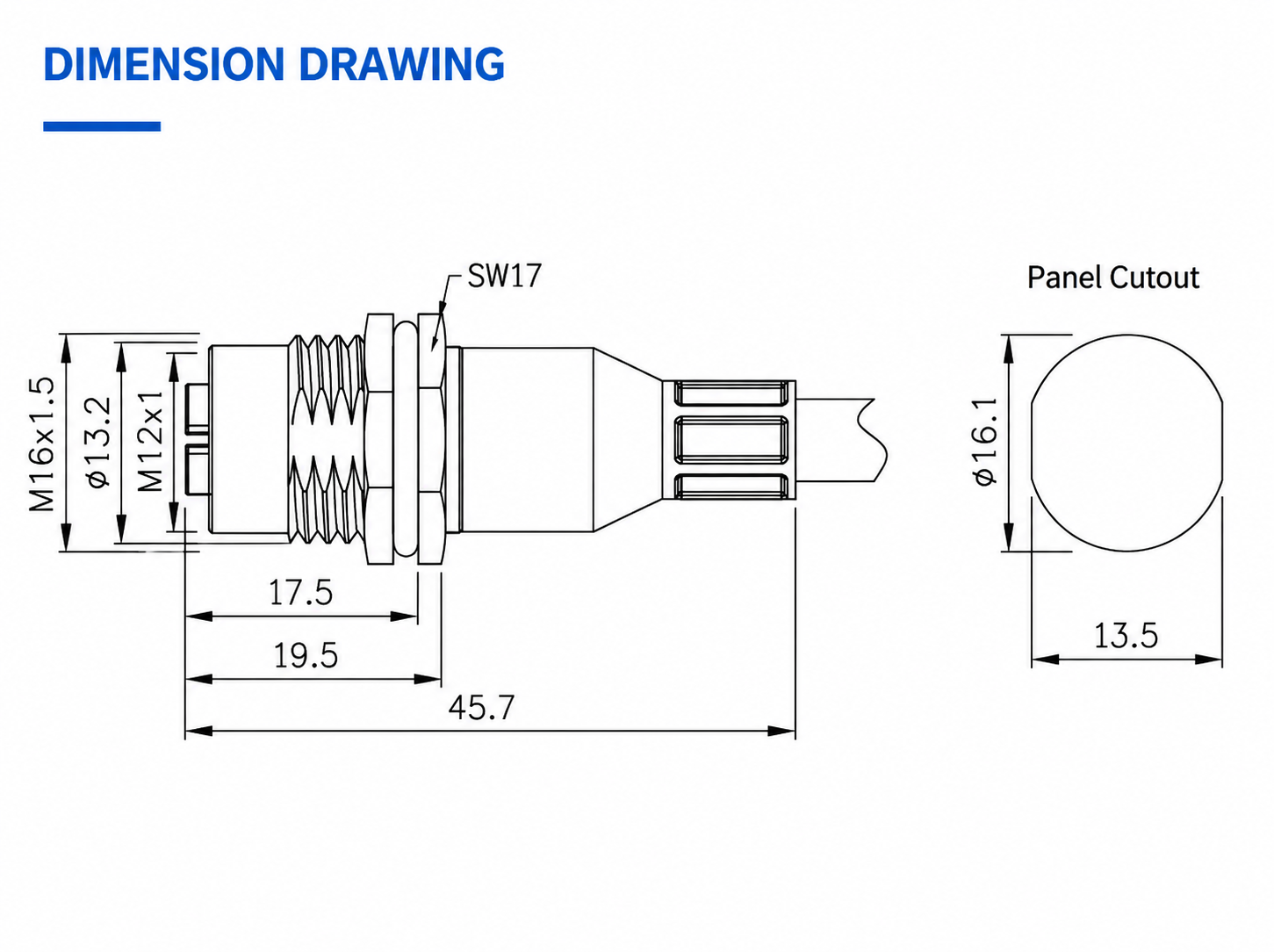

The back mount design allows the socket to be installed from the rear side of an equipment panel. Its solder-cup termination supports secure internal cable wiring, while the M16×1.5 mounting thread provides stable mechanical installation.
This connector is designed in accordance with IEC 61076-2-109, the M12 data connector specification covering transmission frequencies up to 500 MHz.
