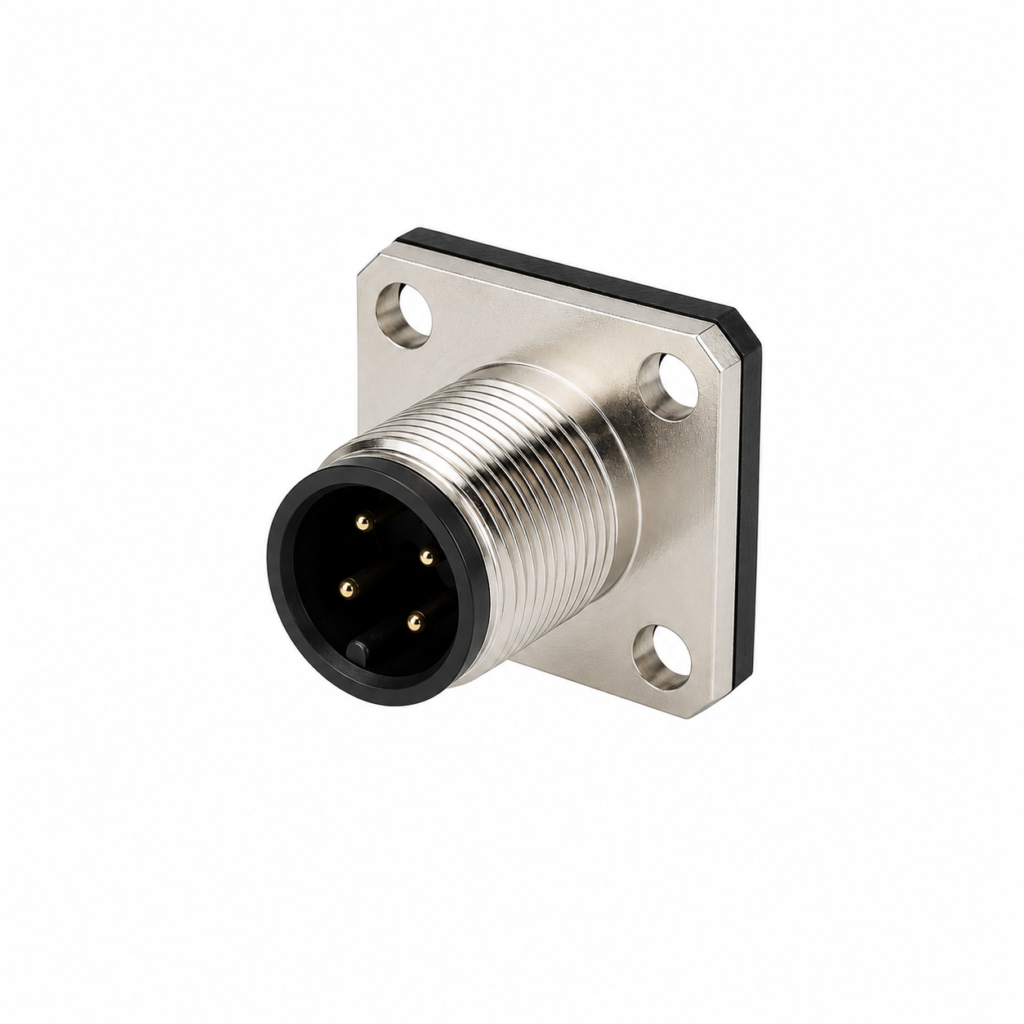

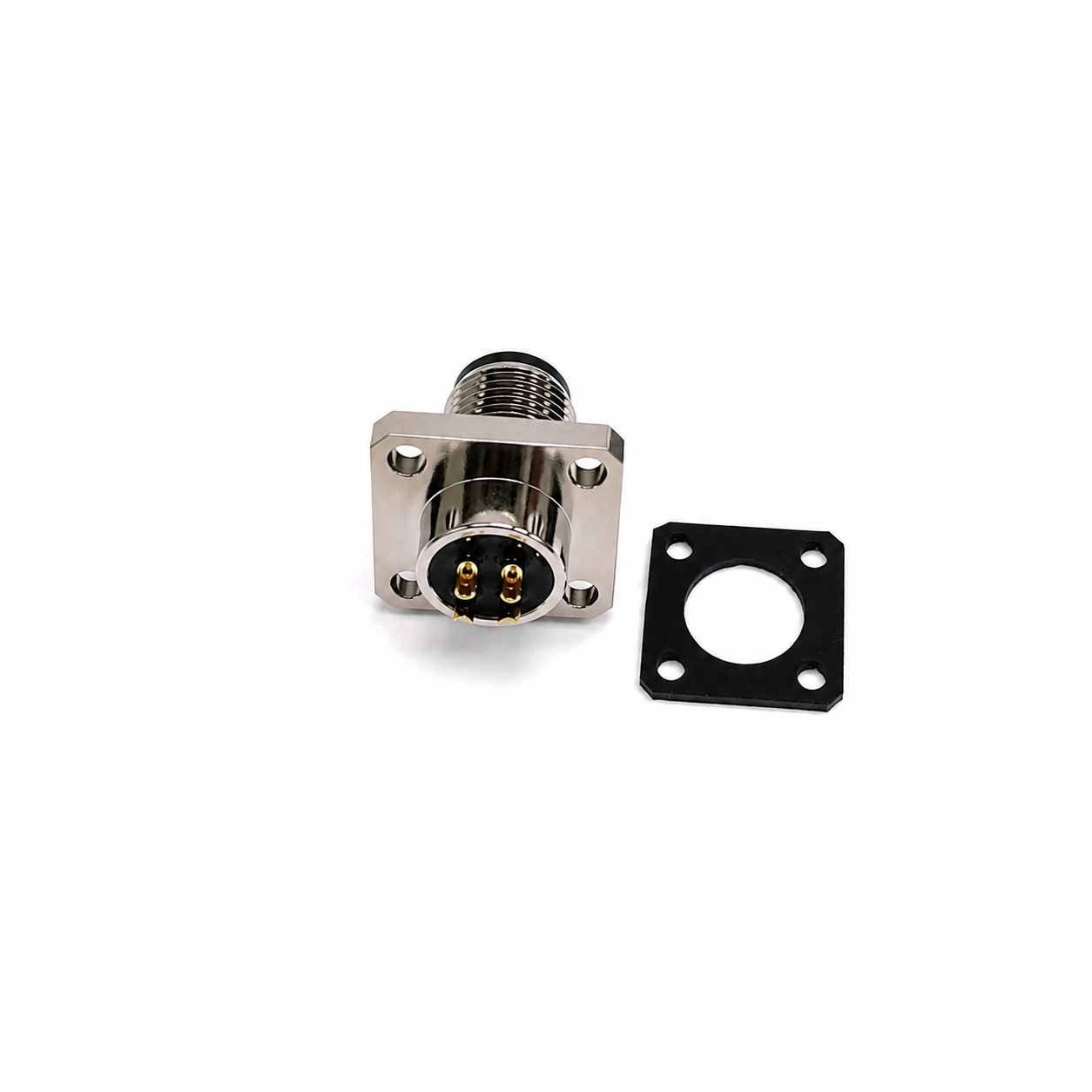

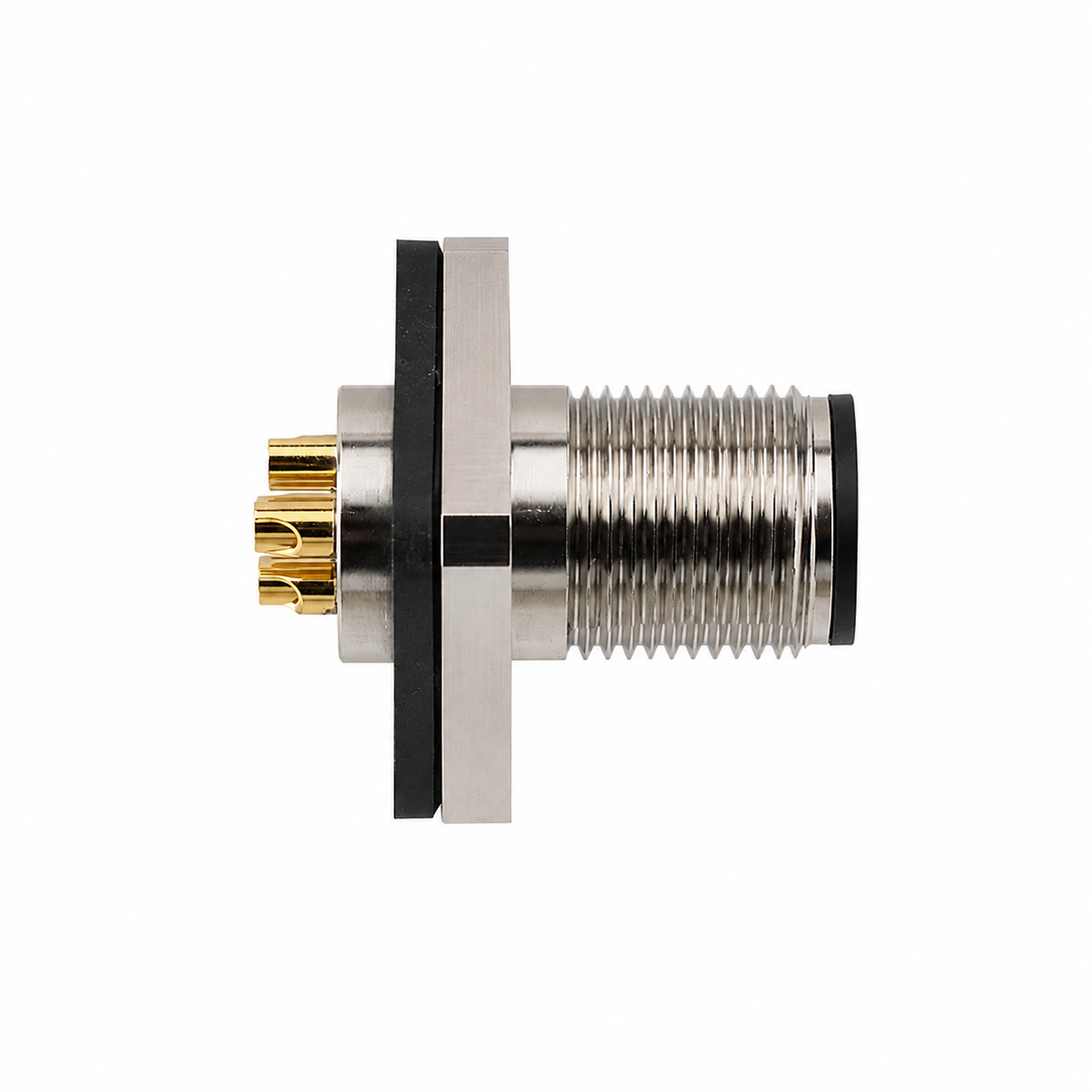

This M12 square flange male socket is a panel-mounted power connector designed for industrial wiring applications. The square flange structure allows stable front-panel installation, and the 14×14 mm cutout makes it suitable for compact control cabinets, machine panels, and electrical enclosures.
The connector is available in multiple pin configurations, including 2+PE, 3+PE, 3, 4, and 5 pin versions, with S, T, K, and L coding options. The solder termination structure provides a secure electrical connection for power interface applications.
Typical materials include nickel-plated brass or zinc alloy for the shell, PA or TPU for the insulator, and gold-plated brass or phosphor bronze for the contacts. The connector is designed for industrial environments and can meet IP65/IP67 protection requirements, with an operating temperature range from -25°C to +80°C.
This product is commonly used in control cabinets, industrial equipment, power interfaces, and machine-side panel wiring. For quotation, please provide pin count, coding, panel cutout, termination type, application, and quantity.
