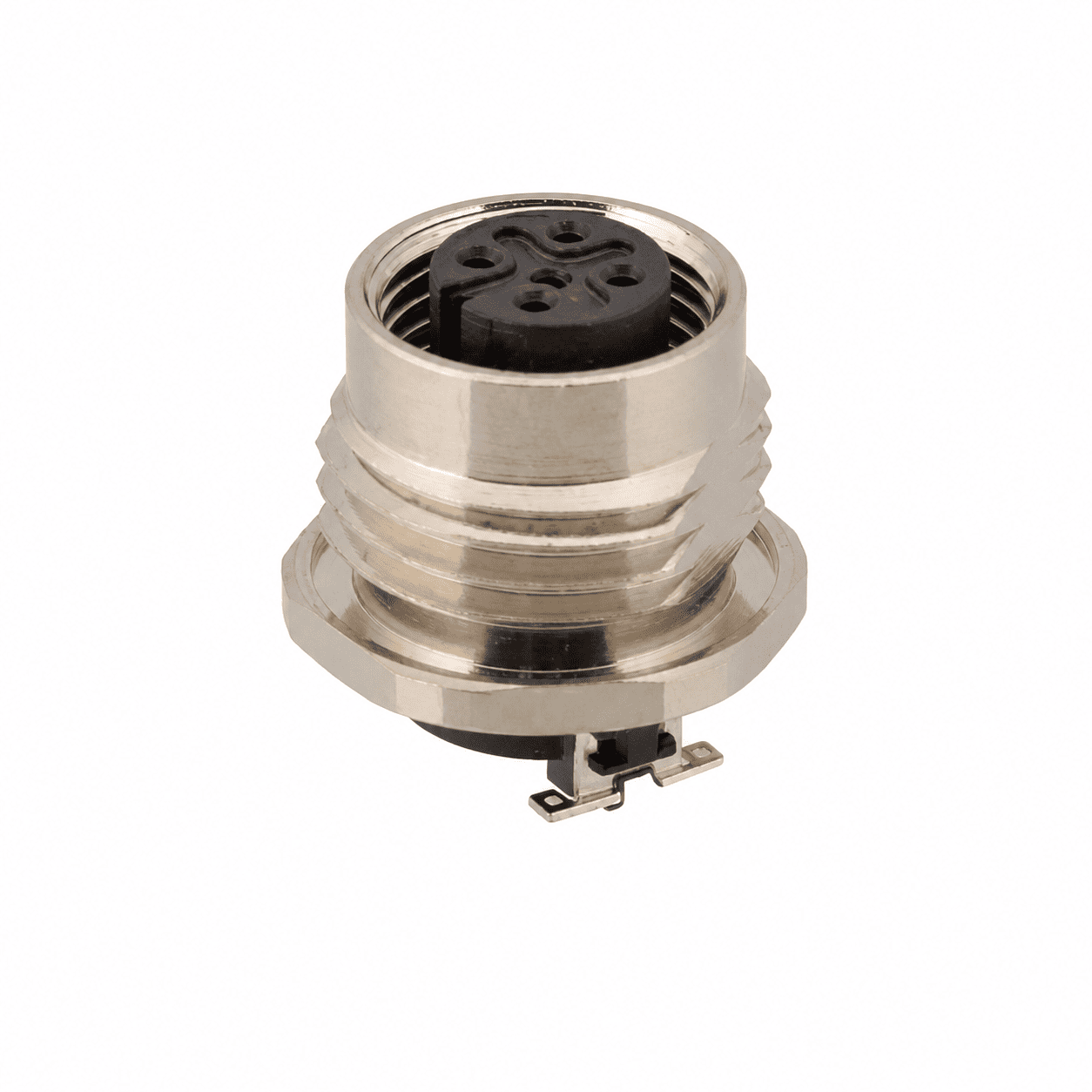

The M12 Signal Type Female SMD Socket is designed for direct surface-mount integration on printed circuit boards in industrial automation and electronic equipment.
Featuring an M12 female interface and SMD termination, the socket provides a compact board-level connection between external M12 connectors and internal PCB circuits without additional wire leads.
The surface-mount design is suitable for automated PCB assembly and space-limited electronic equipment. Multiple contact and coding configurations are available, including A-coded, B-coded, and D-coded versions, providing flexible solutions for industrial signal, sensor, actuator, and control applications.

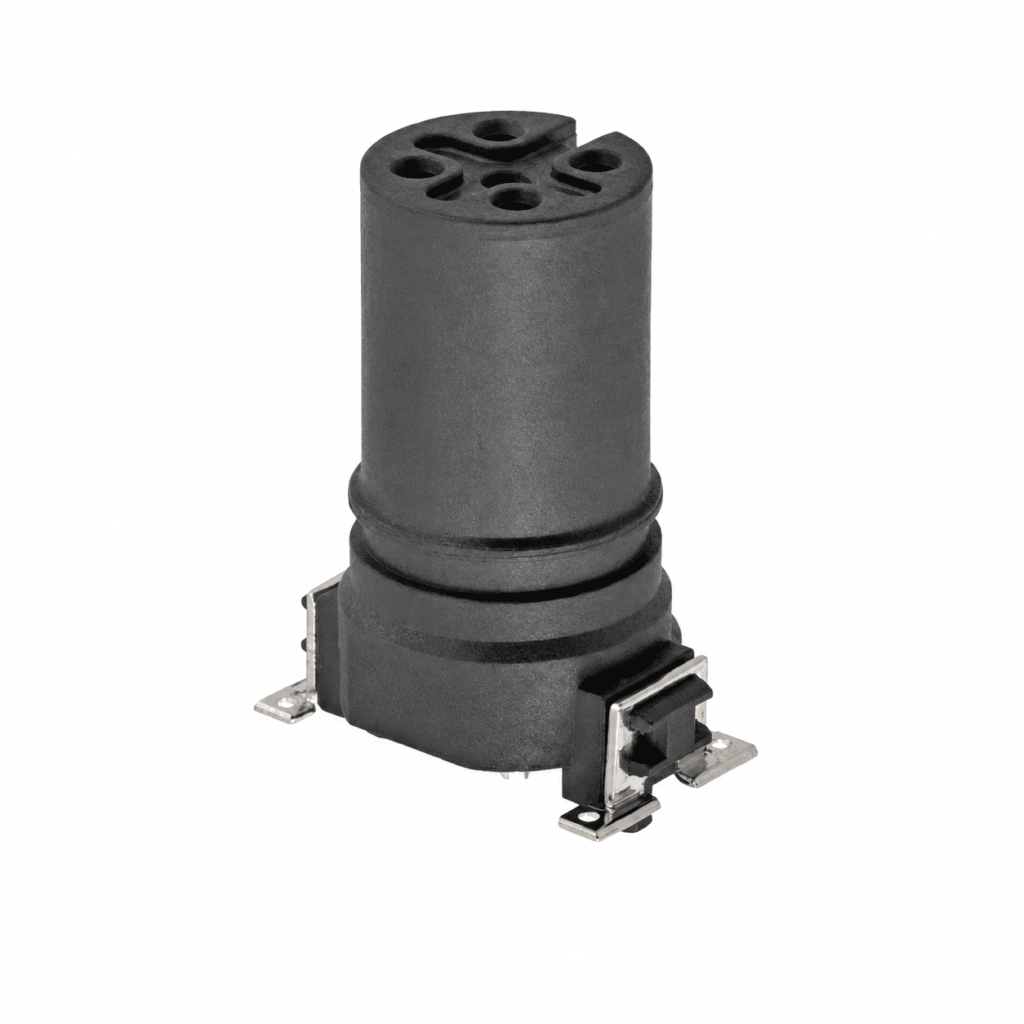

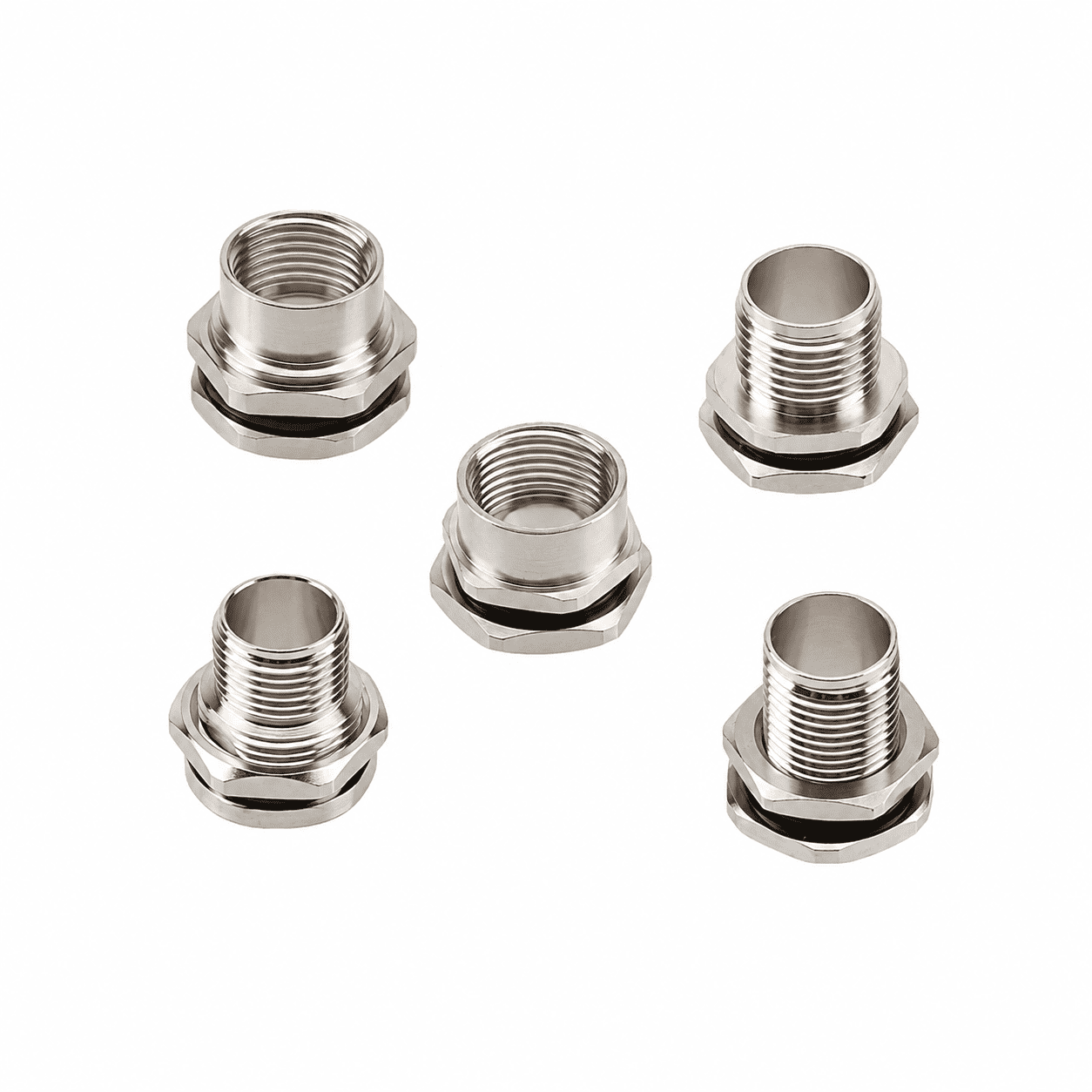

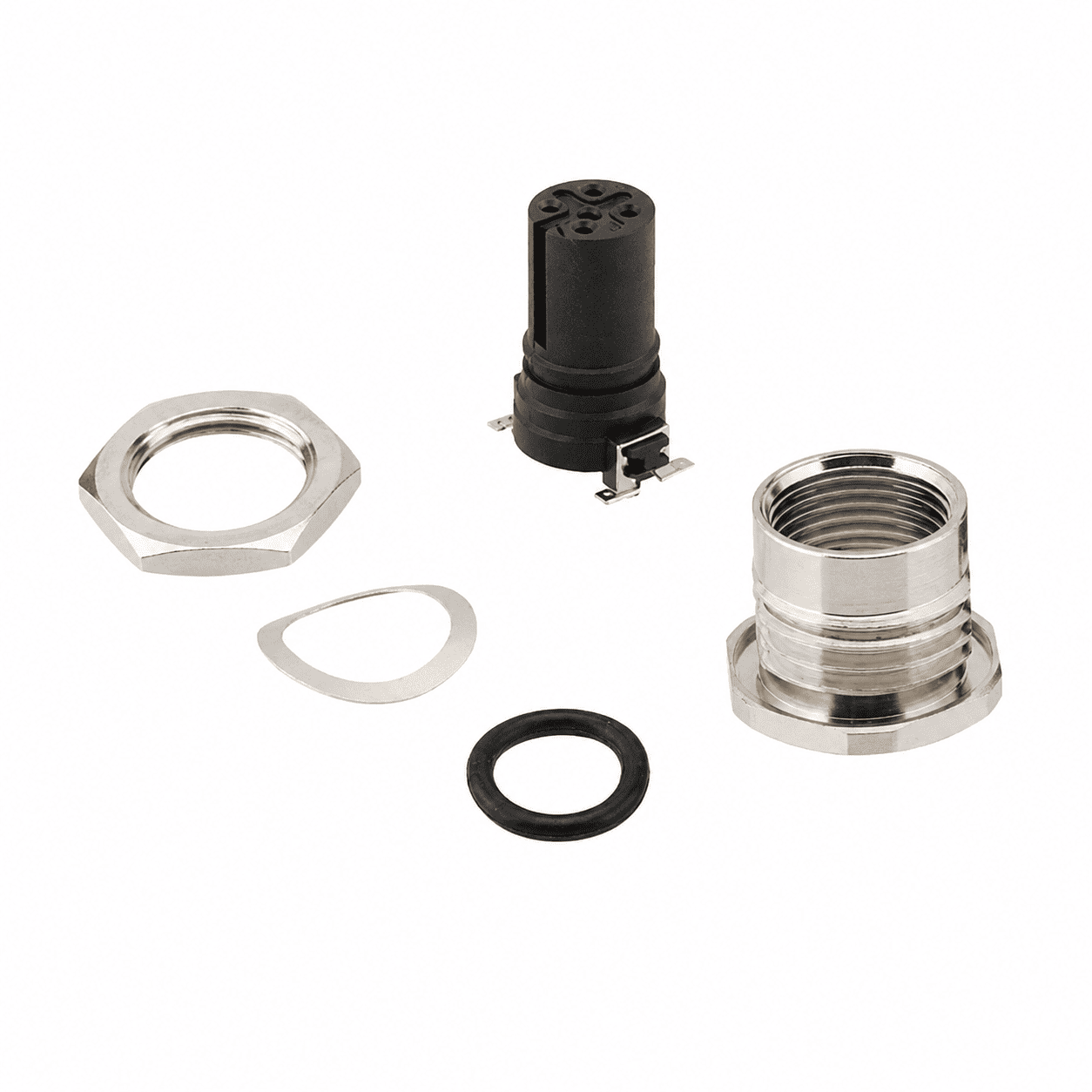

The SMD receptacle assembly can be combined with compatible front-mount or back-mount housings according to the required panel installation structure. CAZN’s current catalog also lists separate front- and back-mount shell options for this SMD receptacle family.
