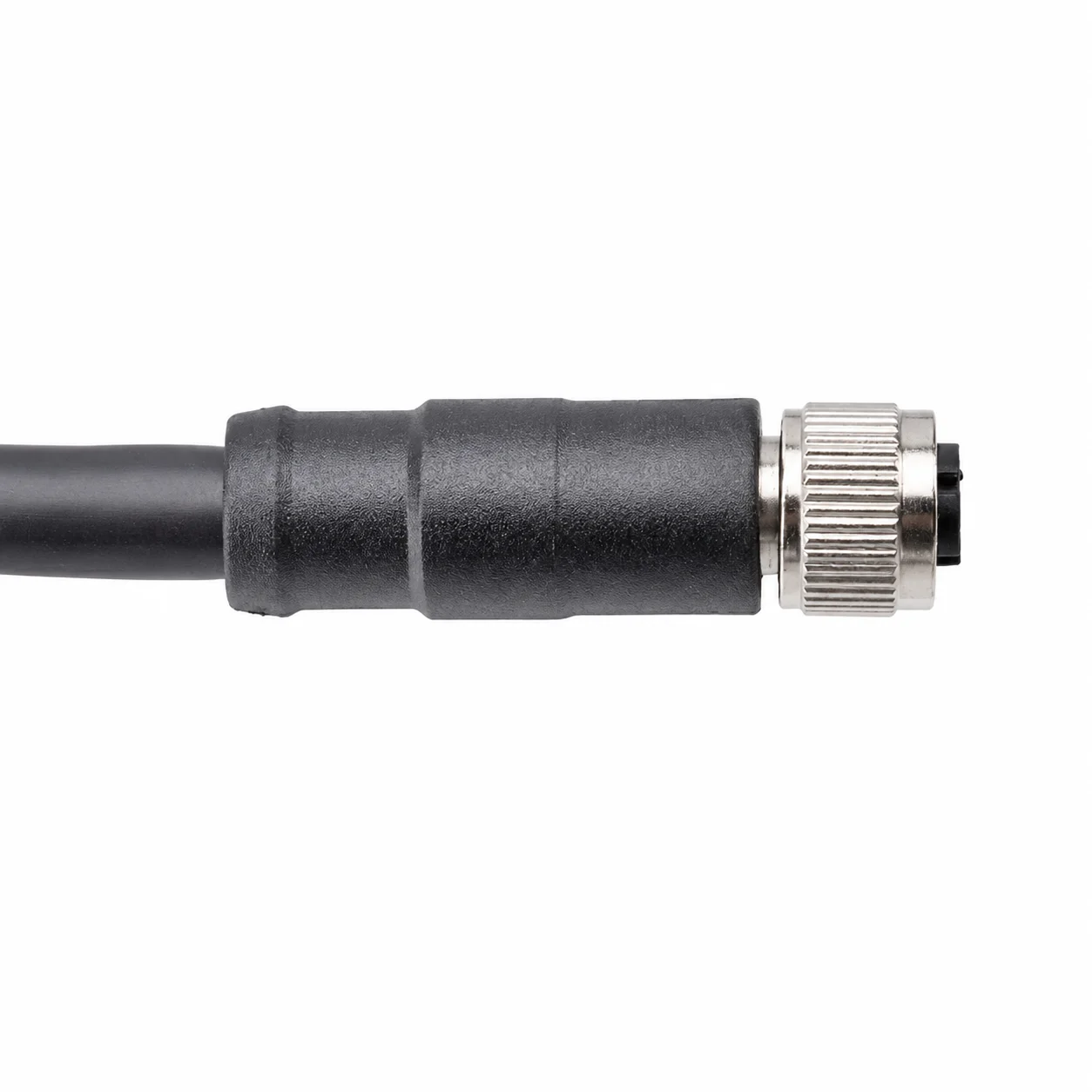

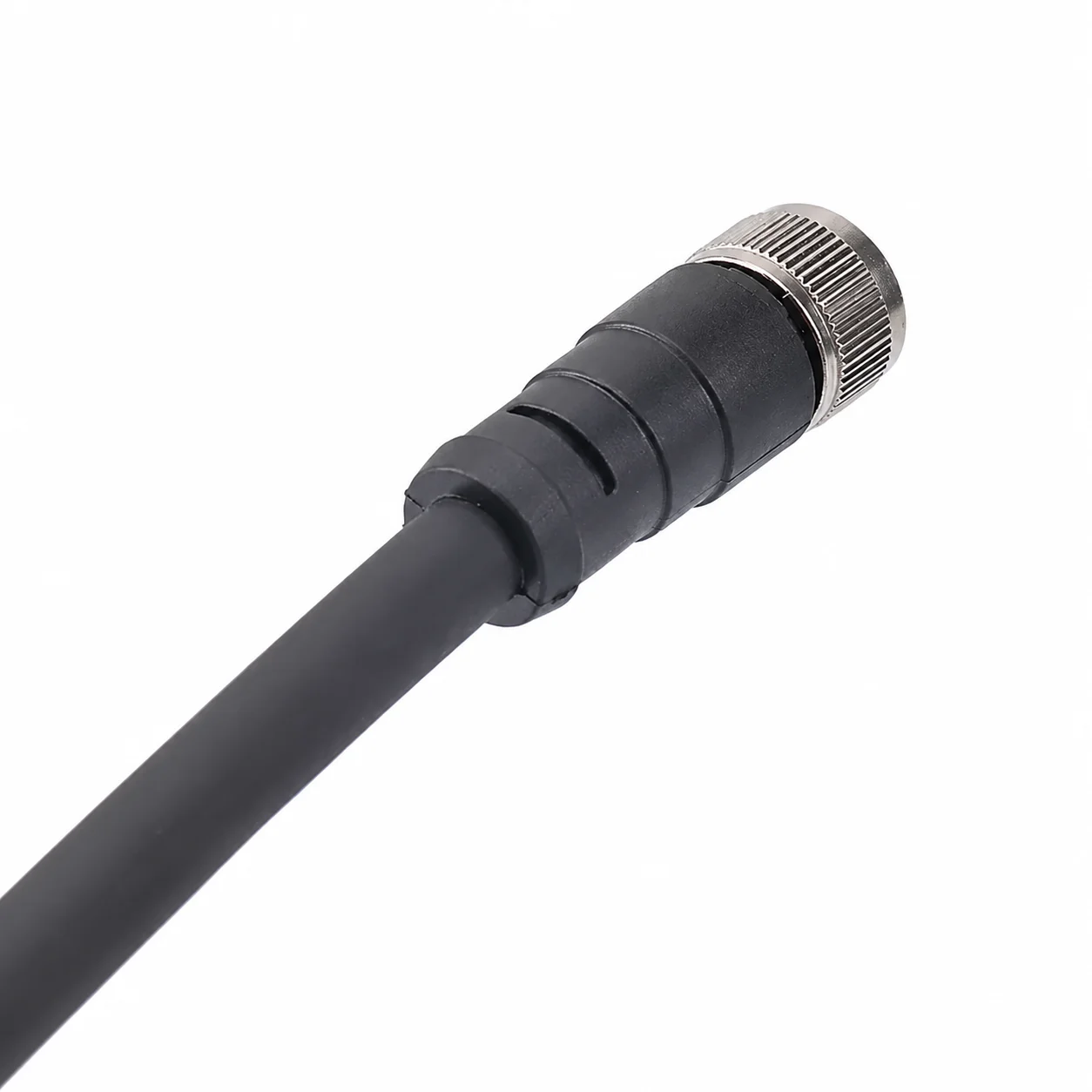

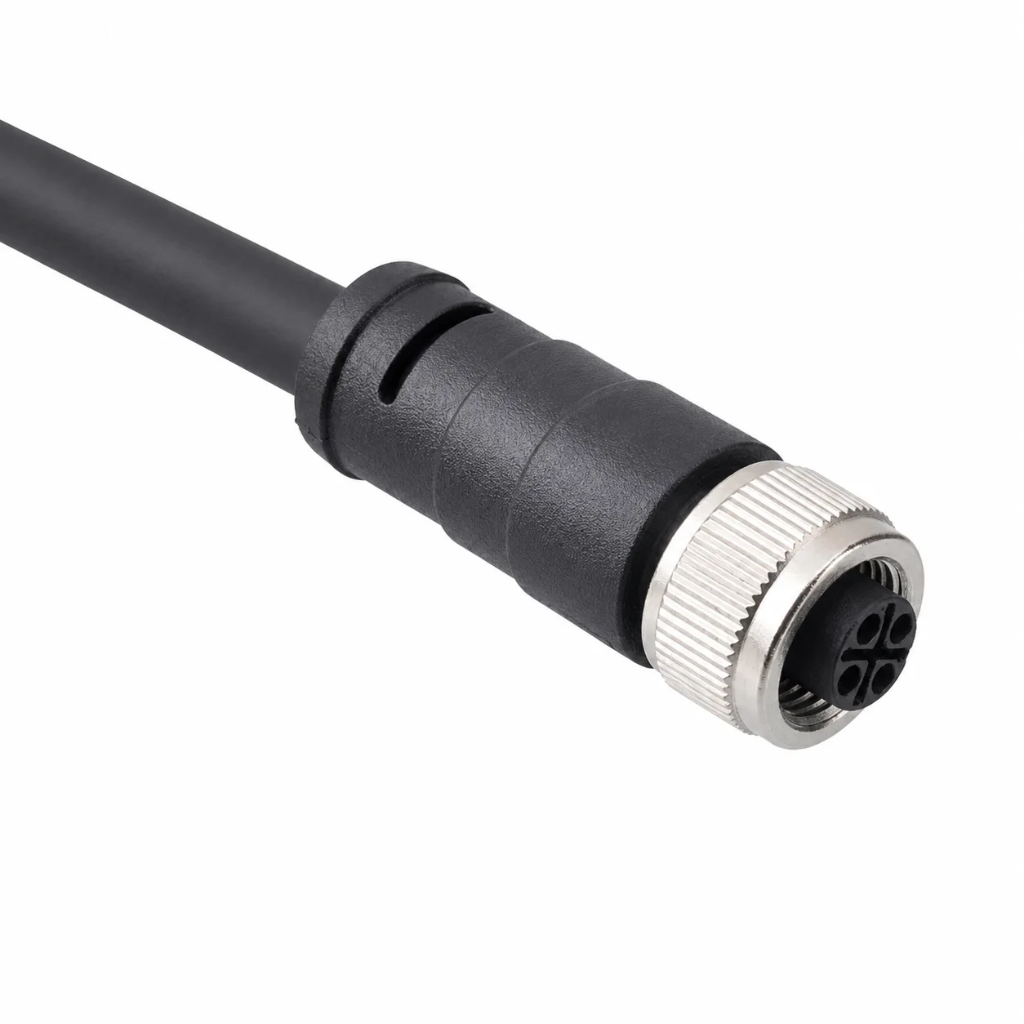

M12 Power Type Straight Female Overmolded Plug
M12 Power Type Straight Female Overmolded Plug
M12 Power Type Straight Female Overmolded Plug
M12 Power Type Straight Female Overmolded Plug thumbnail
M12 Power Type Straight Female Overmolded Plug thumbnail
M12 Power Type Straight Female Overmolded Plug thumbnail
M12 Series M12 Connectors Unshielded

M12 Power Type Straight Female Overmolded Plug

Pins
2, 3, 4, 5, 6, 2+PE, 3+PE, 4+PE
Coding
S-Coded, T-Coded, K-Coded, L-Coded
Gender
Female
Orientation
Straight
Wiring
Solder Type

Select Variant

Number of Pins

Coding

Product Overview

The M12 Power Type Straight Female Overmolded Plug is designed for reliable power transmission in industrial automation systems, providing a stable and durable connection for a wide range of machinery and control applications.

Its straight overmolded structure allows easy installation and secure cable connection, making it suitable for standard industrial wiring environments.

Manufactured in accordance with IEC 61076-2-101 standard, this connector ensures global compatibility, high reliability, and long service life in demanding industrial conditions.

Technical Specifications

Specifications for M12 Power Type Straight Female Overmolded Plug
Product Name M12 Power Type Straight Female Overmolded Plug
Series M12
Structure Type Straight Overmolded Plug
Gender Female
Number of Pins 2, 3, 4, 5, 6, 2+PE, 3+PE, 4+PE
Coding S-Coded, T-Coded, K-Coded, L-Coded
Orientation Straight
Wiring Method Solder Type
Cable Material PVC, PUR
Shielded Unshielded
Category M12 Connectors

Electrical & Mechanical Parameters

Shell Material Brass (Nickel-plated) / Zinc Alloy (Nickel-plated) / PA
Insulator Material PA / TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphorus Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥ 100 MΩ
Contact Resistance ≤ 5 mΩ
Insertion/Withdrawal Cycles ≥ 500 mating cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Power Type Straight Female Overmolded Plug Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine
