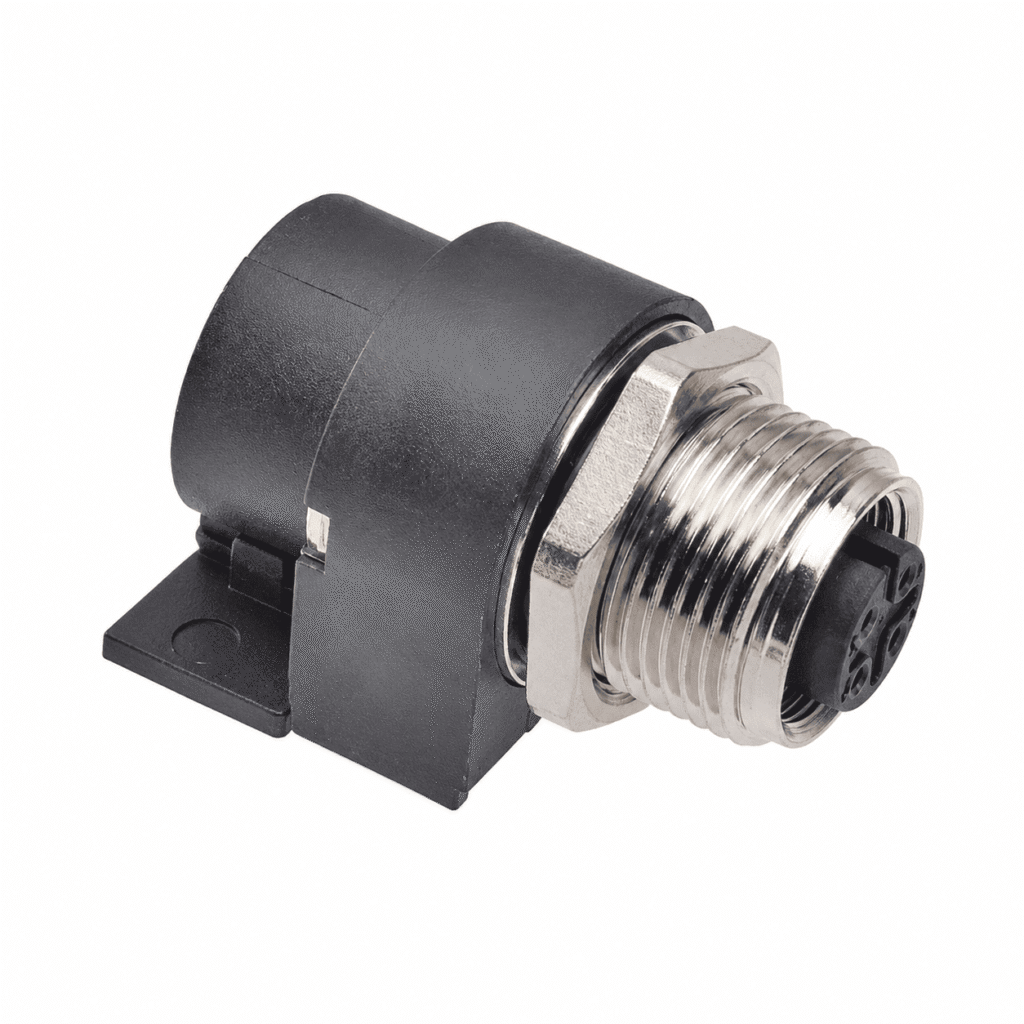

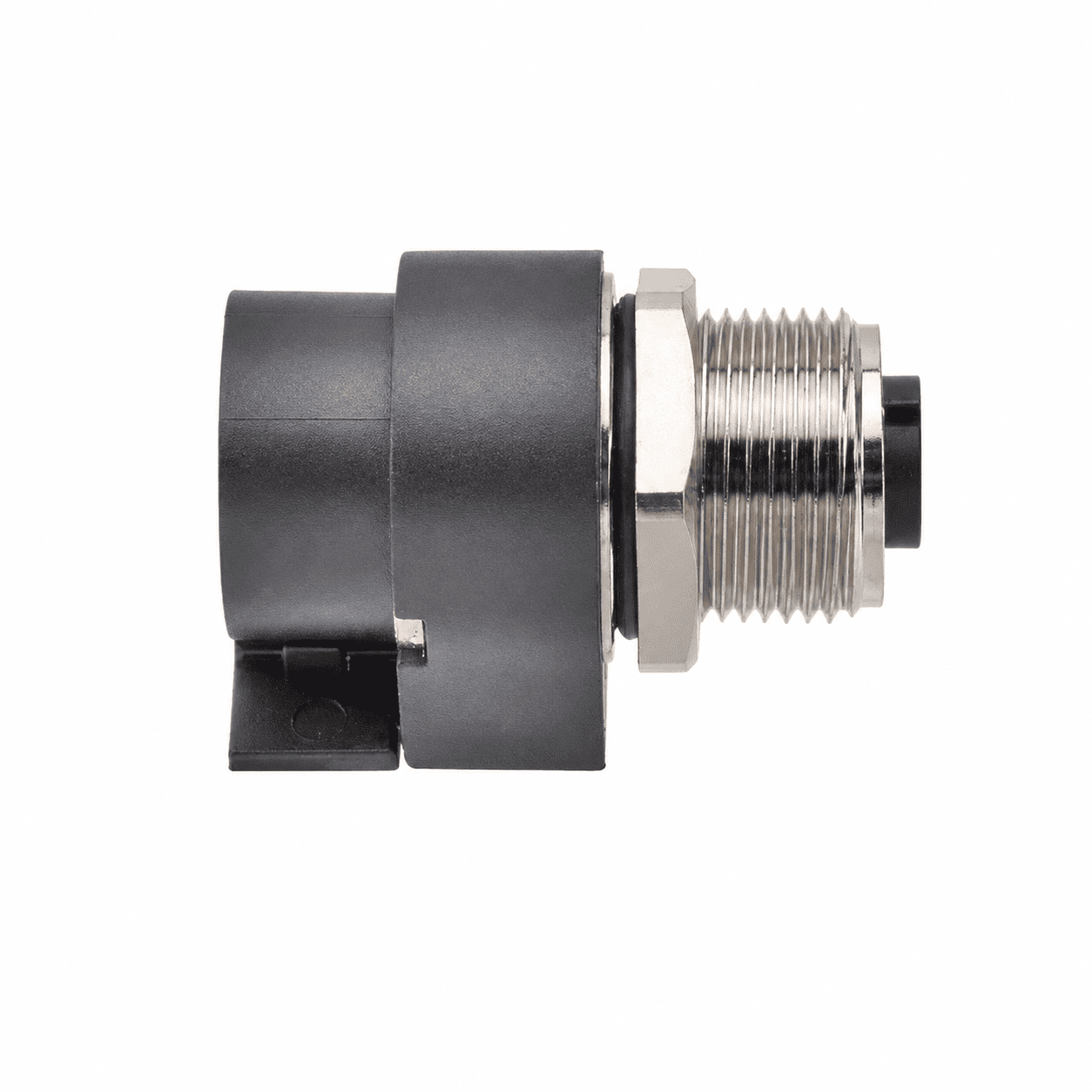

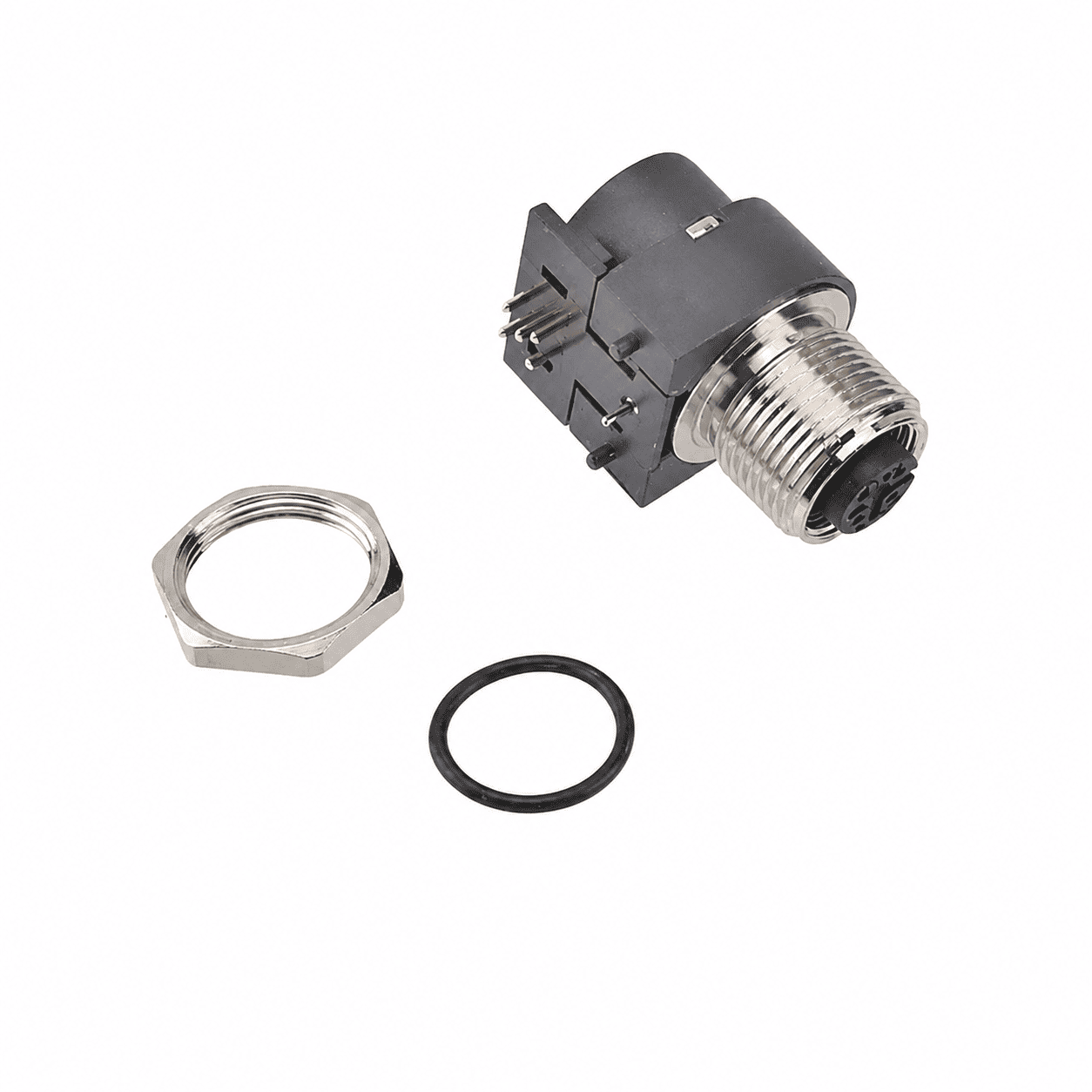

The M12 Signal Type Angled Female Back Mount Socket – PCB M15×1 Large Housing is designed for direct PCB integration in industrial automation, control, and signal connection equipment.
Featuring an M12 female interface, right-angle PCB contacts, back-mount panel structure, M15×1 mounting thread, and large housing design, the socket provides a reliable board-level connection for applications requiring additional internal space or higher contact counts.

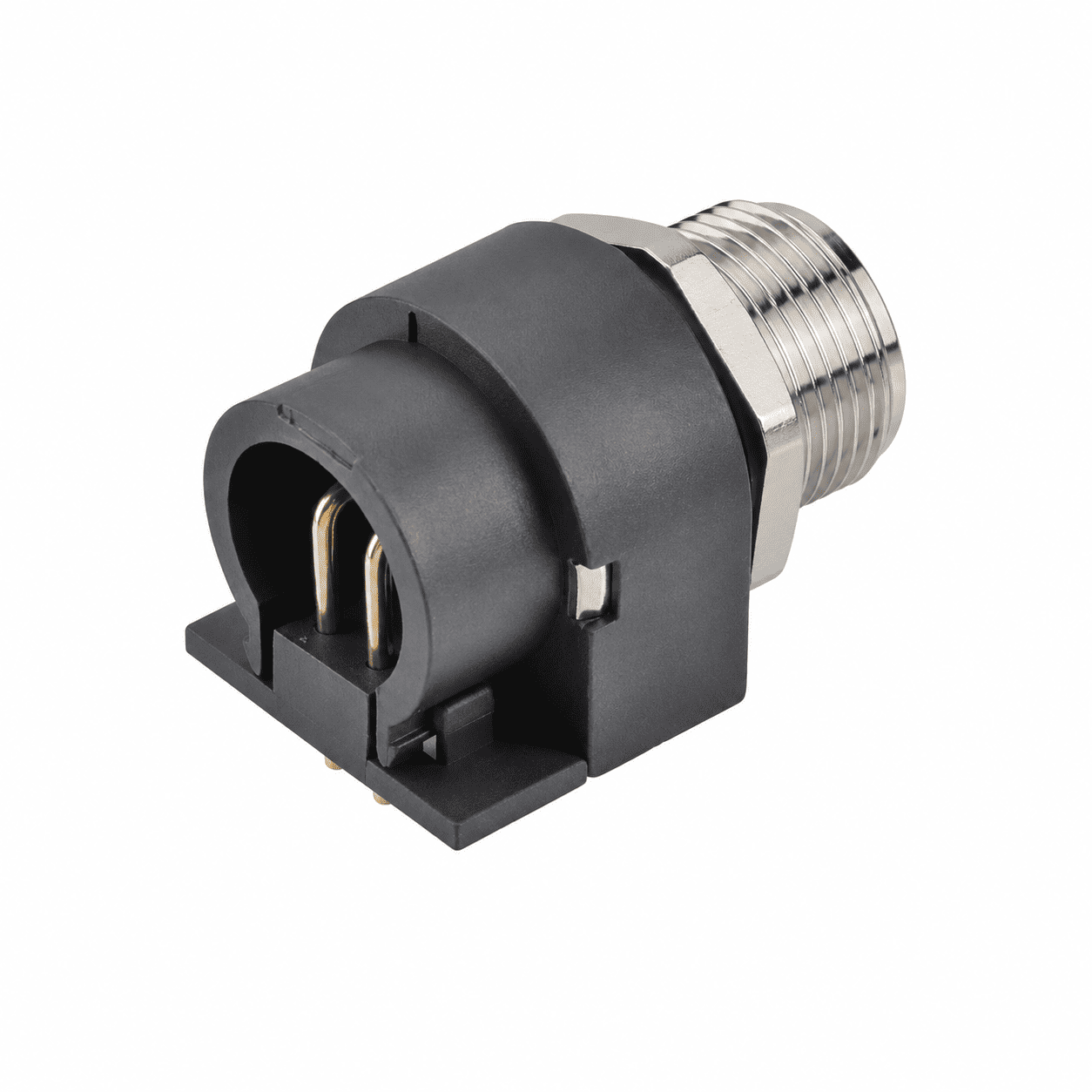

The back-mount structure allows the receptacle to be installed from the rear side of the equipment panel, while the 90° PCB contacts enable direct soldering to the printed circuit board without additional cable wiring.
The enlarged housing supports configurations up to 17 contacts, making this version suitable for high-density industrial signal and control applications.
