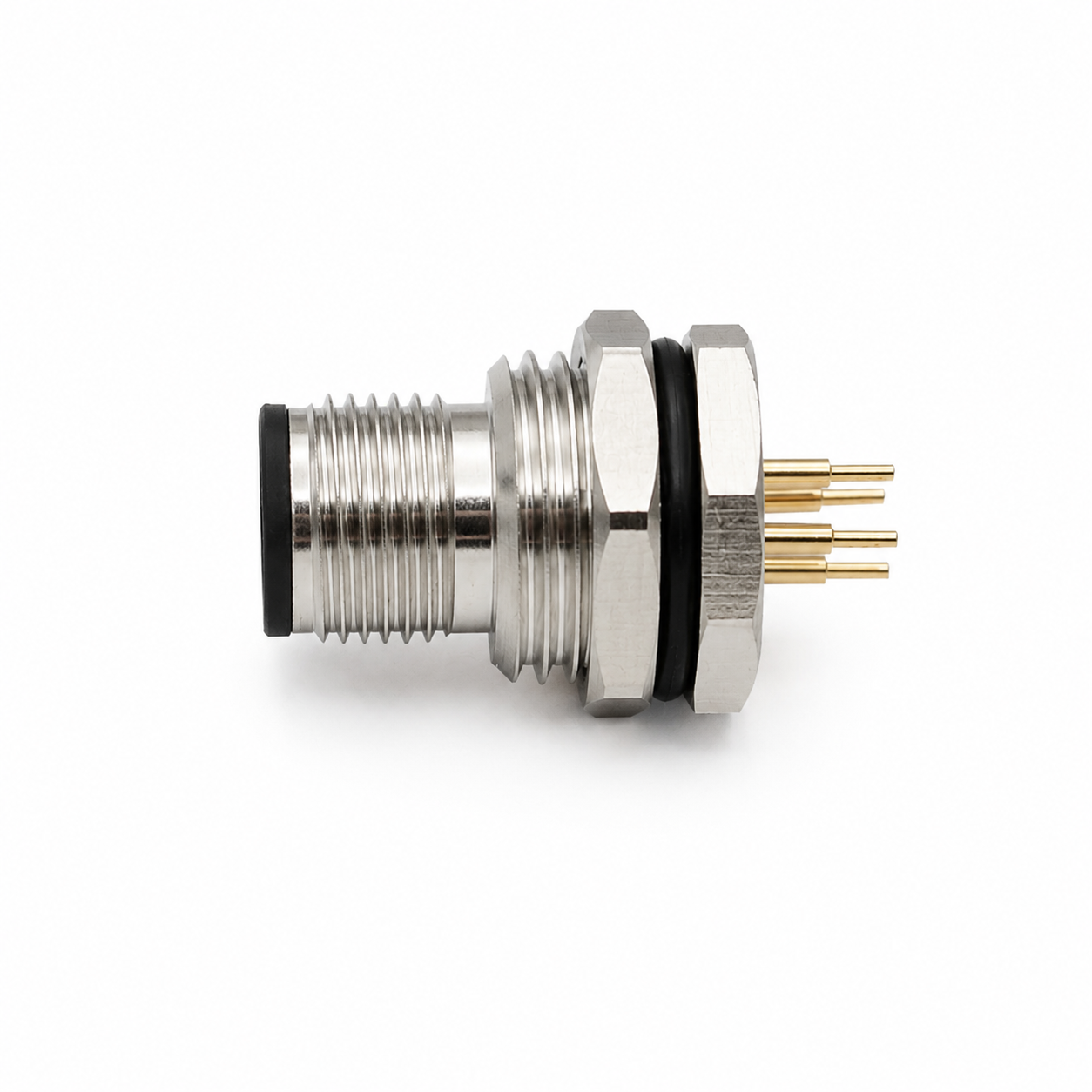

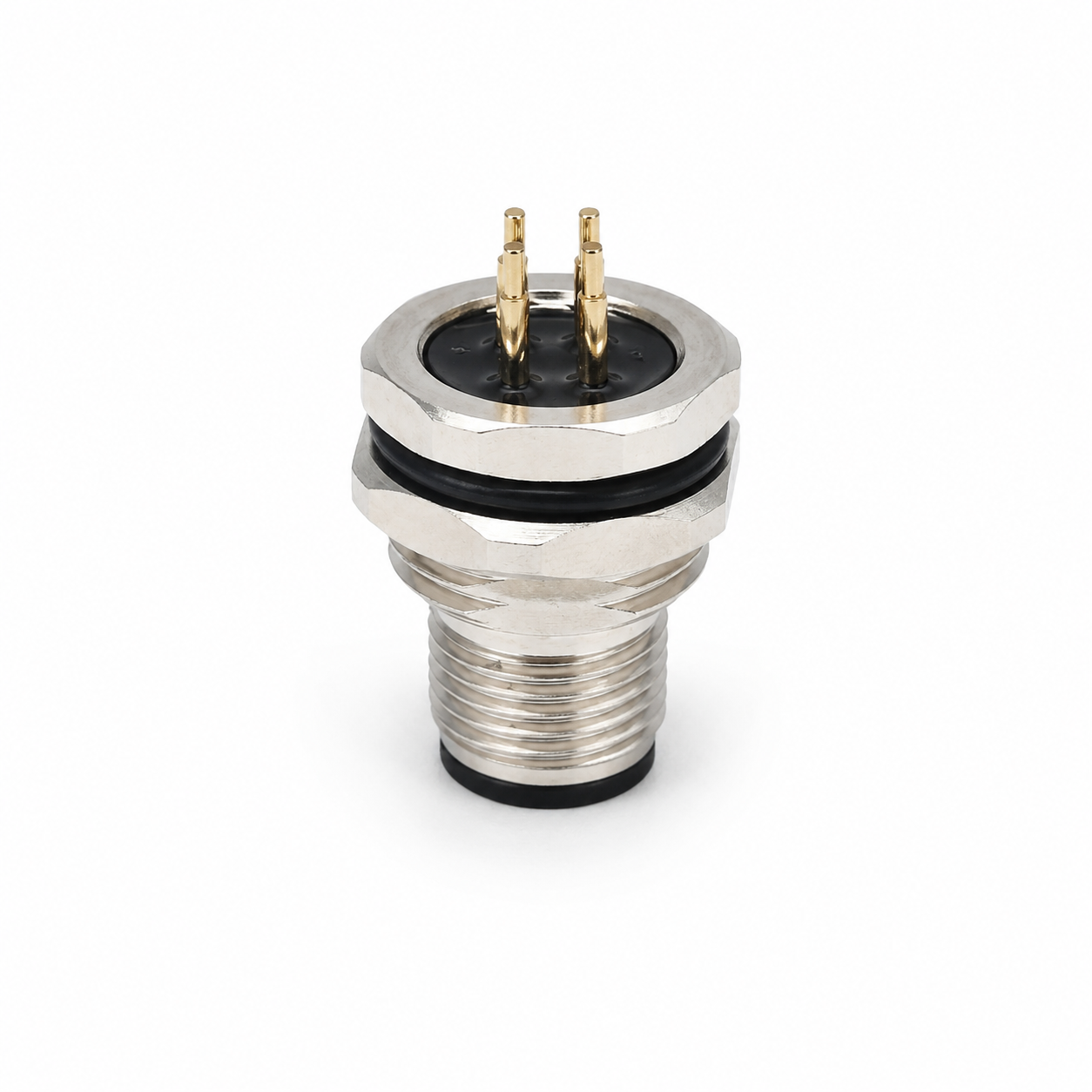

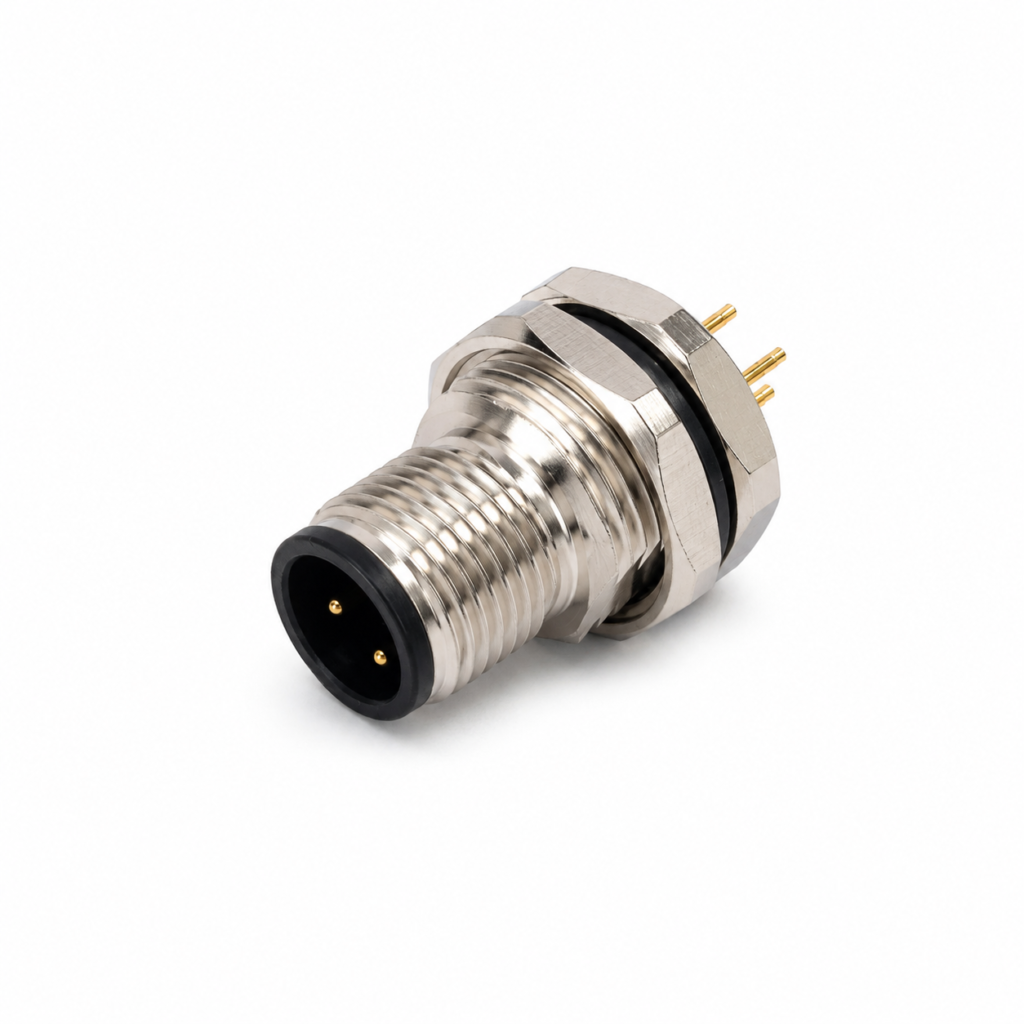

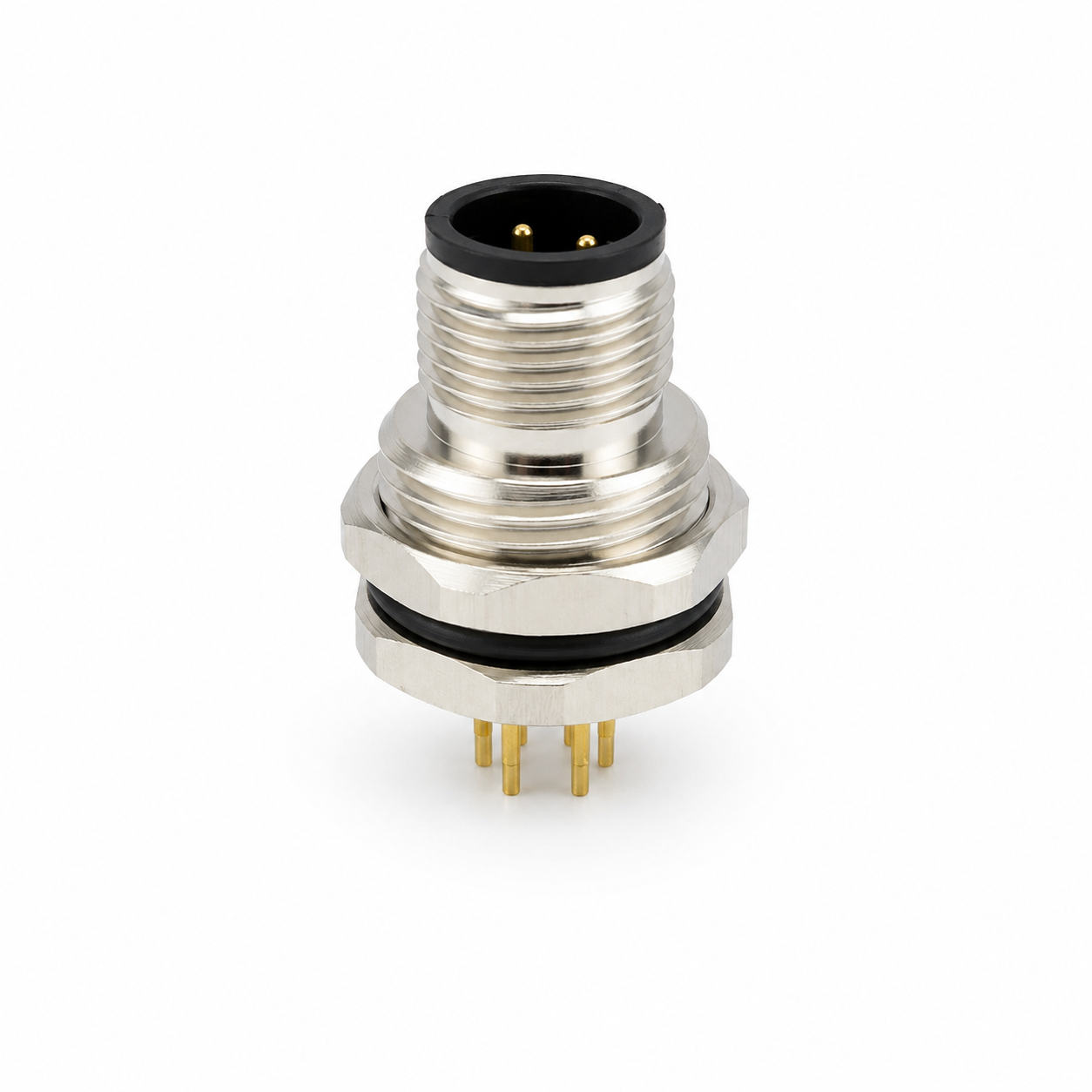

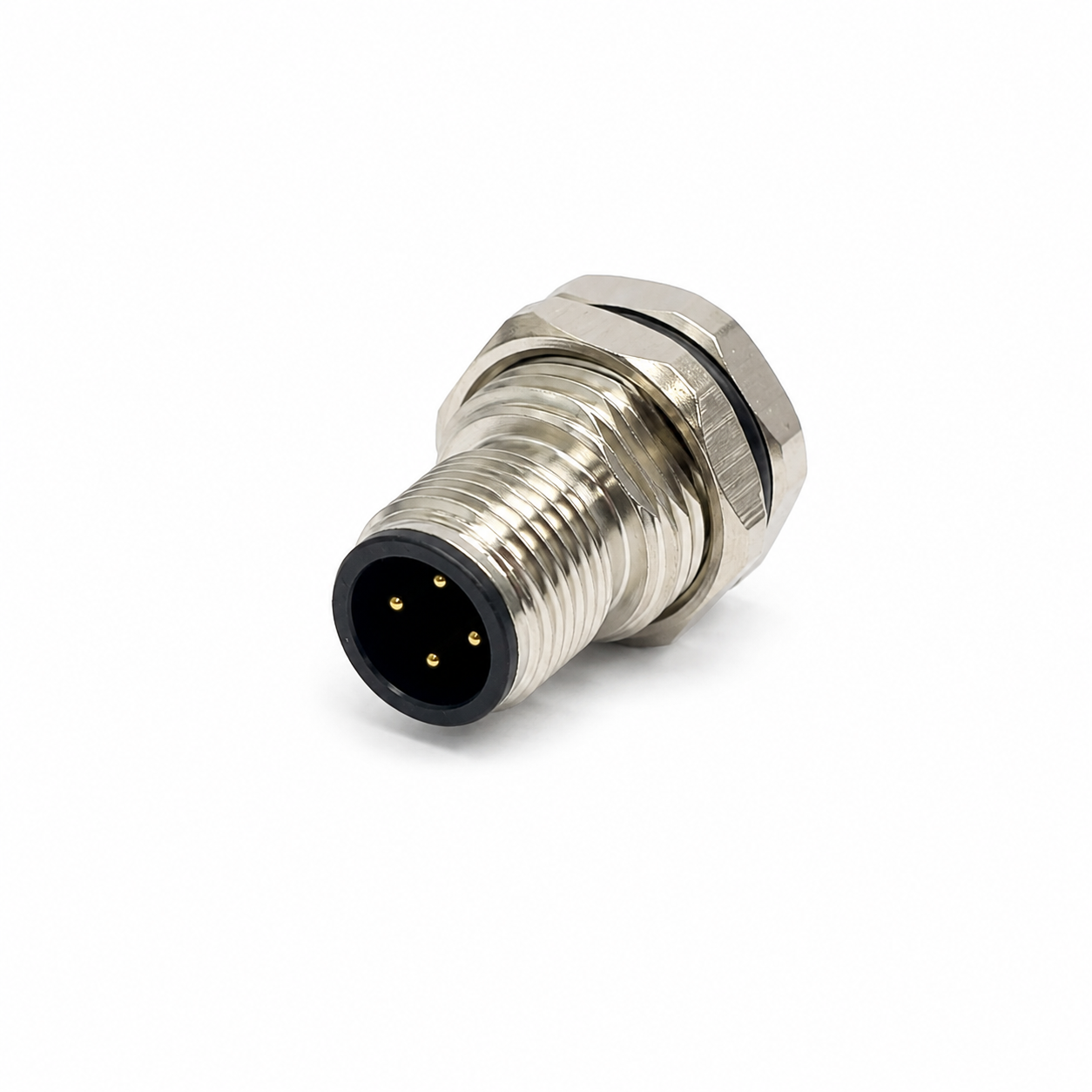

M12 公头背装式面板插座专为需要牢固面板安装和 PCB 端接的工业电源连接应用而设计。该连接器从面板背面安装，并使用 M16×1.5 或 PG9 螺纹紧固。
该连接器提供多种引脚配置和编码选项，适用于工业自动化设备、配电系统、控制柜和机器侧接口。
PCB端接设计允许与电路板直接集成，同时保持紧凑可靠的连接结构。
| Product Name | M12 Power Connector Male Rear Mount Receptacle, PCB Type, M16×1.5 / PG9 |
| Series | M12 |
| Structure Type | Male Back Mount Socket |
| Gender | Male |
| Number of Pins | 2, 3, 4, 2+PE, 3+PE, 4+PE |
| Coding | S-Coded, T-Coded, K-Coded, L-Coded |
| Wiring Method | PCB Solder Type |
| Thread Specification | Array |
| PG7/PG9 | PG9 |
| Shielded | Unshielded |
| Category | M12 Connectors |
| Shell Material | Nickel-Plated Brass / Nickel-Plated Zinc Alloy / PA |
| Insulator Material | PA / TPU |
| Sealing Material | Rubber / Epoxy Resin |
| Contact Material | Gold-Plated Brass / Phosphor Bronze |
| Degree of Protection | IP65 / IP67 |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Insertion/Withdrawal Cycles | ≥500 Mating Cycles |
| Operating Temperature | -25°C to +80°C |
