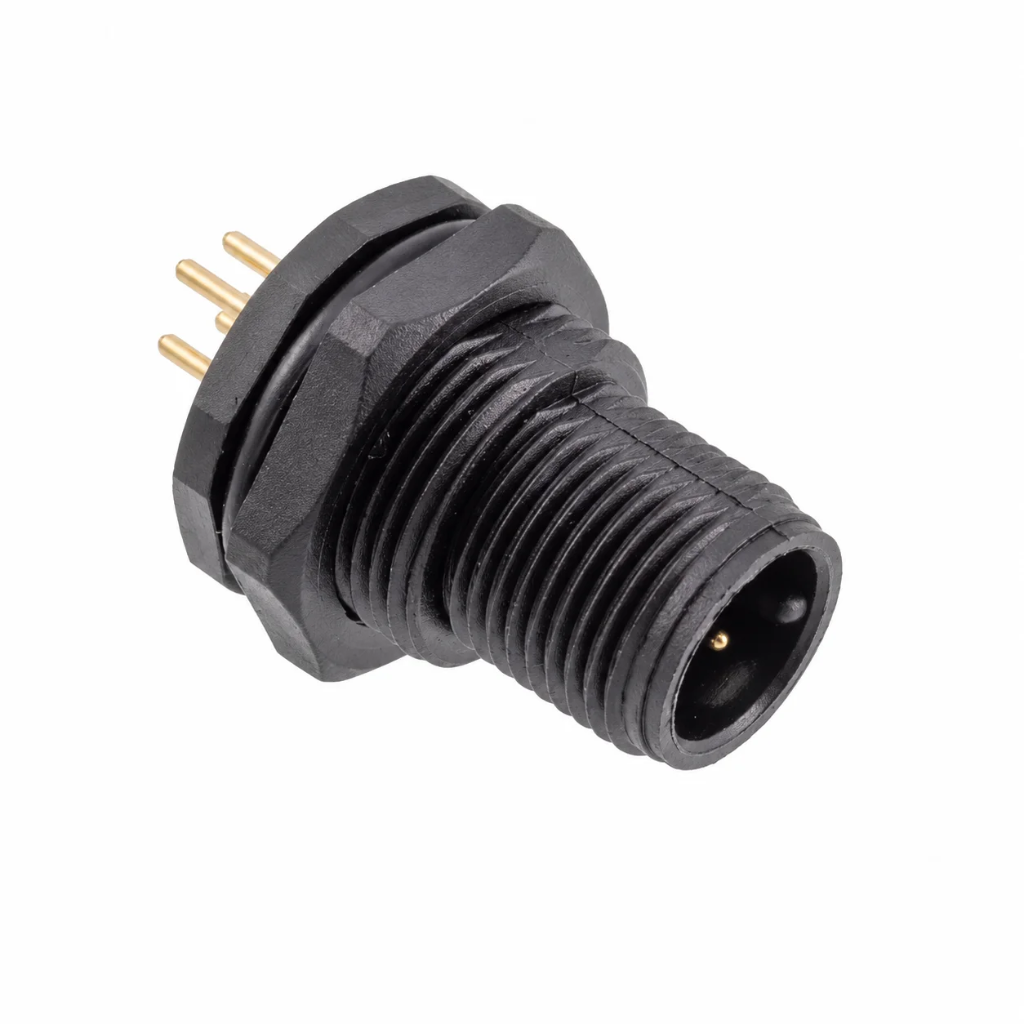

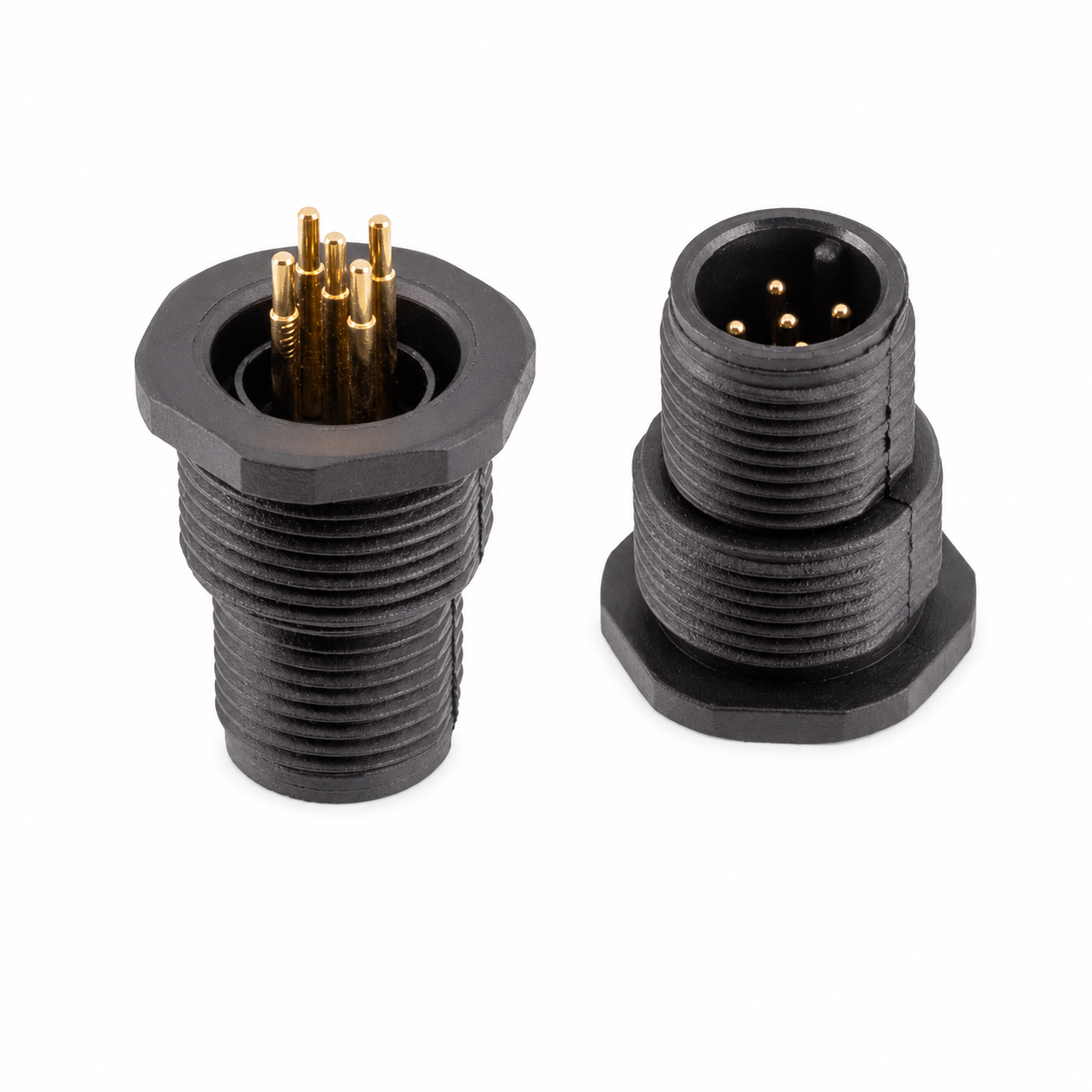

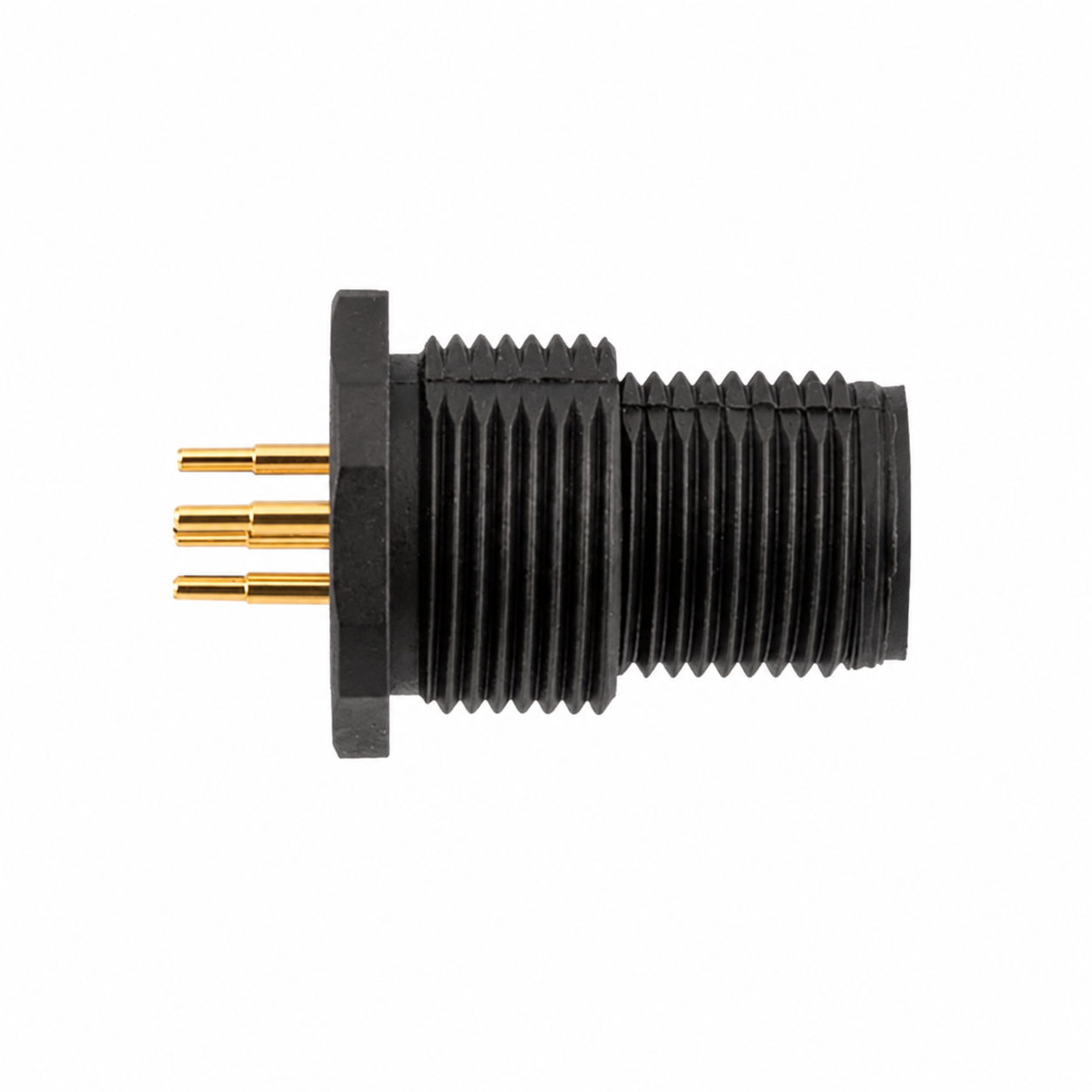

M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1
M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1
M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1
M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1 thumbnail
M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1 thumbnail
M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1 thumbnail
M12 Series M12 Connectors Unshielded

M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1

Pins
2, 3, 4, 5, 6, 8, 12, 17
Coding
A-Coded, B-Coded, D-Coded
Gender
Male
Thread
Array
Wiring
PCB Solder Type

Select Variant

Number of Pins

Coding

Request a Quote

Product Overview

The M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1 is designed for reliable signal transmission in industrial automation systems, providing a secure panel-mounted connection for sensors, controllers, and industrial equipment.

Its back mount design combined with PCB termination enables direct installation onto printed circuit boards while maintaining a compact panel layout. The M15×1 mounting thread provides a secure mechanical connection for equipment requiring this panel mounting specification.

Manufactured in accordance with IEC 61076-2-101, this connector offers excellent compatibility with standard M12 signal interfaces and ensures stable electrical performance in demanding industrial environments.

Technical Specifications

Specifications for M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1
Product Name M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1
Series M12
Structure Type Back Mount Socket
Gender Male
Number of Pins 2, 3, 4, 5, 6, 8, 12, 17
Coding A-Coded, B-Coded, D-Coded
Wiring Method PCB Solder Type
Cable Material PVC, PUR
Thread Specification Array
Shielded Unshielded
Category M12 Connectors

Electrical & Mechanical Parameters

Shell Material Brass (Nickel-plated) / Zinc Alloy (Nickel-plated) / PA
Insulator Material PA / TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphor Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Signal Type Back Mount Male Plastic Socket – PCB M15×1 Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine
