Interface Module D-SUB Interface Module

DIN Rail DB37 Female D-SUB to Spring Terminal Block Interface Module

Model: NTDS37F-SP

Interface

DB37

Signal Points / Pins

Connection

Spring Clamp

Rated Voltage

24 VDC

Rated Current

1 A

Mounting

DIN Rail Mount

Select Product Variant

Model

NTDS37F-SP

Module Type

D-SUB Interface Module

Pins

Request a Quote — NTDS37F-SP

Overview

Product Description

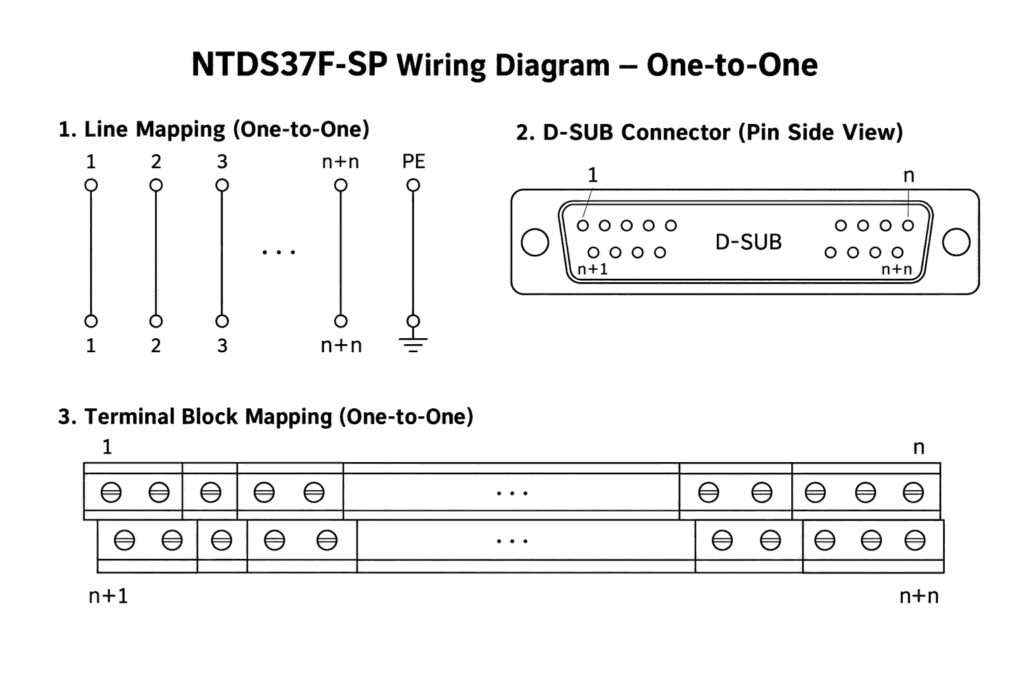

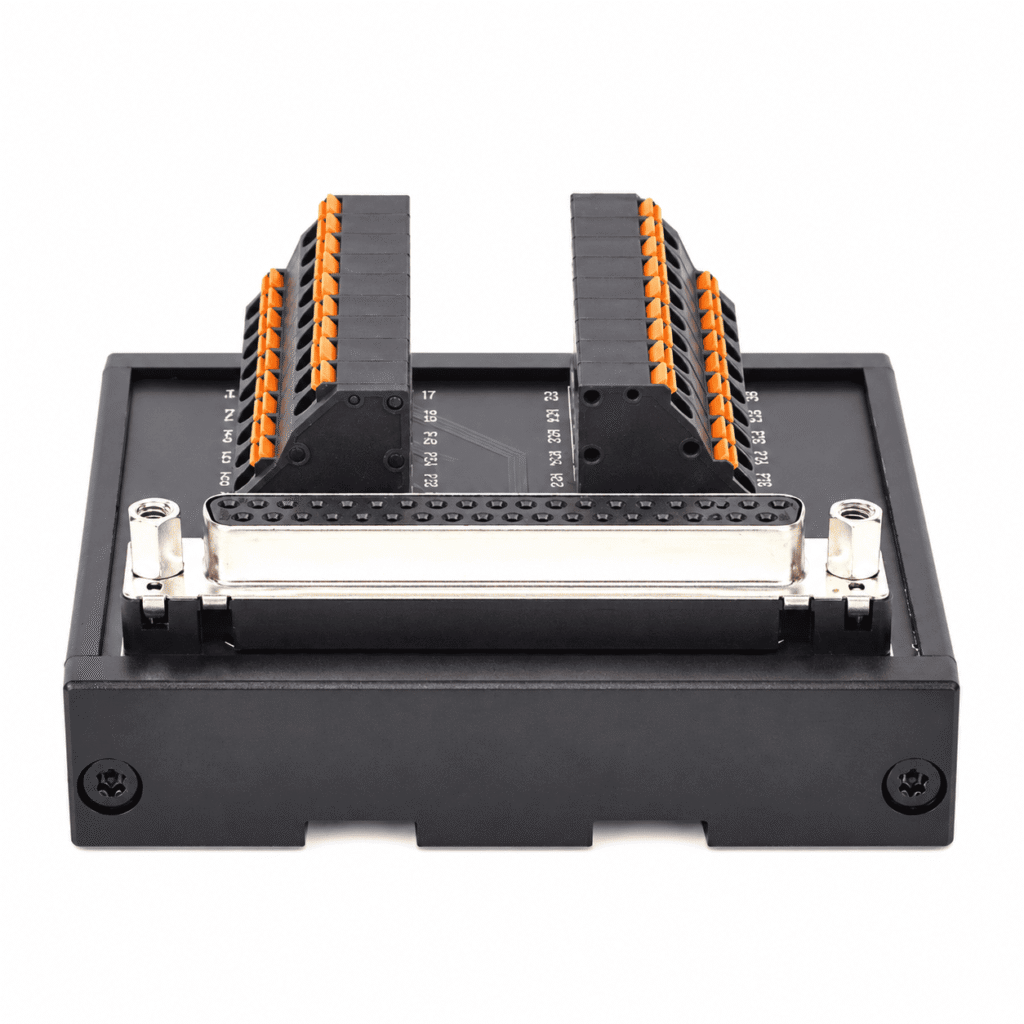

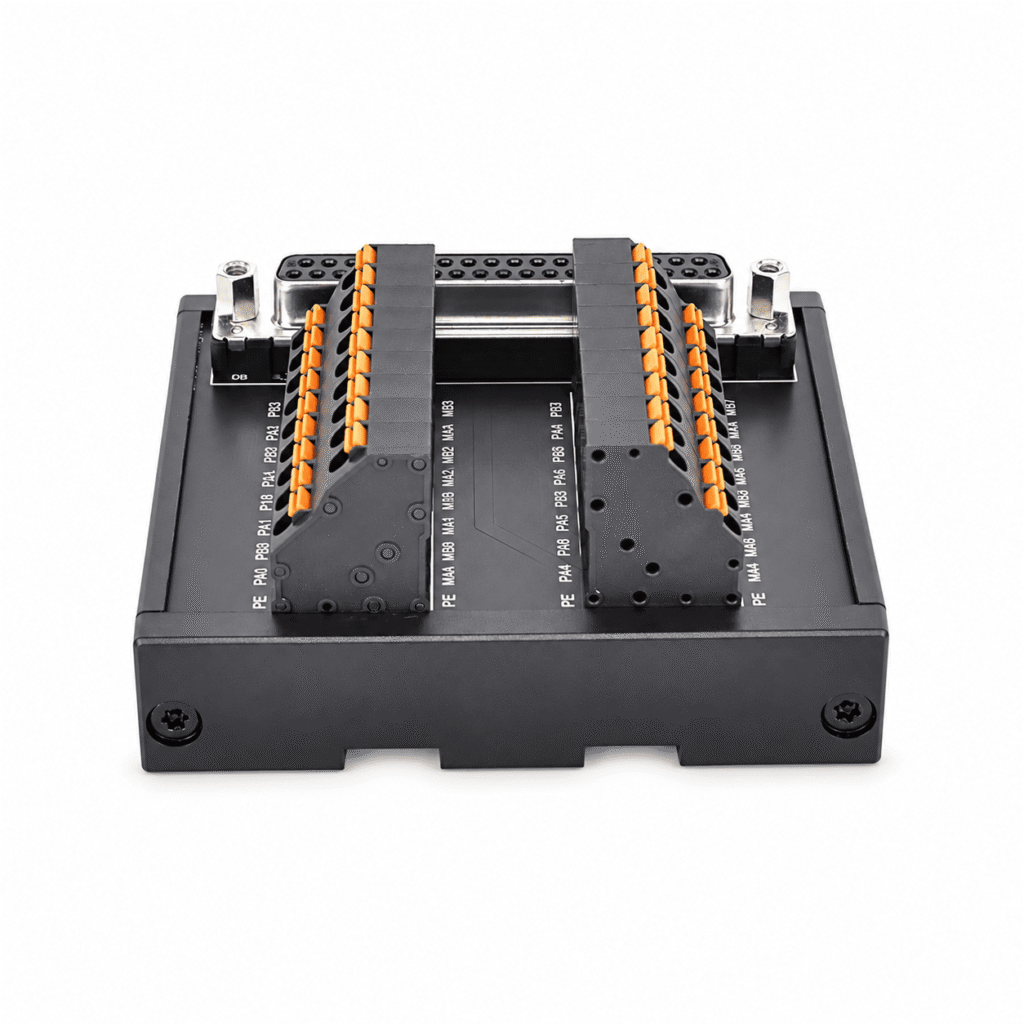

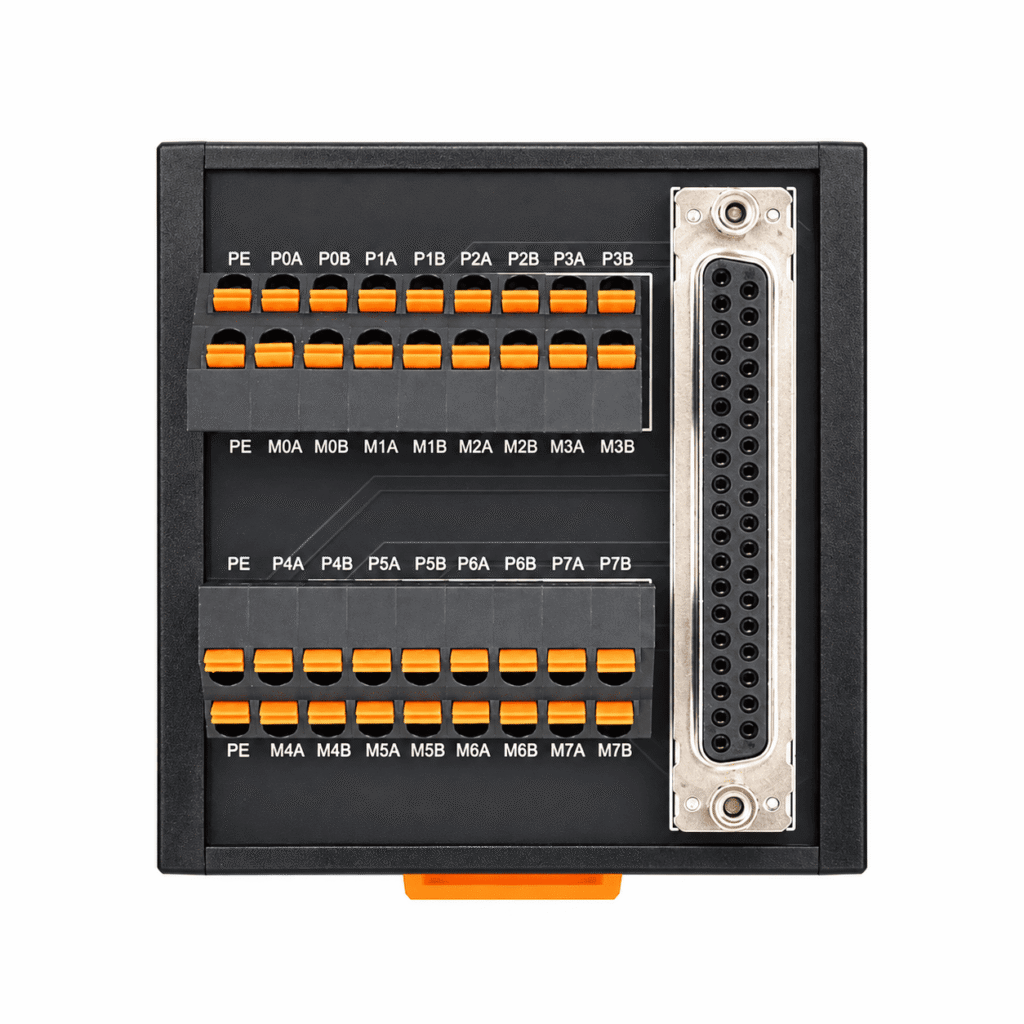

The NTDS37F-SP is a DIN rail mounted D-SUB interface module designed to break out a 37-pin female DB37 connector into individual spring-clamp terminal connections. The module provides a compact and convenient wiring solution for high-density industrial signal connections, allowing field wires to be connected directly without soldering or custom breakout cables. Rated at 24 VDC and 1 A, the NTDS37F-SP supports conductors up to 1.5 mm² / AWG16 and is suitable for PLC control cabinets, automation equipment, servo control systems, machine wiring, and test

Selection Attributes

Product Specifications

Only attributes assigned to this product are shown.

Product Type	D-SUB Interface Module
Input Interface	D-SUB
Output Interface	Terminal Block
Interface Specification	DB37
Gender	Female
Signal Points / Pins	37
Connection Technology	Spring Clamp
Rated Voltage	24 VDC
Rated Current	1 A
Max. Wire Size	1.5 mm²
Mounting Type	DIN Rail Mount
DIN Rail Type	TH35-7.5, G32

Engineering Data

Technical Data

Material, component and electrical data are grouped for easier review.

Interface Connector 5 parameters

Connector Body Material	PBT, UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold Plated
Component Rated Current	2 A
Connector Certification / Standard	<20 mΩ

Terminal Block 5 parameters

Terminal Block Housing Material	PA66, UL94 V-0
Terminal Contact Material	Copper
Terminal Contact Plating	Tin Plated
Component Rated Current	10 A
Terminal Block Certifications	UL, CQC, VDE

Module Body & PCB 5 parameters

Module Housing Material	PA66, UL94 V-0
Cover Material	PC, UL94 V-0
Fastener Material	PC, UL94 V-0
Fixing Screw Material	SUS304
PCB Material	SUS304

General Technical Data 3 parameters

Wire Range	Up to 1.5 mm²
AWG Range	AWG16

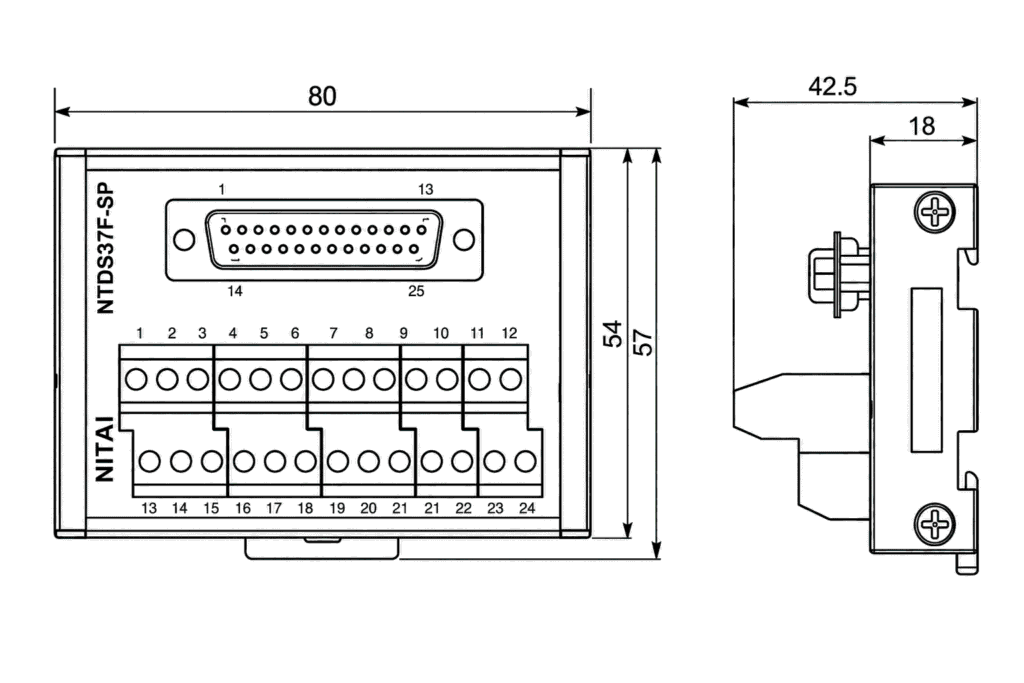

Dimensions L × W × H	117 × 57 × 43 mm

Product Family

Series Models

Compare the available configurations in this series. Click a model number to open its product page.

Pins	Gender	Structure	Screw Model	Spring Model	Dimensions
9	Male	Standard	NTDS09M-SC	NTDS09M-SP	66 × 57 × 30 mm
9	Female	Standard	NTDS09F-SC	NTDS09F-SP	66 × 57 × 30 mm
15	Male	Standard	NTDS15M-SC	NTDS15M-SP	66 × 57 × 43 mm
15	Female	Standard	NTDS15F-SC	NTDS15F-SP	66 × 57 × 43 mm
25	Male	Standard	NTDS25M-SC	NTDS25M-SP	80 × 57 × 43 mm
25	Female	Standard	NTDS25F-SC	NTDS25F-SP	80 × 57 × 43 mm
37	Male	Standard	NTDS37M-SC	NTDS37M-SP	117 × 57 × 43 mm
37 Current	Female	Standard	NTDS37M-SC	NTDS37F-SP	117 × 57 × 43 mm
44	Male	High-Density	NTDS44M-SC	NTDS44F-SP	117 × 57 × 43 mm
44	Female	High-Density	NTDS44F-SC	NTDS44F-SP	117 × 57 × 43 mm
50	Male	Standard	NTDS50M-SC	NTDS50M-SP	143 × 57 × 43 mm
50	Female	Standard	NTDS50M-SC	NTDS50F-SP	143 × 57 × 43 mm

Request a Quote

Get a Quote for NTDS37F-SP

Send us your quantity, target specification, drawing or reference file. Our team will confirm the correct module configuration before quotation.

Current Product

NTDS37F-SP

D-SUB Interface Module

Pins / Signal Points: 37
