Interface Module D-SUB Interface Module

DIN Rail DB9 Female D-SUB to Spring Terminal Block Interface Module

Model: NTDS09F-SP

Interface

DB9

Signal Points / Pins

Connection

Spring Clamp

Rated Voltage

24 VDC

Rated Current

1 A

Mounting

DIN Rail Mount

Select Product Variant

Model

NTDS09F-SP

Module Type

D-SUB Interface Module

Pins

Request a Quote — NTDS09F-SP

Overview

Product Description

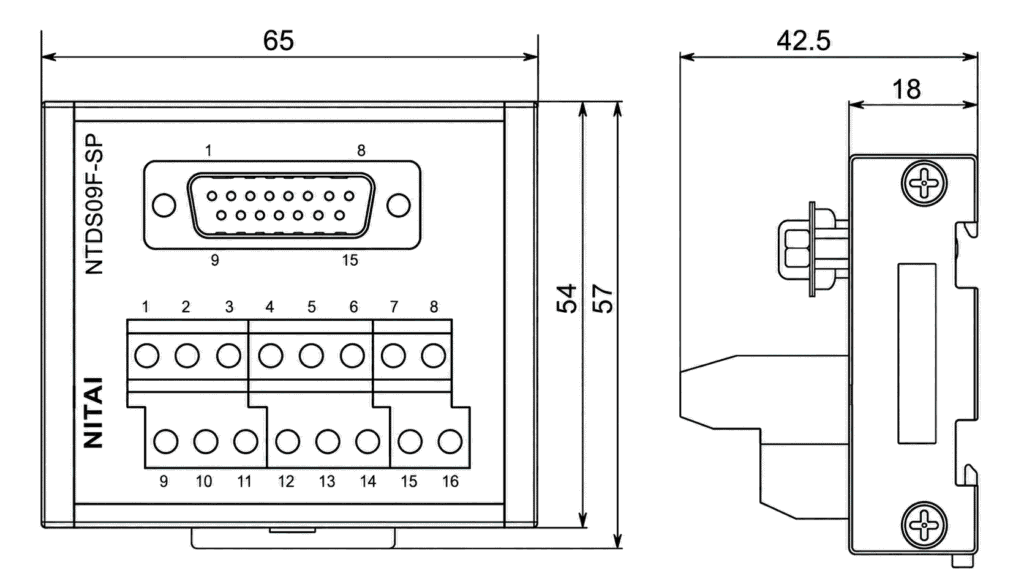

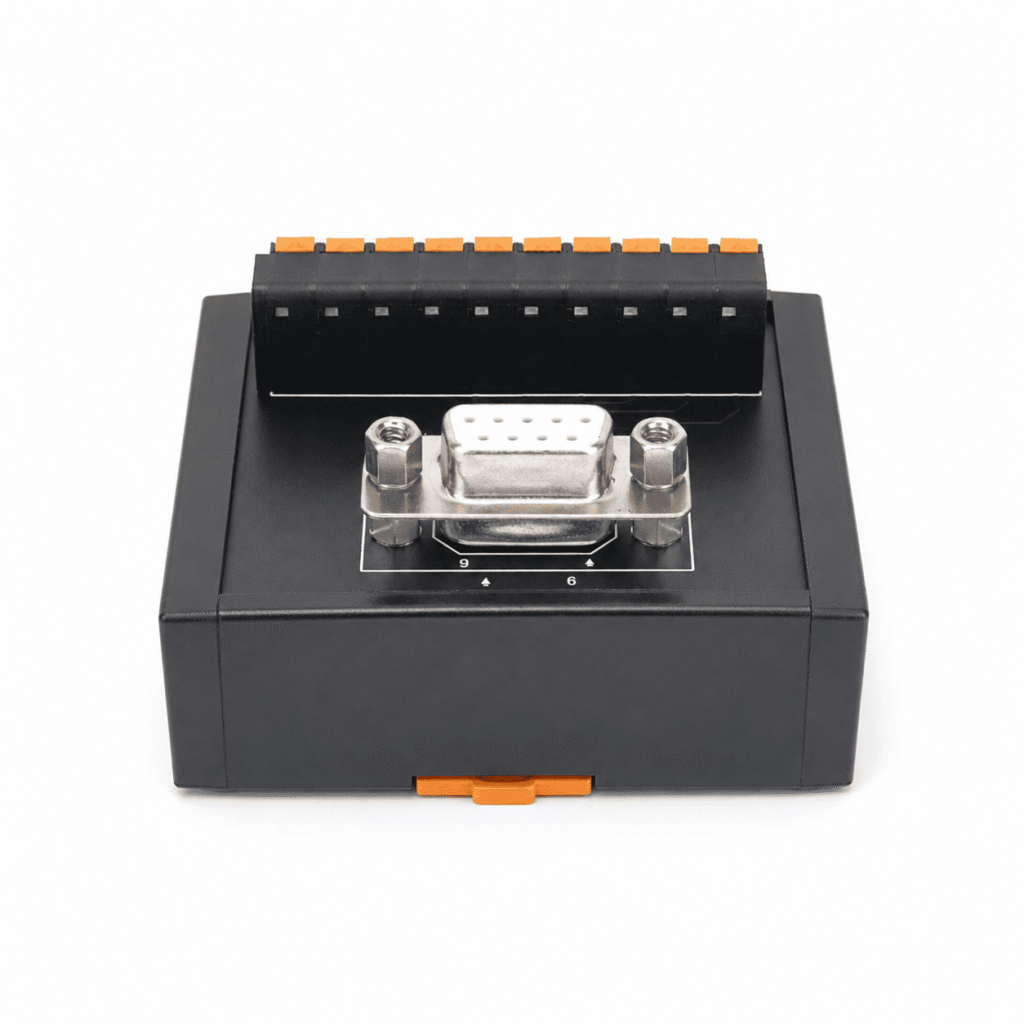

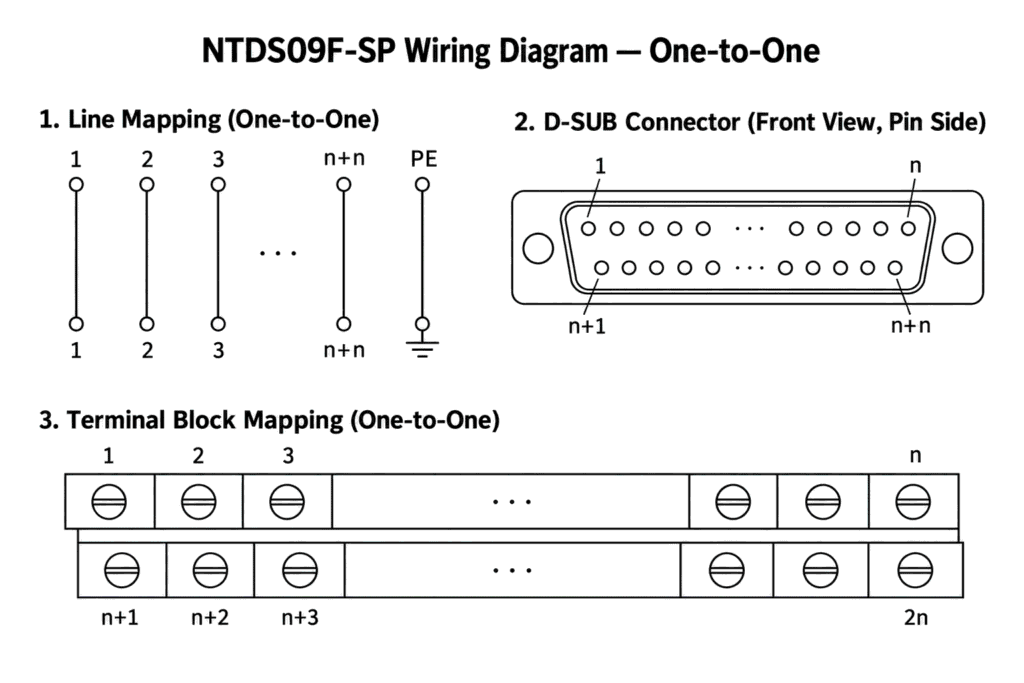

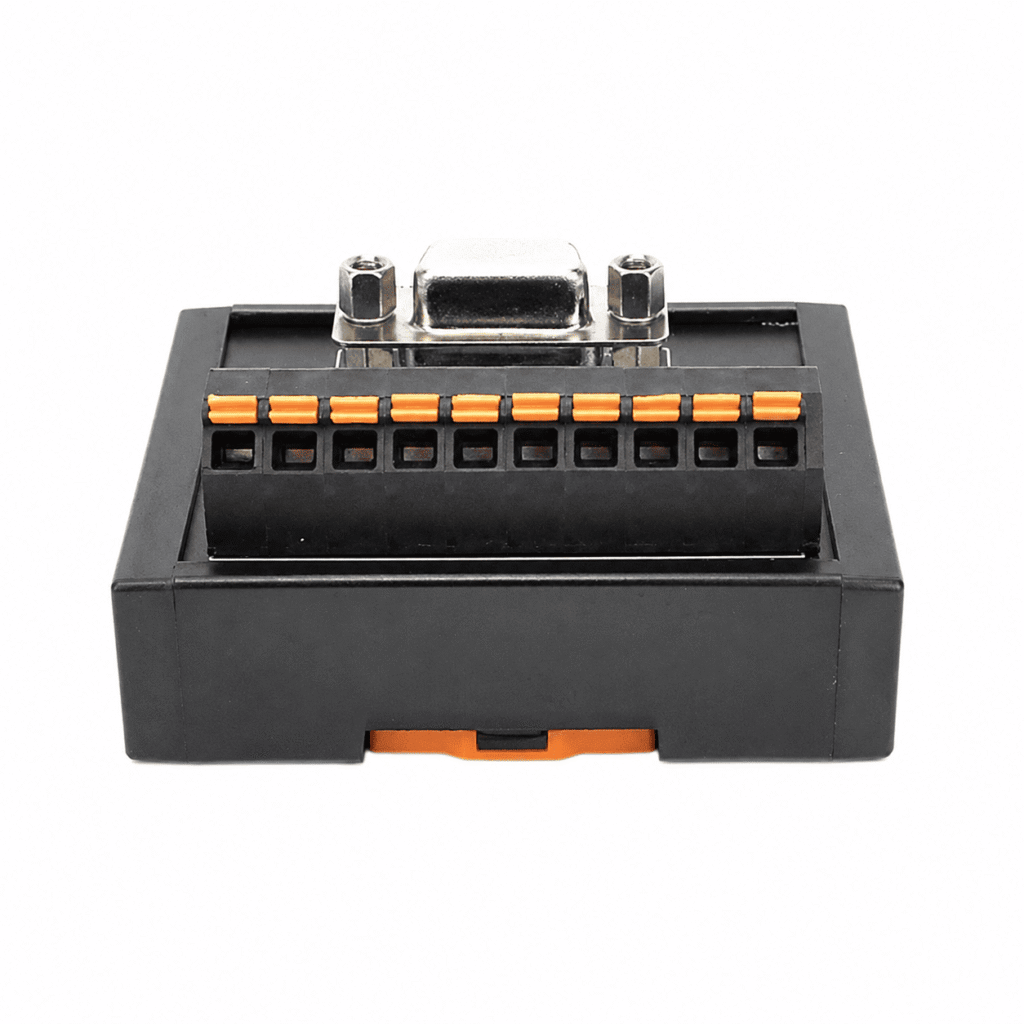

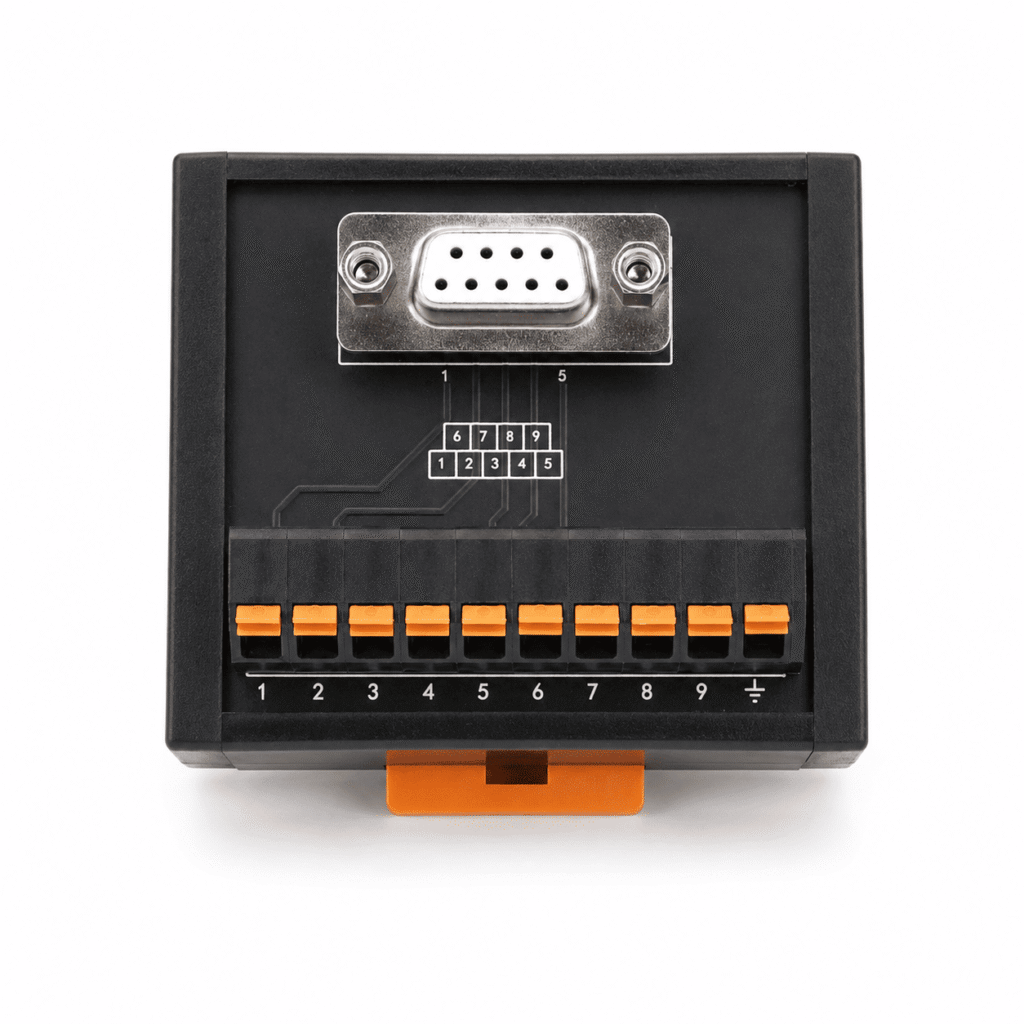

The NTDS09F-SP is a DIN rail mounted interface module that converts a 9-pin female D-SUB connector into individual spring-clamp terminal connections. It is designed for compact and convenient signal wiring in industrial control cabinets and automation systems. The spring-clamp connection enables fast wiring without soldering and simplifies installation, testing, maintenance, and signal breakout.

Selection Attributes

Product Specifications

Only attributes assigned to this product are shown.

Product Type	D-SUB Interface Module
Input Interface	D-SUB
Output Interface	Terminal Block
Interface Specification	DB9
Gender	Female
Signal Points / Pins	9
Connection Technology	Spring Clamp
Rated Voltage	24 VDC
Rated Current	1 A
Max. Wire Size	1.5 mm²
Mounting Type	DIN Rail Mount
DIN Rail Type	TH35-7.5, G32

Engineering Data

Technical Data

Material, component and electrical data are grouped for easier review.

Interface Connector 5 parameters

Connector Body Material	PBT, UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold Plated
Component Rated Current	2 A
Connector Certification / Standard	<20 mΩ

Terminal Block 5 parameters

Terminal Block Housing Material	PA66, UL94 V-0
Terminal Contact Material	Copper
Terminal Contact Plating	Tin Plated
Component Rated Current	10 A
Terminal Block Certifications	UL, CQC, VDE

Module Body & PCB 5 parameters

Module Housing Material	PA66, UL94 V-0
Cover Material	PC, UL94 V-0
Fastener Material	PC, UL94 V-0
Fixing Screw Material	SUS304
PCB Material	FR-4

General Technical Data 3 parameters

Wire Range	Up to 1.5 mm²
AWG Range	AWG16
Dimensions L × W × H	66 × 57 × 30 mm

Product Family

Series Models

Compare the available configurations in this series. Click a model number to open its product page.

Pins	Gender	Structure	Screw Model	Spring Model	Dimensions
9	Male	Standard	NTDS09M-SC	NTDS09M-SP	66 × 57 × 30 mm
9 Current	Female	Standard	NTDS09F-SC	NTDS09F-SP	66 × 57 × 30 mm
15	Male	Standard	NTDS15M-SC	NTDS15M-SP	66 × 57 × 43 mm
15	Female	Standard	NTDS15F-SC	NTDS15F-SP	66 × 57 × 43 mm
25	Male	Standard	NTDS25M-SC	NTDS25M-SP	80 × 57 × 43 mm
25	Female	Standard	NTDS25F-SC	NTDS25F-SP	80 × 57 × 43 mm
37	Male	Standard	NTDS37M-SC	NTDS37M-SP	117 × 57 × 43 mm
37	Female	Standard	NTDS37F-SC	NTDS37F-SP	117 × 57 × 43 mm
44	Male	High-Density	NTDS44M-SC	NTDS44F-SP	117 × 57 × 43 mm
44	Female	High-Density	NTDS44F-SC	NTDS44F-SP	117 × 57 × 43 mm
50	Male	Standard	NTDS50M-SC	NTDS50M-SP	143 × 57 × 43 mm
50	Female	Standard	NTDS50M-SC	NTDS50F-SP	143 × 57 × 43 mm
