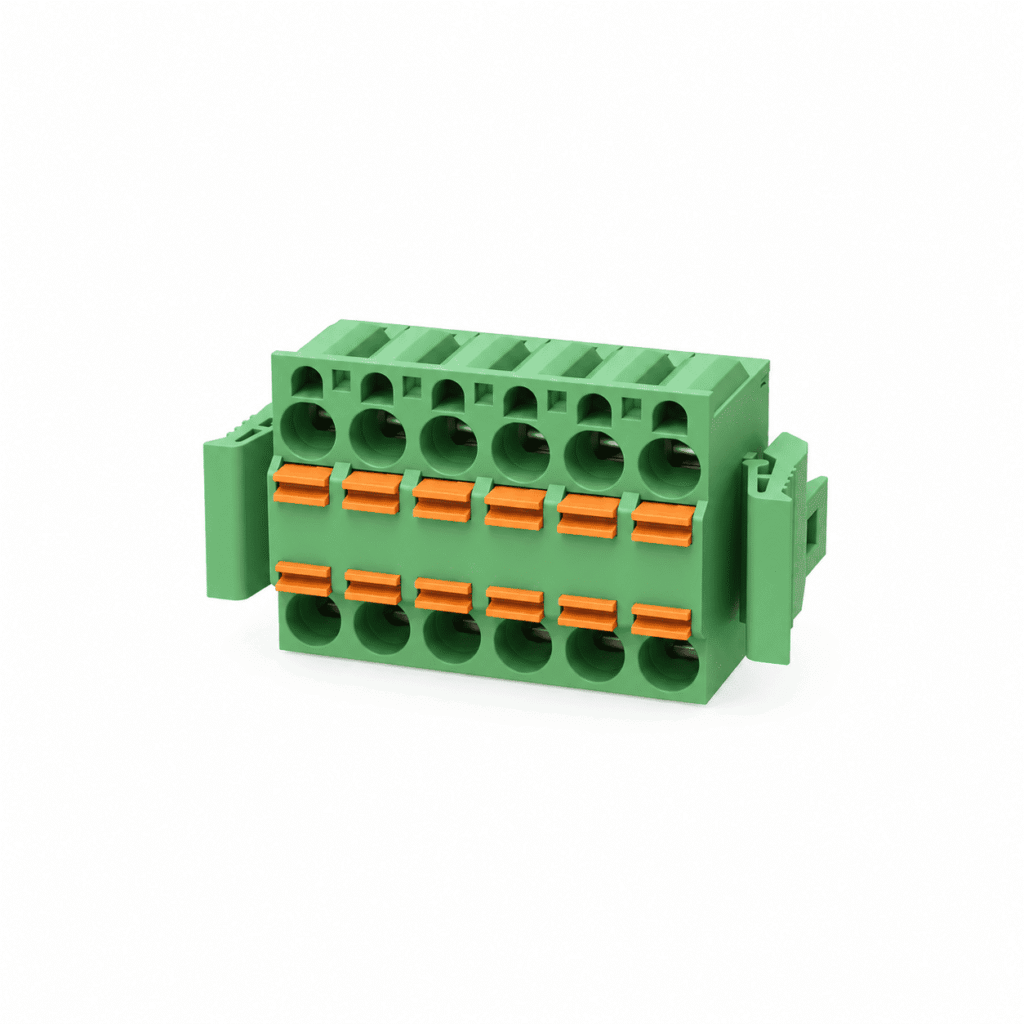

The NITAI PL Series 5.08mm pitch double-row pluggable PCB terminal block is designed for compact wire-to-board connections in industrial control equipment, automation systems, and electronic assemblies.
Featuring a double-row configuration and push-in spring connection, this terminal block provides six connection positions in a compact arrangement. The spring connection allows convenient wire termination without conventional screw tightening, while the pluggable design enables easy connection and disconnection from a compatible PCB-mounted header during installation and maintenance.
According to the detailed IEC specifications, the connector has a rated current of 12A and a rated voltage of 320V under overvoltage category III and pollution degree 2 conditions. It supports solid and flexible conductors from 0.2 to 2.5mm².
The terminal block features a green PA66 insulating housing, copper alloy contacts, and tin-plated connection and contact surfaces. Its double-row design is suitable for PCB assemblies requiring multiple connections within limited installation space.
Typical Applications
- Industrial control boards
- PLC control equipment
- Industrial automation systems
- Power supply and control circuits
- Electronic instruments
- Control cabinets and electrical assemblies
- Compact PCB-based power and signal connections
NITAI provides pluggable PCB terminal block solutions for different PCB layouts, wiring requirements, and industrial applications. Contact us for dimensional drawings, technical specifications, samples, and OEM/ODM customization options.
