M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter
M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter
M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter
M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter thumbnail
M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter thumbnail
M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter thumbnail
M12 Series M12 Connectors Unshielded

M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter

Pins
3, 4
Coding
A-Coded
Gender
1 Male to 2 Female
Orientation
Y Type
Wiring
Solder Type

Select Variant

Number of Pins

Coding

Request a Quote

Product Overview

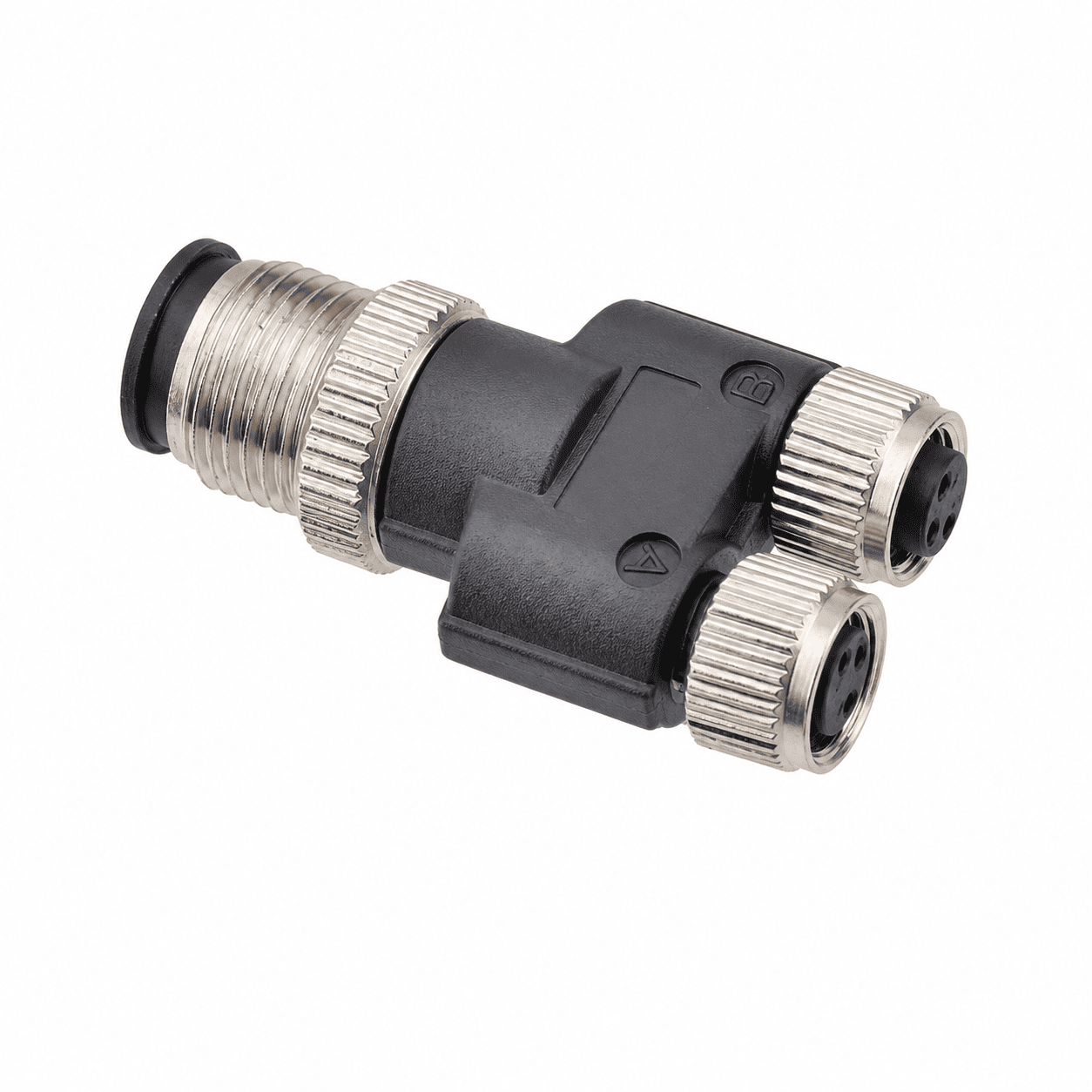

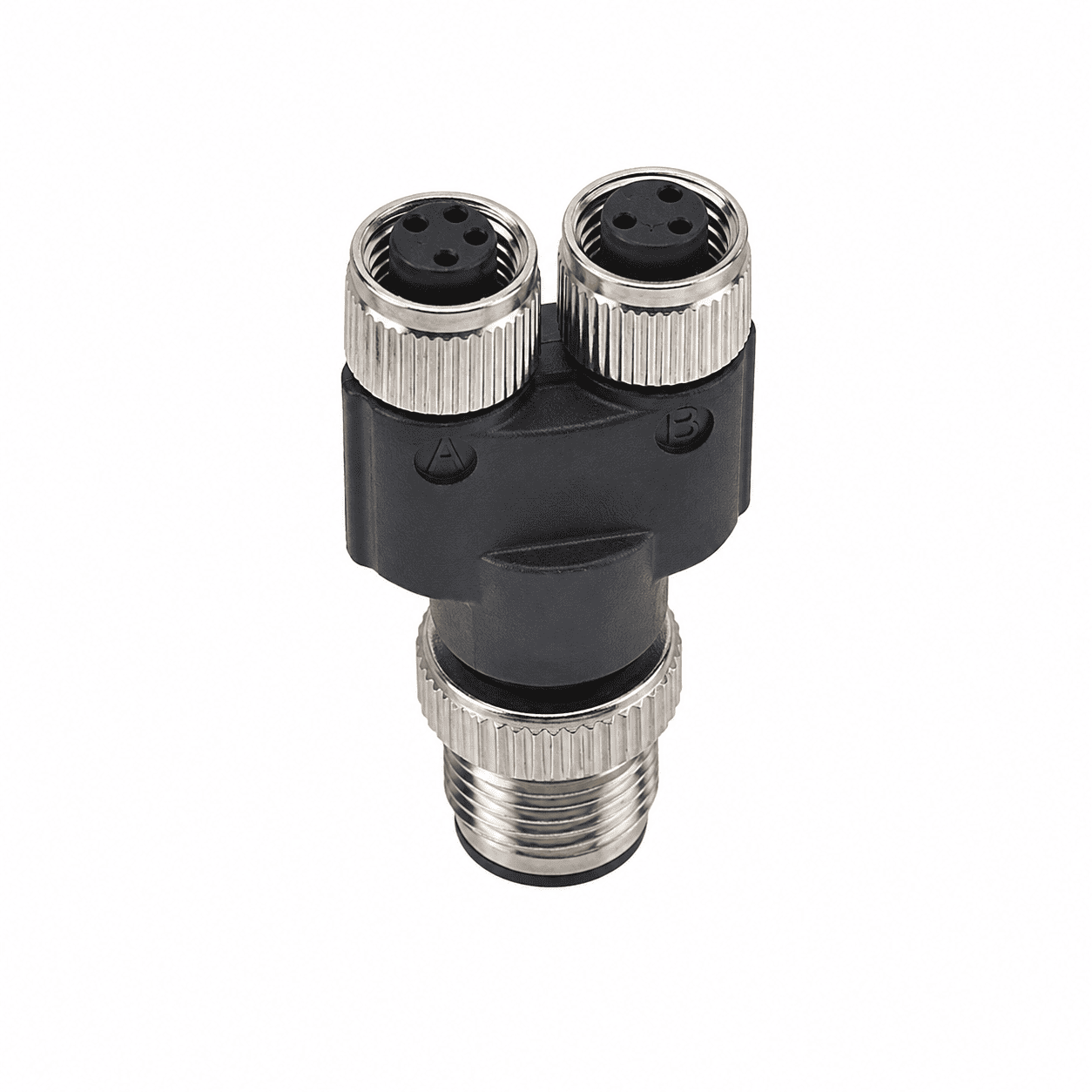

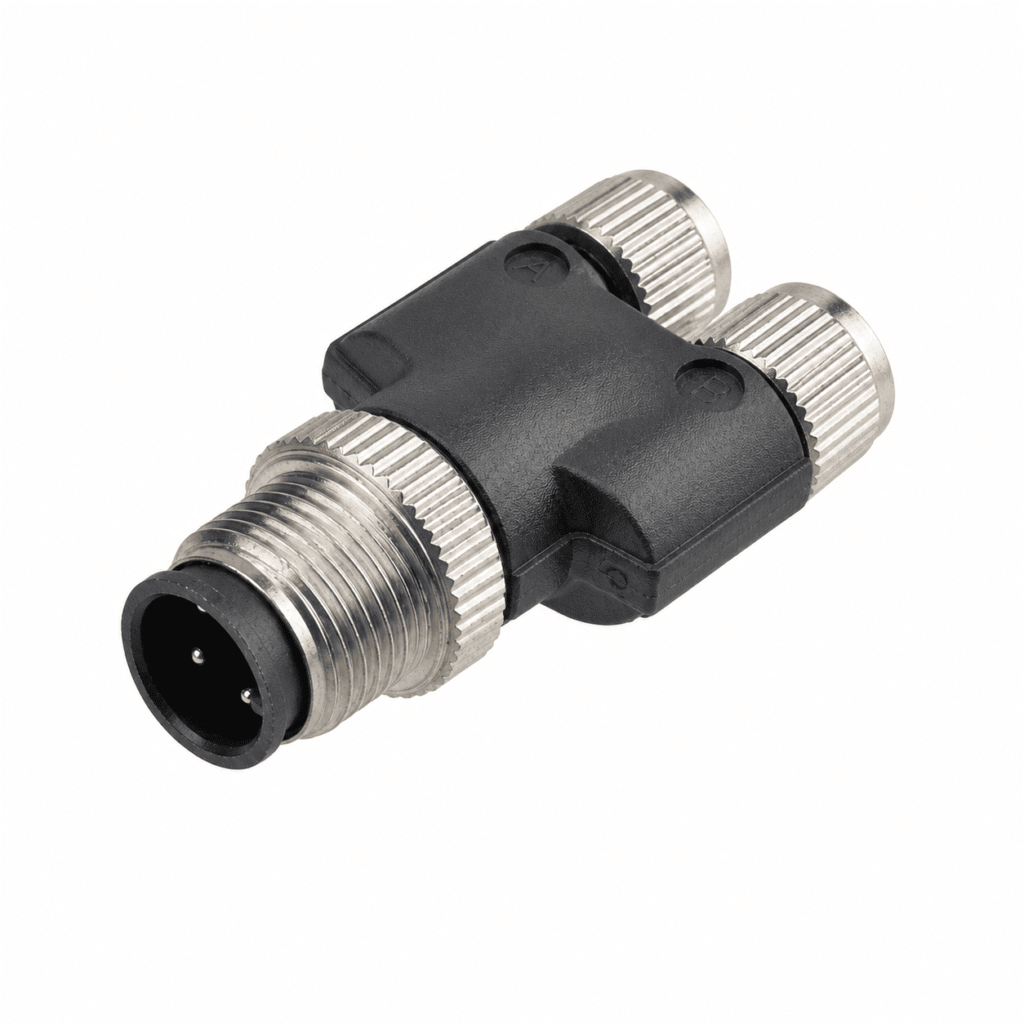

The M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter is designed to distribute one M12 signal connection into two M8 female interfaces for industrial automation and sensor connection systems.

Its compact Y-shaped structure combines one M12 male interface with two M8 female sockets, providing a convenient plug-and-play solution for connecting two sensors, actuators, or other field devices from a single M12 connection point.

The factory-assembled adapter eliminates additional cable splicing and simplifies field installation, equipment wiring, and maintenance. Standard M12×1 and M8×1 threaded interfaces provide secure mating with compatible industrial connectors.

Available in 3-pin and 4-pin A-coded configurations, this adapter is particularly suitable for common industrial sensor and actuator applications.

Technical Specifications

Specifications for M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter
Product Name M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter
Series M12
Structure Type Adapter
Gender 1 Male to 2 Female
Number of Pins 3, 4
Coding A-Coded
Orientation Y Type
Wiring Method Solder Type
Cable Material PVC, PUR
Shielded Unshielded
Category M12 Connectors

Electrical & Mechanical Parameters

Shell Material Brass nickel-plated/Zinc alloy nickel-plated/PA
Insulator Material PA/TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphor Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Signal Type Y-Type M12 Male to 2 M8 Female Adapter Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine
