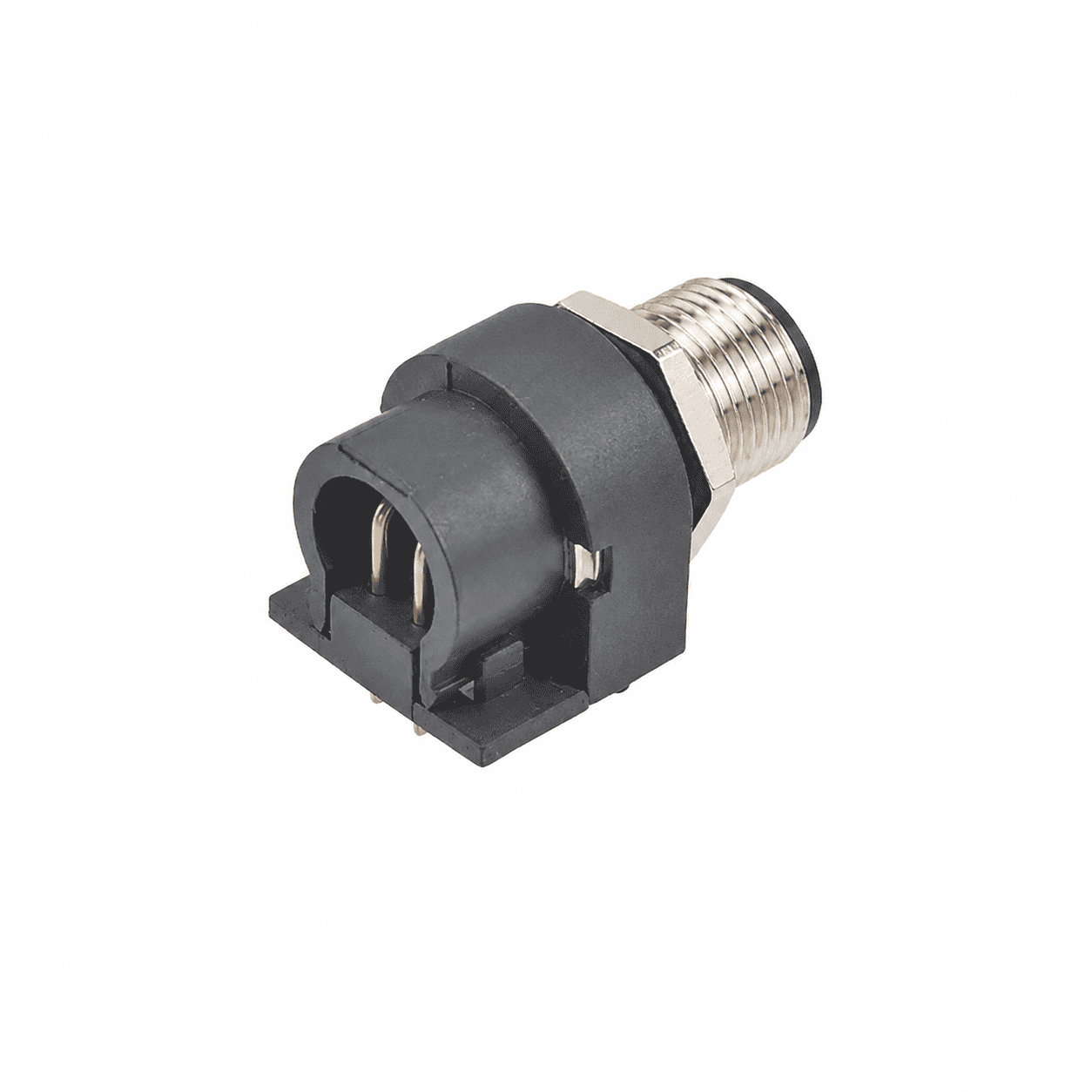

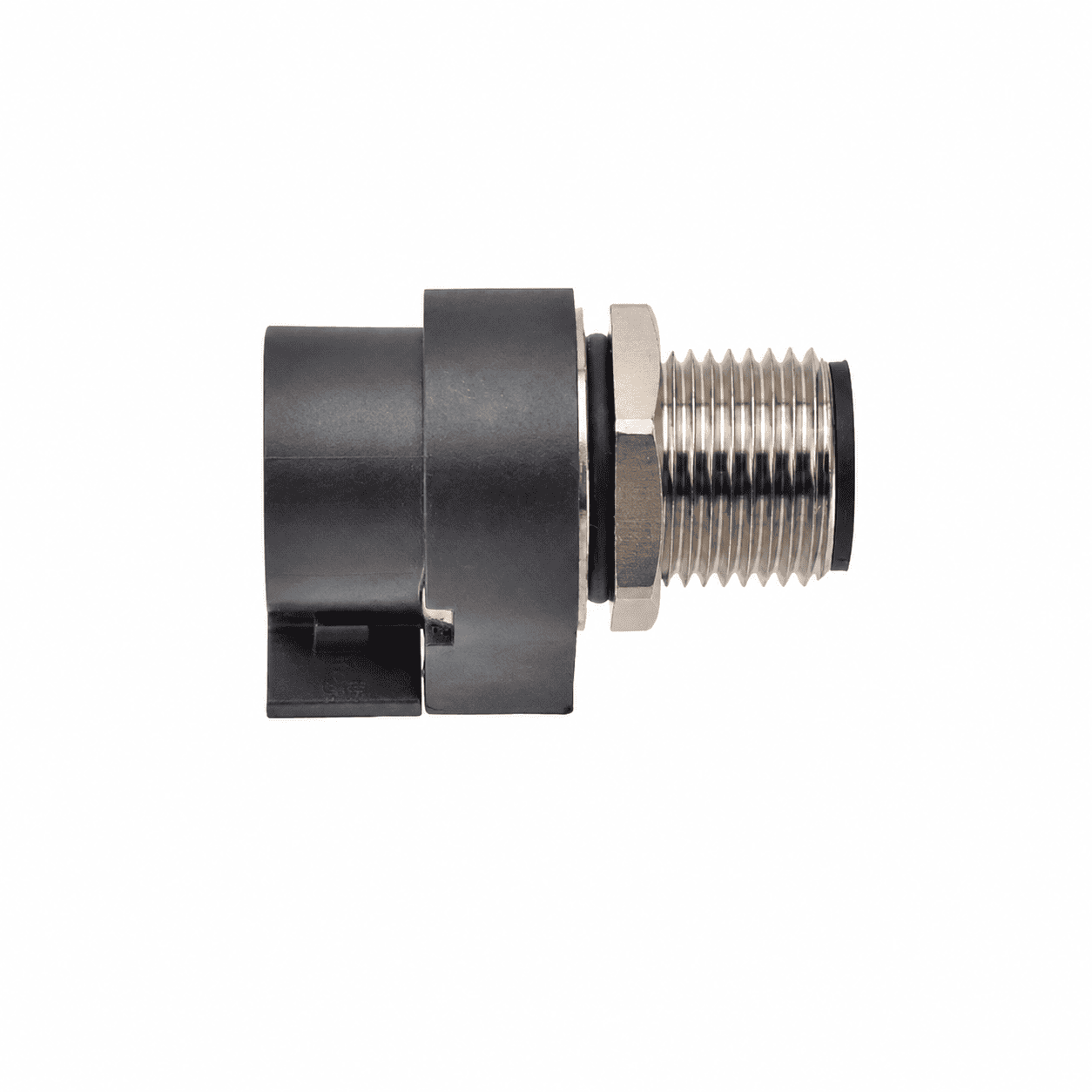

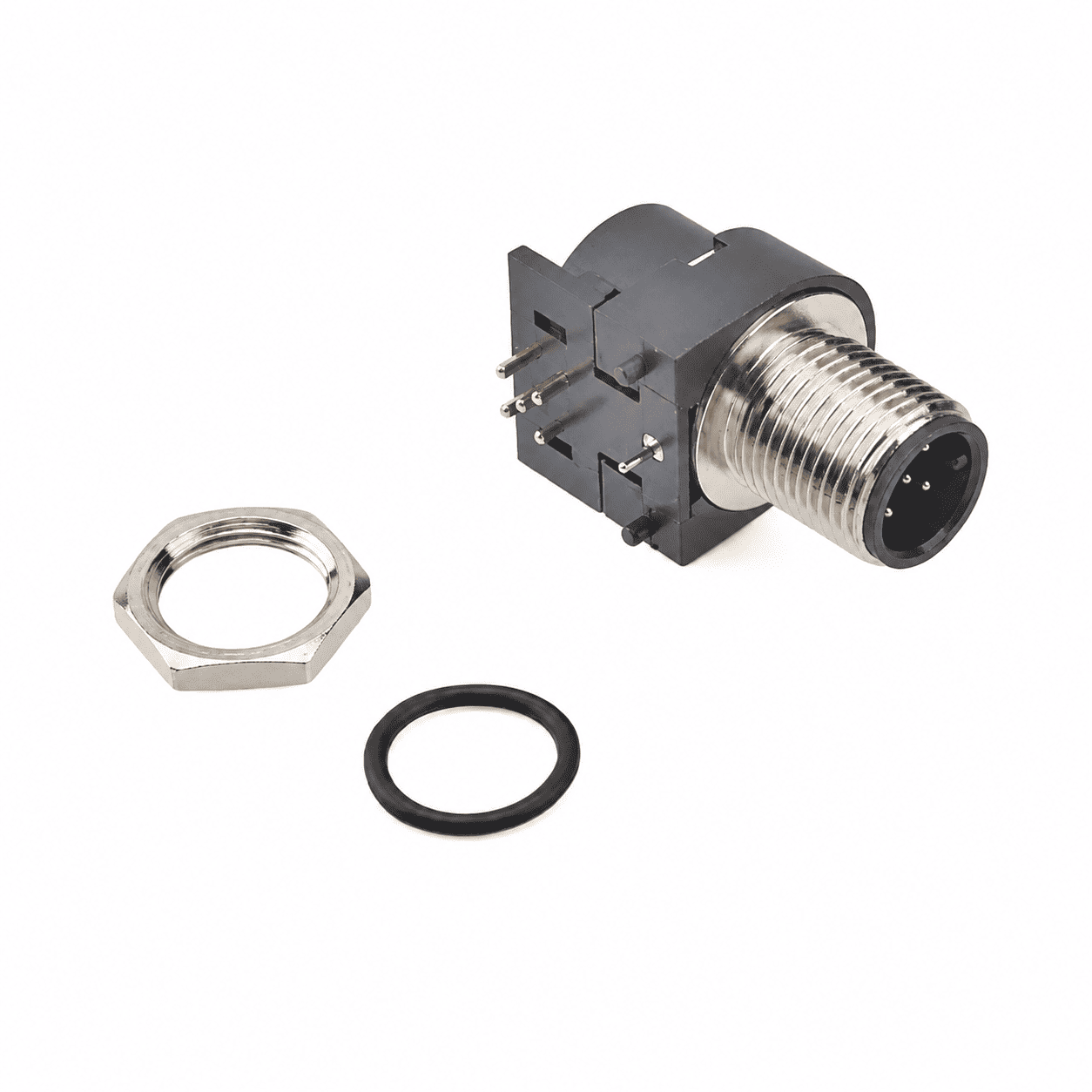

The M12 Signal Type Angled Female Back Mount Socket – PCB M12×1 Large Housing is designed for direct PCB integration in industrial automation, control, and signal connection equipment.
Featuring an M12 female interface, 90° angled PCB contacts, back-mount panel structure, and enlarged housing design, the socket provides additional internal space for higher contact-count configurations while maintaining a compact right-angle board connection.
The back-mount design allows the receptacle to be installed from the rear side of an equipment panel, while the angled PCB contacts enable direct soldering to the printed circuit board without additional cable wiring.
The large housing version supports a wider range of contact configurations, including 17-pin A-coded versions, making it suitable for applications requiring higher signal density.
