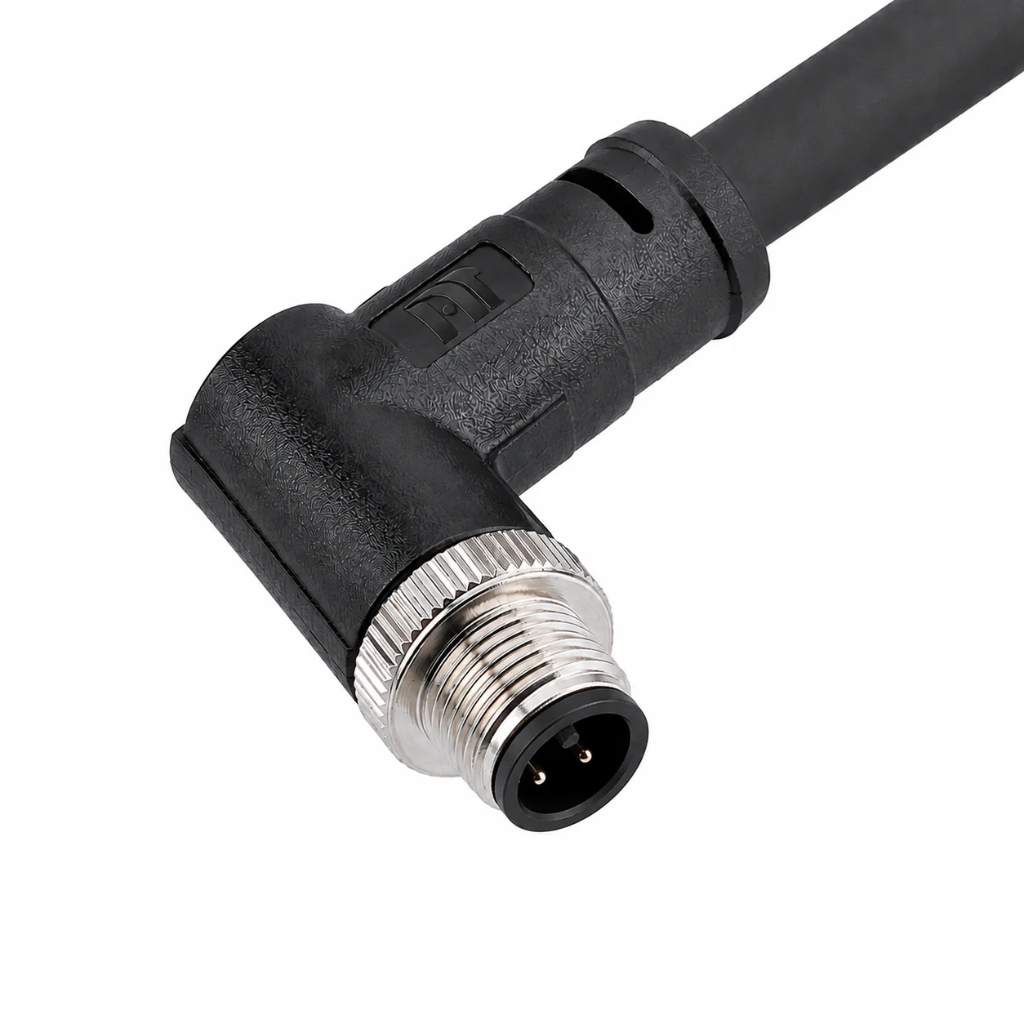

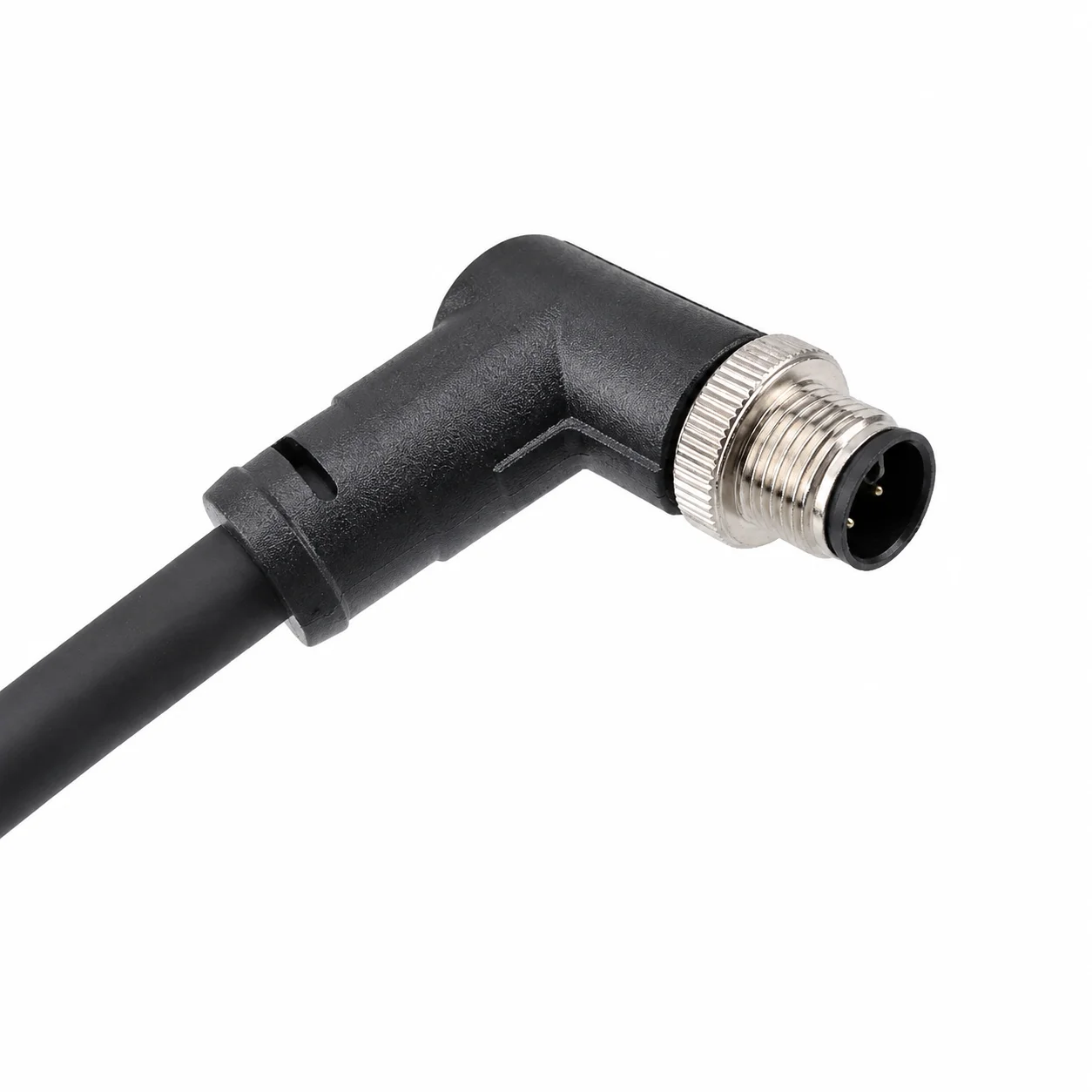

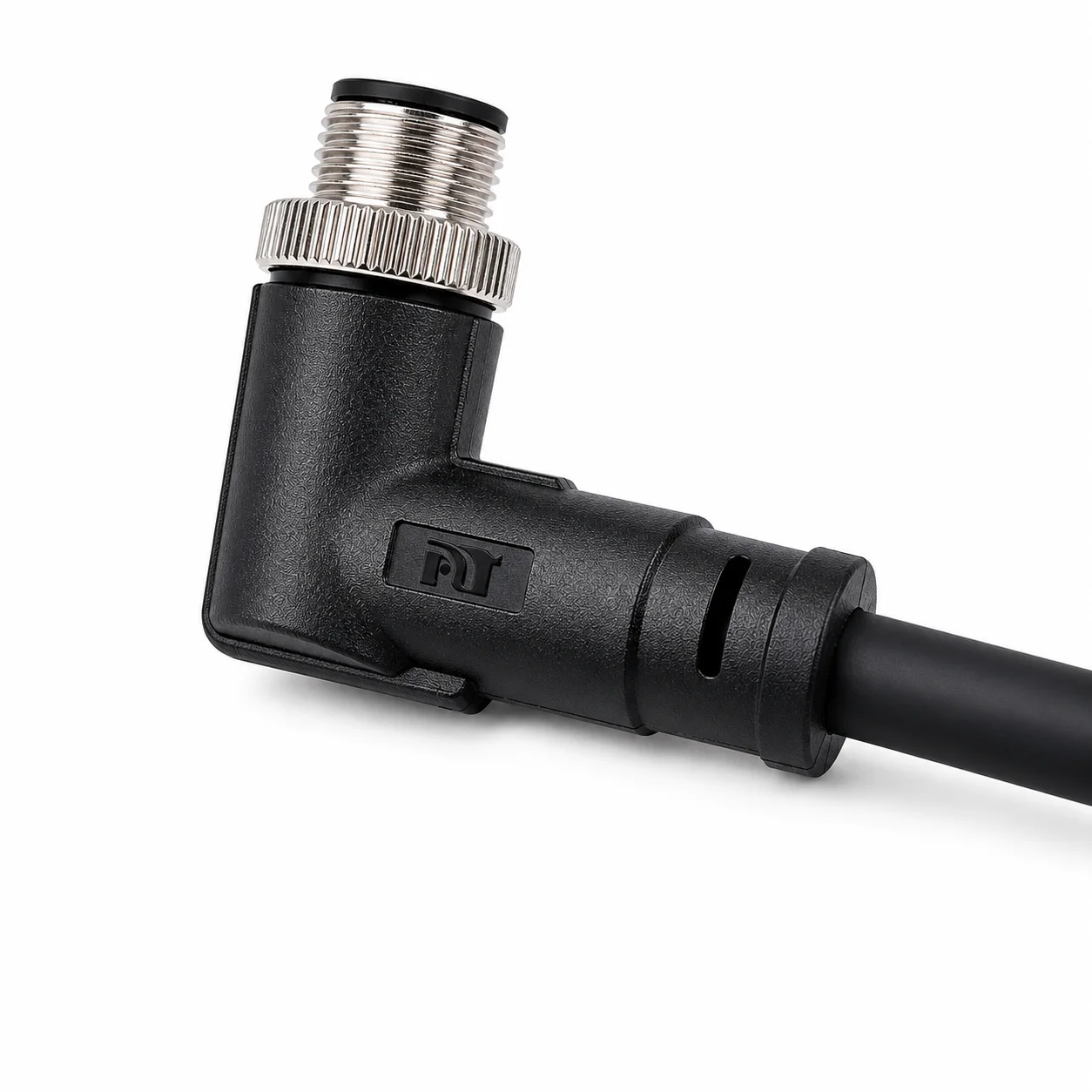

The M12 Power Type Angled Male Plastic Plug is designed for reliable power transmission in industrial automation applications where installation space is limited and angled cable routing is required.
This connector features an overmolded plastic housing, providing stable strain relief, vibration resistance, and long-term durability in harsh industrial environments.
It complies with IEC 61076-2-101 standard, ensuring compatibility with global industrial systems.
| Product Name | M12 Power Type Angled Male Plastic Plug – Overmolded |
| Series | M12 |
| Structure Type | Angled Overmolded Plug |
| Gender | Male |
| Number of Pins | 2, 3, 4, 5, 6, 2+PE, 3+PE, 4+PE |
| Coding | S-Coded, T-Coded, K-Coded, L-Coded |
| Wiring Method | Solder Type |
| Cable Material | PVC, PUR |
| Shielded | Unshielded |
| Category | M12 Connectors |
| Shell Material | Brass (Nickel-plated) / Zinc Alloy (Nickel-plated) / PA |
| Insulator Material | PA / TPU |
| Sealing Material | Epoxy Resin / Rubber |
| Contact Material | Brass / Phosphorus Bronze (Gold-plated) |
| Degree of Protection | IP65 / IP67 |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Insertion/Withdrawal Cycles | ≥ 500 mating cycles |
| Operating Temperature | -25°C ~ +80°C |
