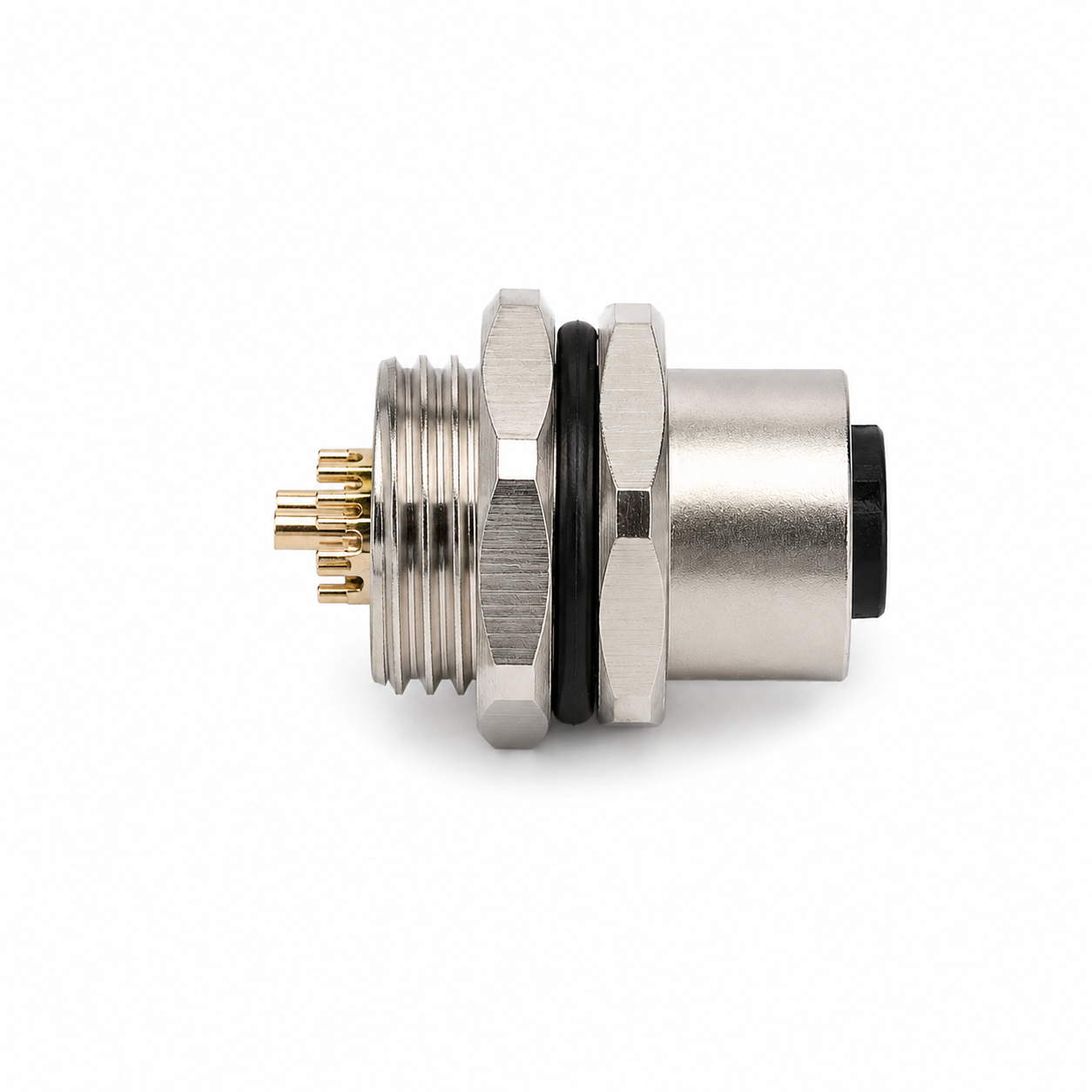

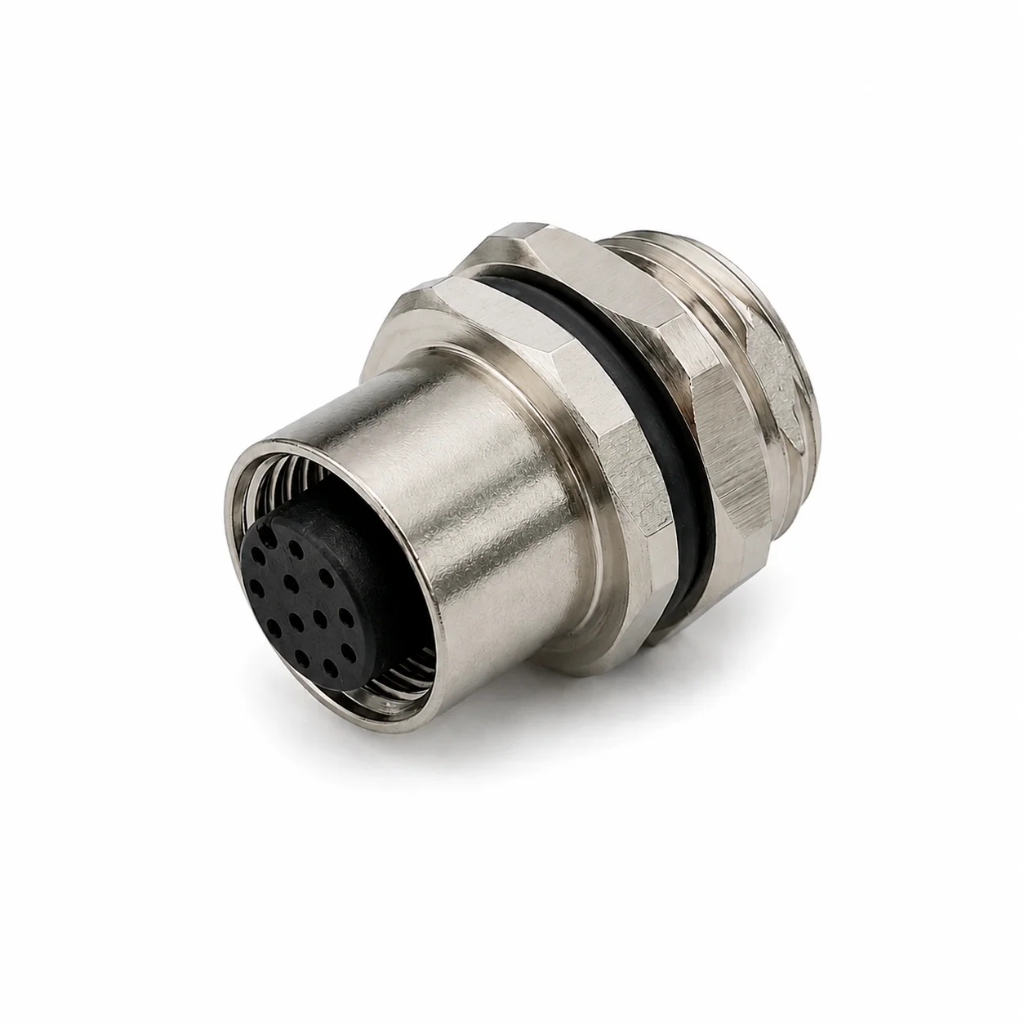

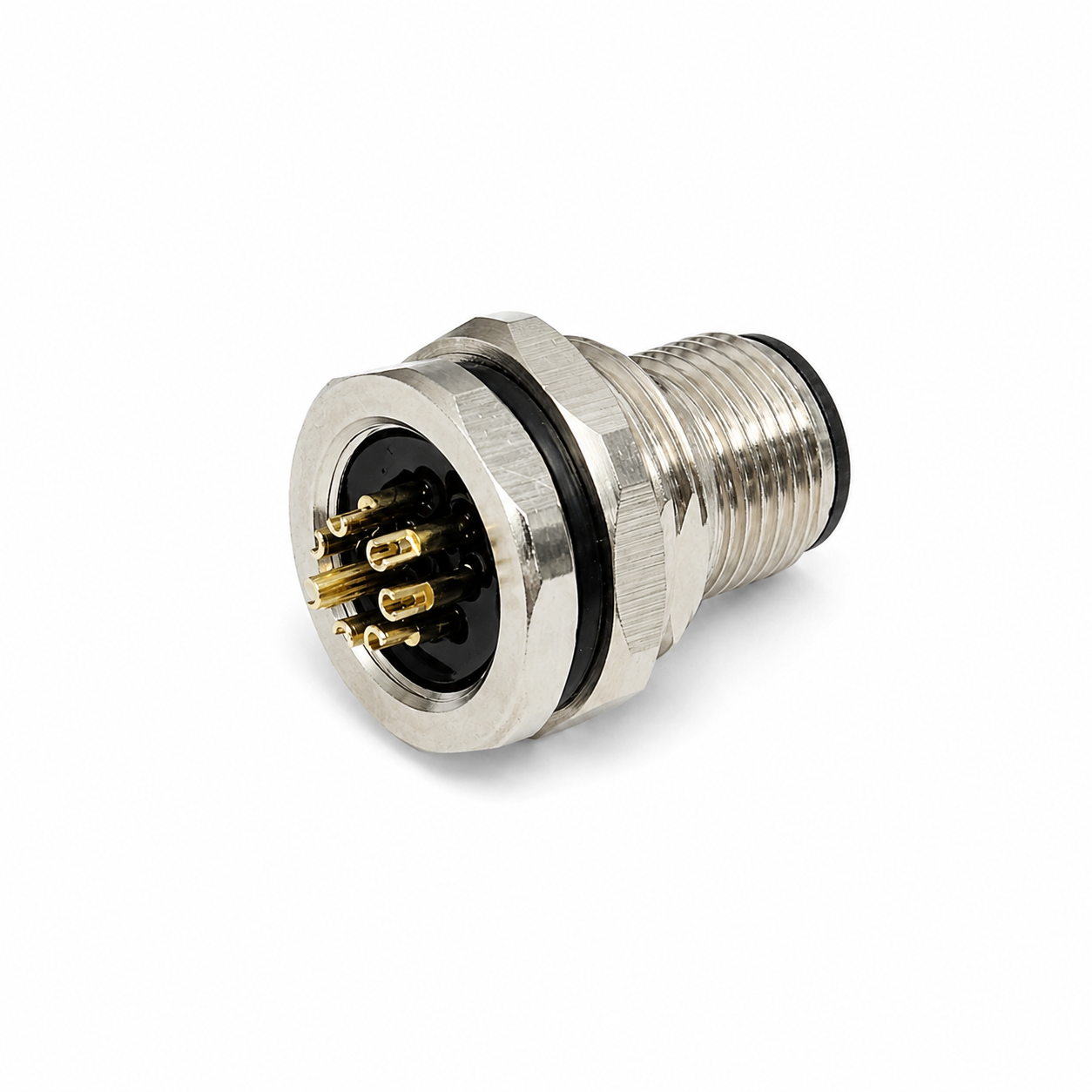

M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9
M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9
M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9
M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9 thumbnail
M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9 thumbnail
M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9 thumbnail
M12 Series M12 Connectors Unshielded

M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9

Pins
2, 3, 4, 5, 6, 8, 12, 17
Coding
A-Coded, B-Coded, D-Coded
Gender
Female
Thread
Array
Wiring
Solder Type

Select Variant

Number of Pins

Coding

Request a Quote

Product Overview

The M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9 is designed for reliable power transmission in industrial automation equipment, machinery, control systems, and power distribution applications.

Its back mount structure allows the socket to be installed from the rear side of the equipment panel, creating a secure and compact M12 power interface. The solder termination provides flexible internal wiring and a stable electrical connection for equipment assembly and maintenance.

Available with M16×1.5 or PG9 mounting threads, this socket can meet different panel installation requirements. Manufactured in accordance with IEC 61076-2-101, it provides dependable performance and compatibility with standard M12 power connector systems.

Technical Specifications

Specifications for M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9
Product Name M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9
Series M12
Structure Type Back Mount Socket
Gender Female
Number of Pins 2, 3, 4, 5, 6, 8, 12, 17
Coding A-Coded, B-Coded, D-Coded
Wiring Method Solder Type
Cable Material PVC, PUR
Thread Specification Array
PG7/PG9 PG9
Shielded Unshielded
Category M12 Connectors

Electrical & Mechanical Parameters

Shell Material Brass (Nickel-plated) / Zinc Alloy (Nickel-plated) / PA
Insulator Material PA / TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphor Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Power Type Back Mount Female Socket – Solder M16×1.5 / PG9 Technical Drawing

Click image to zoom · All dimensions in mm
