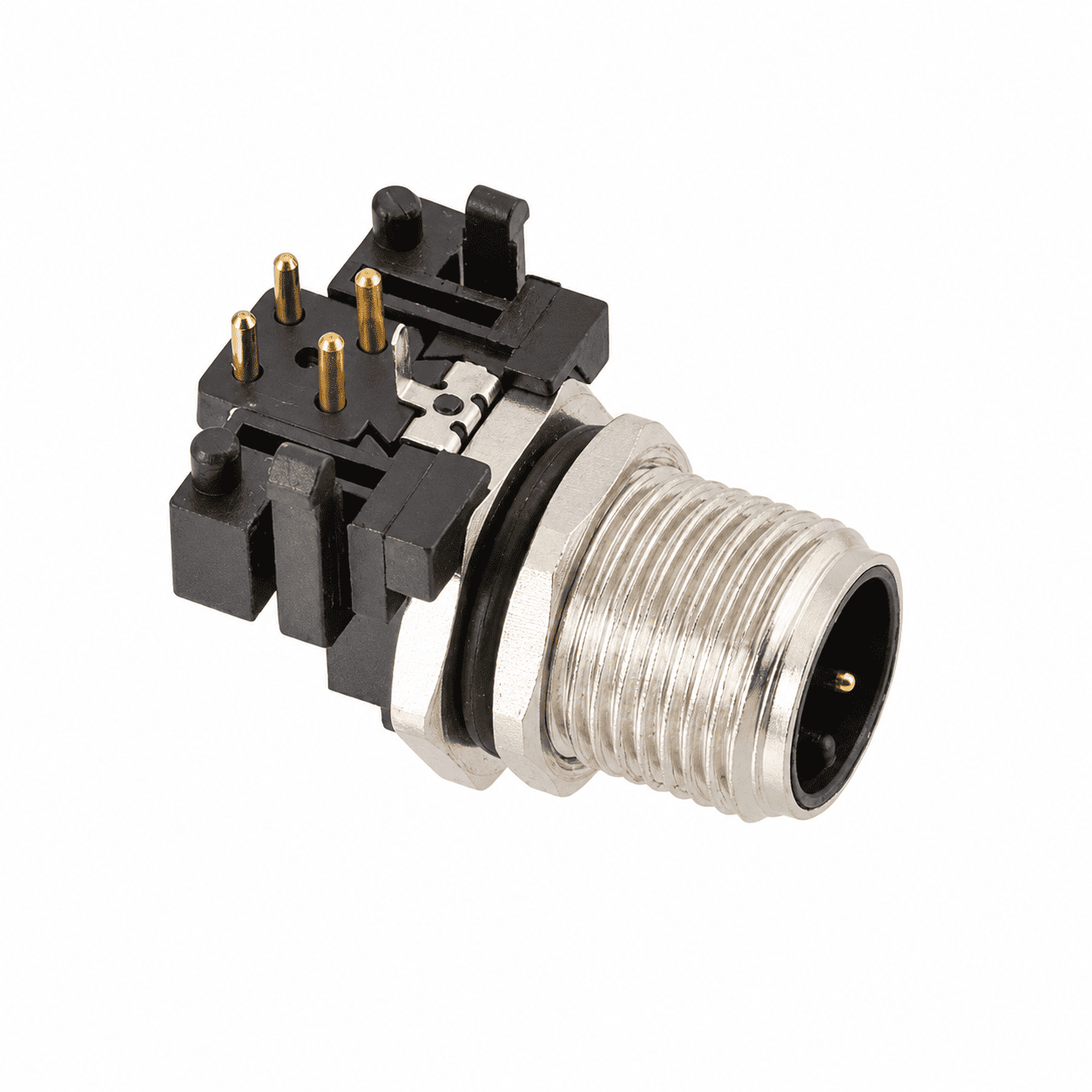

M12 Signal Type Angled Male Back Mount Socket – PCB M12×1

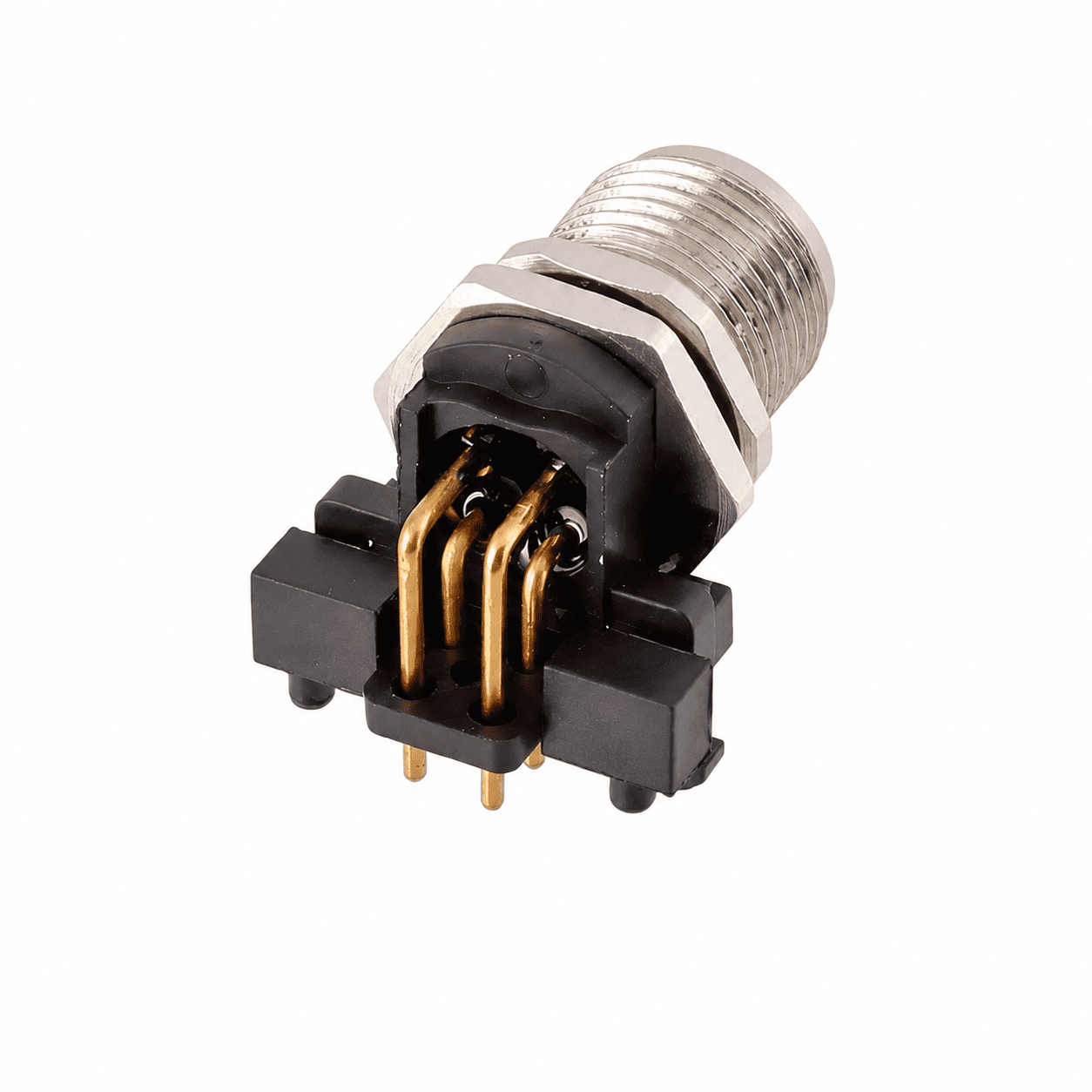

M12 Signal Type Angled Male Back Mount Socket – PCB M12×1

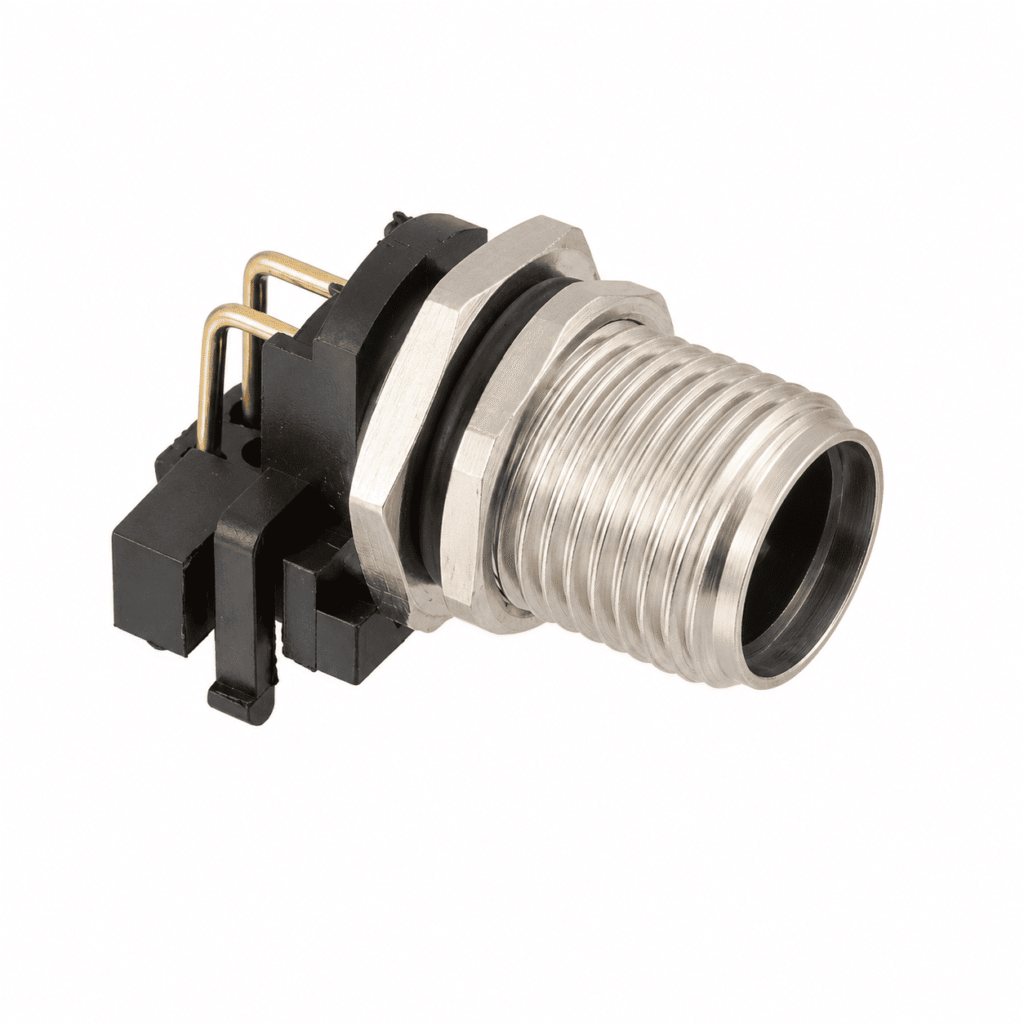

M12 Signal Type Angled Male Back Mount Socket – PCB M12×1

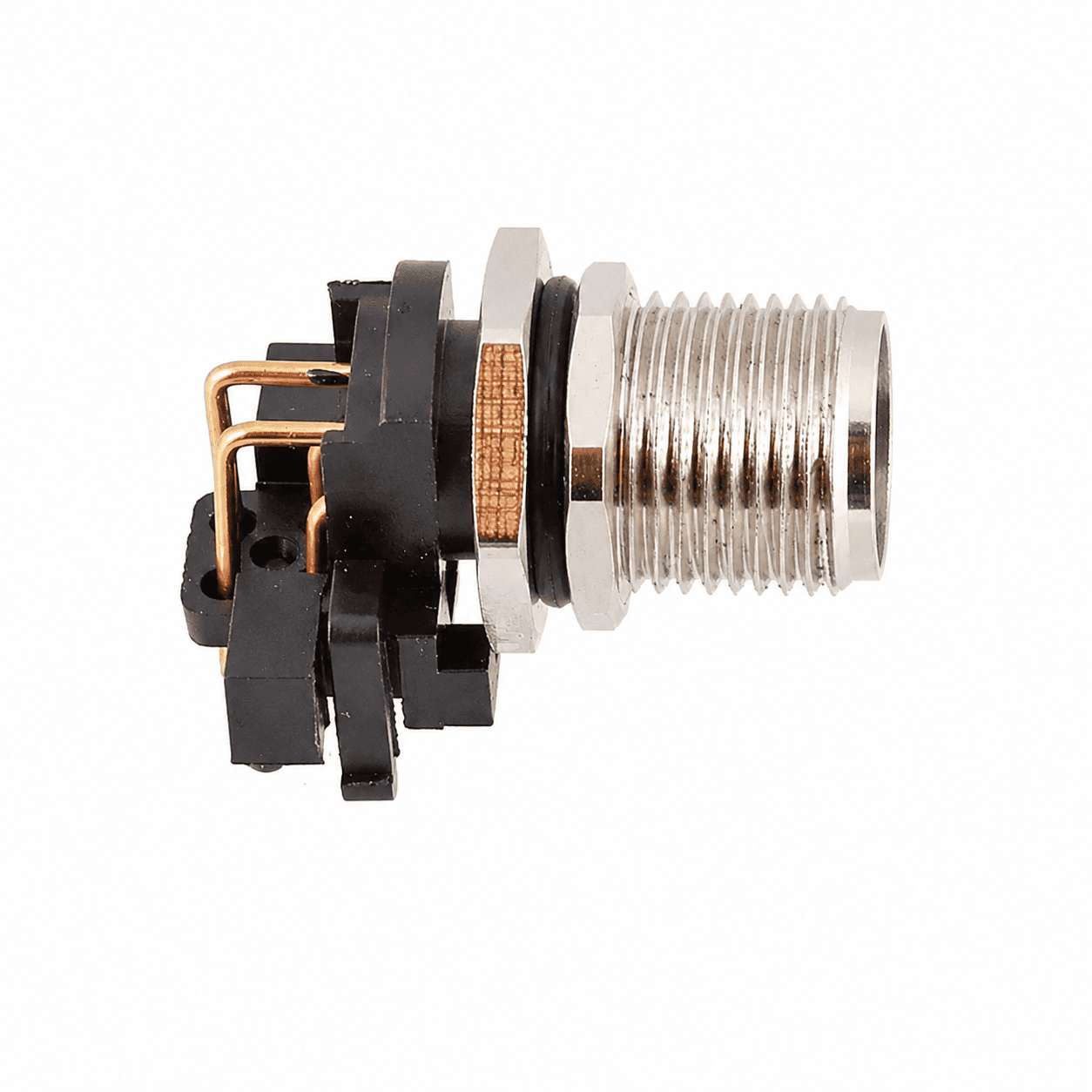

M12 Signal Type Angled Male Back Mount Socket – PCB M12×1
M12 Signal Type Angled Male Back Mount Socket – PCB M12×1 thumbnail
M12 Signal Type Angled Male Back Mount Socket – PCB M12×1 thumbnail
M12 Signal Type Angled Male Back Mount Socket – PCB M12×1 thumbnail
M12 Signal Type Angled Male Back Mount Socket – PCB M12×1 thumbnail
M12 Series M12 Connectors Shielded

M12 Signal Type Angled Male Back Mount Socket – PCB M12×1

Pins
2, 3, 4, 5, 6, 8, 12
Coding
A-Coded, B-Coded, D-Coded
Gender
Male
Orientation
Angled
Thread
M12*1
Wiring
PCB Solder Type

Select Product Options

Number of Pins

Coding

Request a Quote

Product Overview

The M12 Signal Type Angled Male Back Mount Socket – PCB M12×1 is designed for direct PCB integration in industrial automation, control, and signal connection equipment.

Featuring an angled M12 male interface, back-mount structure, PCB termination, and M12×1 mounting thread, the socket provides a compact board-level connection solution where installation space or PCB layout requires a right-angle contact arrangement.

The connector is mounted from the rear side of the equipment panel, while the angled PCB pins allow direct soldering to the printed circuit board. Grounded and ungrounded versions are available to meet different equipment grounding requirements.

Multiple A-coded, B-coded, and D-coded pin configurations are available for common industrial sensor, actuator, control, and signal applications.

Technical Specifications

Specifications for M12 Signal Type Angled Male Back Mount Socket – PCB M12×1
Product Name M12 Signal Type Angled Male Back Mount Socket – PCB M12×1
Series M12
Structure Type Angled Back Mount Socket
Gender Male
Number of Pins 2, 3, 4, 5, 6, 8, 12
Coding A-Coded, B-Coded, D-Coded
Orientation Angled
Wiring Method PCB Solder Type
Thread Specification M12*1
Shielded Shielded
Category M12 Connectors
Mounting Type 90° Panel Mount

Electrical & Mechanical Parameters

Shell Material Brass nickel-plated/Zinc alloy nickel-plated/PA
Insulator Material PA/TPU
Sealing Material Epoxy Resin / Rubber
Contact Material Brass / Phosphor Bronze (Gold-plated)
Degree of Protection IP65 / IP67
Insulation Resistance ≥100 MΩ
Contact Resistance ≤5 mΩ
Insertion/Withdrawal Cycles ≥500 Mating Cycles
Operating Temperature -25°C ~ +80°C

Technical Drawing

M12 Signal Type Angled Male Back Mount Socket – PCB M12×1 Technical Drawing

Click image to zoom · All dimensions in mm

Application Solutions

Engineered for demanding industrial environments across a wide range of applications.

Industrial Automation

Reliable signal and power for PLC systems, control cabinets, and automated production lines.

PLC Systems Control Cabinets I/O Modules

Sensor & Actuator Networks

High-density connectivity for proximity sensors, photoelectric sensors, and actuators.

Proximity Sensors Vision Systems Actuators

Robotics & Smart Manufacturing

Compact, vibration-resistant connections for robotic arms, cobots, and intelligent manufacturing.

Robotic Arms Cobots AGV Systems

Outdoor & Harsh Environments

IP67/IP68 rated for outdoor, food processing, marine, and wash-down environments.

IP67/IP68 Food & Beverage Marine
