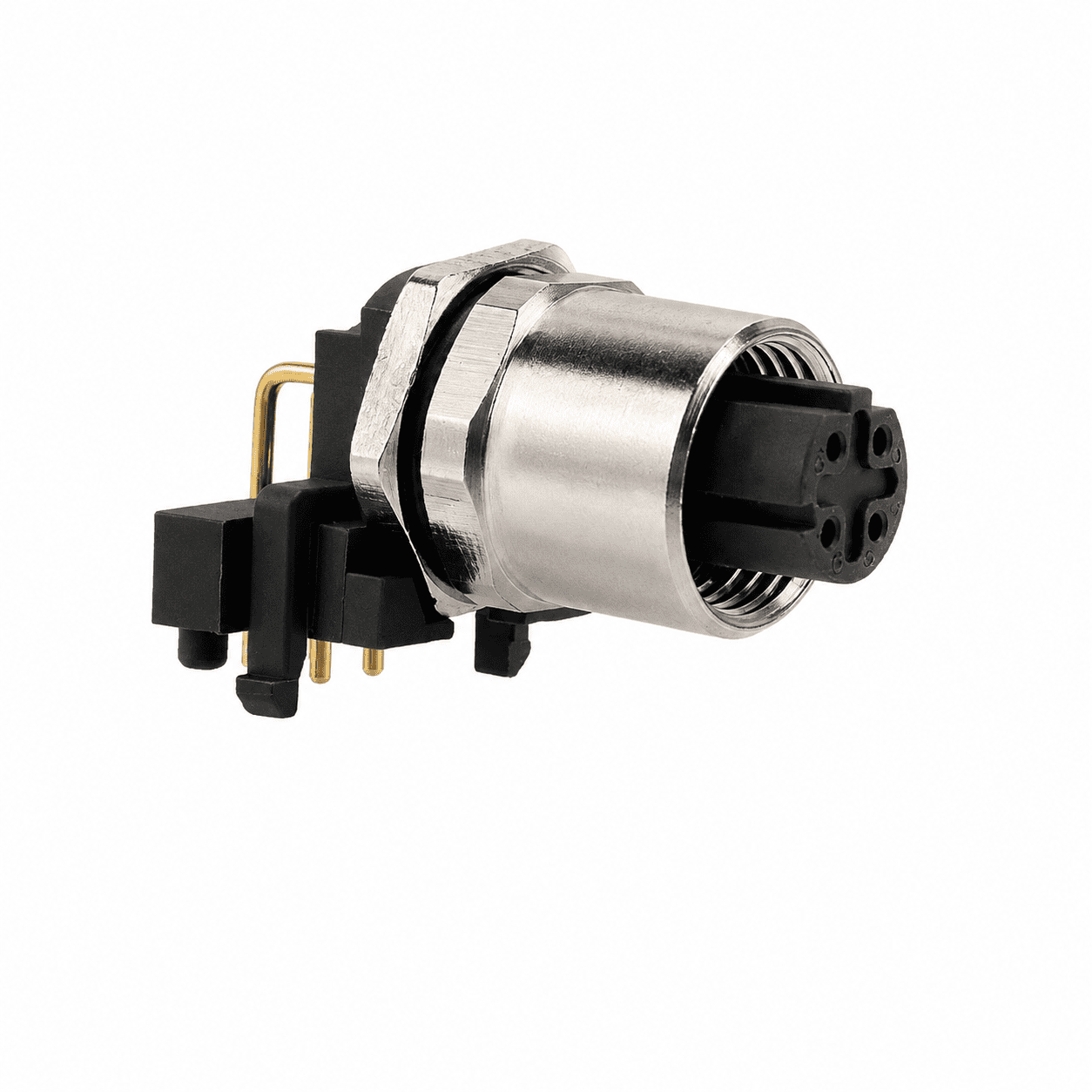

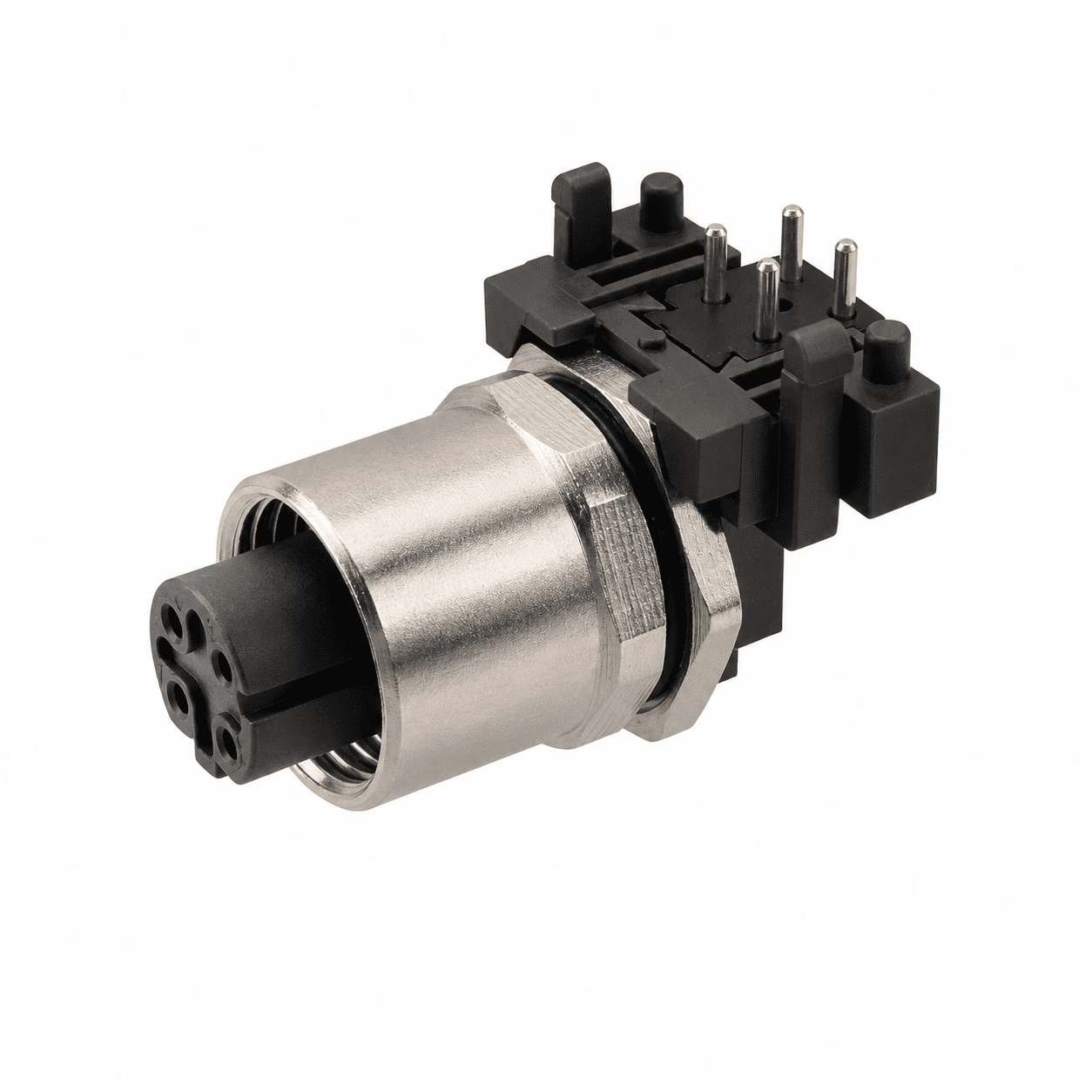

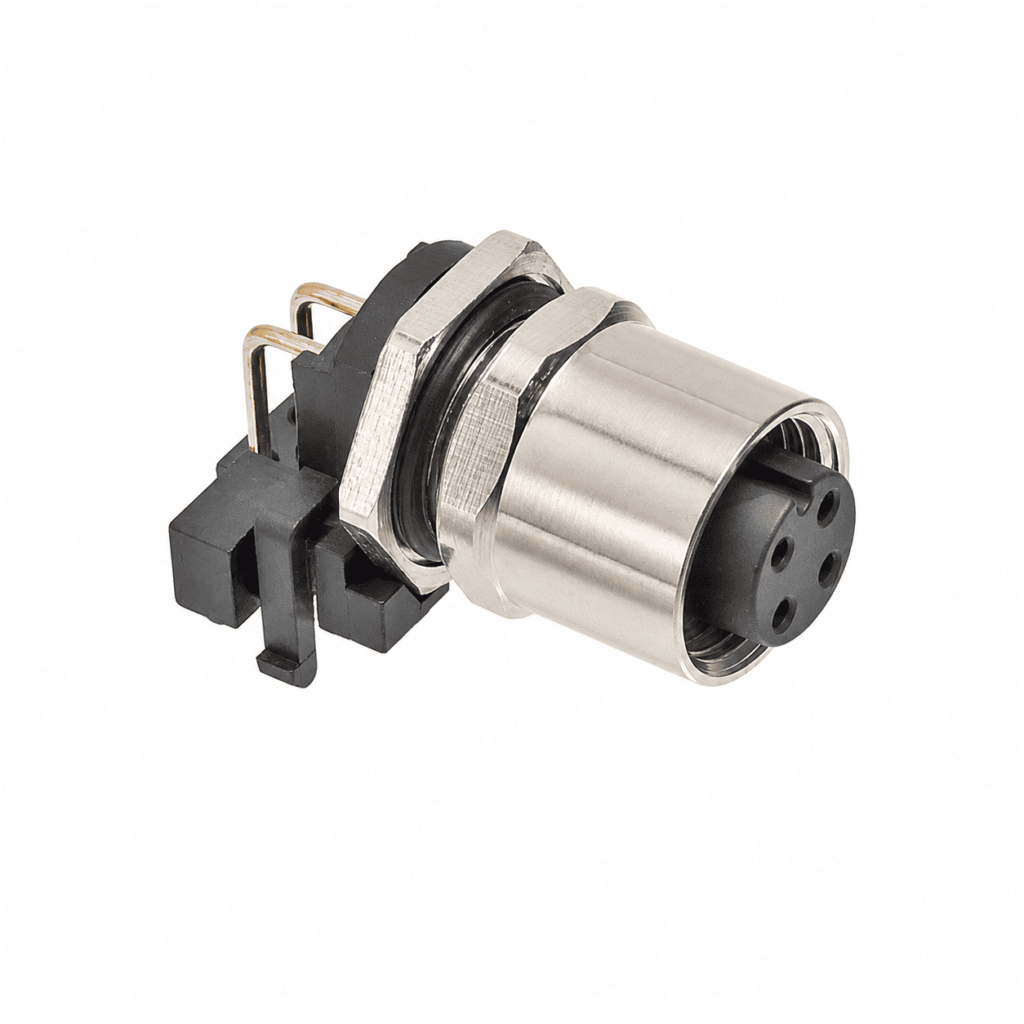

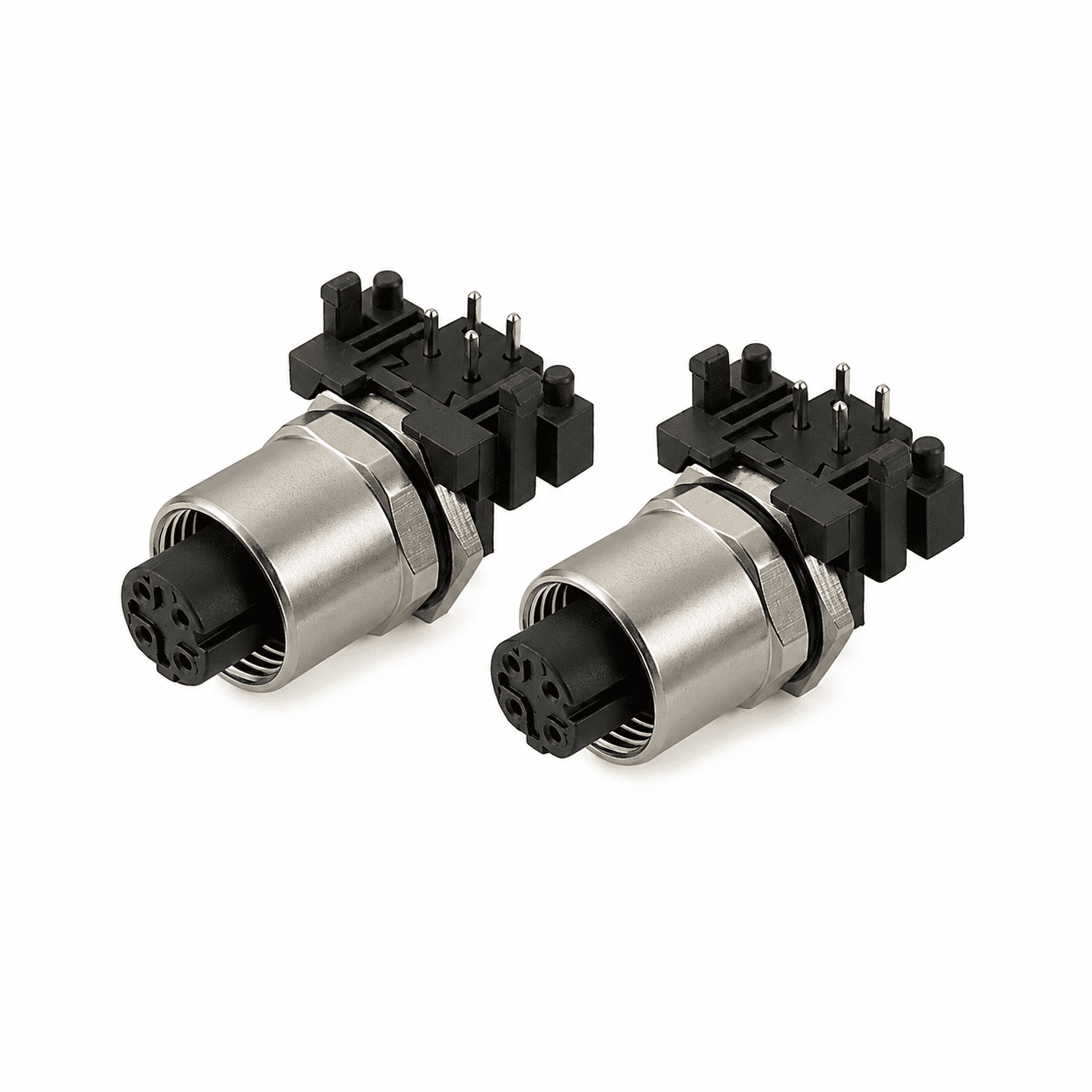

The M12 Signal Type Angled Female Back Mount Socket – PCB M12×1 is designed for direct PCB integration in industrial automation, control, and signal connection equipment.
Featuring an angled M12 female interface, back-mount panel structure, PCB termination, and M12×1 mounting thread, the socket provides a compact board-level connection solution for installations where PCB layout or enclosure space requires a 90-degree connector arrangement.
The back-mount design allows the receptacle to be installed from the rear side of the equipment panel, while the right-angle PCB contacts provide direct connection to the printed circuit board without additional cable wiring.
Grounded and ungrounded versions are available, together with multiple A-coded, B-coded, and D-coded contact configurations for industrial sensors, actuators, controllers, and other signal applications.
